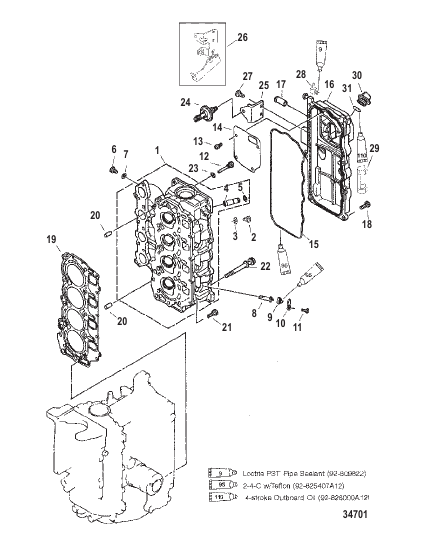

CYLINDER HEAD
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 825034A8 |
ГОЛОВКА ЦИЛИНДРА В СБОРЕ CYLINDER HEAD ASSEMBLY |
1 | superseded |
| - | 832013A96 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| - | 822775A97 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | superseded |
| - | 822775A98 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (BIGFOOT) POWERHEAD ASSEMBLY (BIGFOOT) |
1 | discontinued |
| 1 | 825034A9 |
ГОЛОВКА ЦИЛИНДРА В СБОРЕ CYLINDER HEAD ASSEMBLY |
1 | discontinued |
| 10 | 826888M |
КРЫШКА COVER |
4 | discontinued |
| 11 | 40011128 |
ВИНТ (M6 x 20), нержавеющая сталь SCREW (M6 x 20) Stainless Steel |
4 | superseded |
| 12 | 827607 |
БОЛТ BOLT |
1 | discontinued |
| 13 | 4005785 |
ВИНТ (M4 x 10) SCREW (M4 x 10) |
4 | |
| 14 | 825055 |
КРЫШКА COVER |
1 | discontinued |
| 15 | 825056 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 16 | 8250534 |
КРЫШКА [0G590000] & Up COVER [0G590000] & Up |
1 | discontinued |
| 16 | 8250532 |
КРЫШКА [0G589999] & Below COVER [0G589999] & Below |
1 | superseded |
| 17 | 825054 |
ТРУБА САПУНА BREATHER PIPE |
1 | discontinued |
| 18 | 40011128 |
ВИНТ (M6 x 20), нержавеющая сталь SCREW (M6 x 20) Stainless Steel |
7 | superseded |
| 19 | 825032 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 2 | 83124714 |
БОЛТ BOLT |
4 | discontinued |
| 20 | 825010 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 21 | 82500925 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
5 | superseded |
| 22 | 82503395 |
ВИНТ (M9 x 95) SCREW (M9 x 95) |
10 | discontinued |
| 23 | 827610 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 24 | 826060 |
ДИАФРАГМА DIAPHRAGM |
1 | discontinued |
| 25 | 828528 |
КРОНШТЕЙН (БЕЗ РУКОЯТКИ) BRACKET (NON HANDLE) |
1 | discontinued |
| 26 | 830294 |
КРОНШТЕЙН (РУКОЯТКА) BRACKET (HANDLE) |
1 | superseded |
| 27 | 40011126 |
ВИНТ (M6 x 13), нержавеющая сталь SCREW (M6 x 13) Stainless Steel |
2 | |
| 28 | 62910 |
КОЛЕНЧАТЫЙ (.125-27) ELBOW (.125-27) |
1 | superseded |
| 29 | 8266241 |
ЗАЖИМ CLAMP |
1 | |
| 3 | 831246 |
ШАЙБА Уплотнение WASHER Sealing |
4 | discontinued |
| 30 | 825490 |
ПРОБКА PLUG |
1 | superseded |
| 31 | 825492 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | superseded |
| 4 | 825037 |
НАПРАВЛЯЮЩАЯ GUIDE |
8 | superseded |
| 5 | 825038 |
СТОПОРНОЕ ПРУЖИННОЕ КОЛЬЦО CIRCLIP |
8 | discontinued |
| 6 | 84088M |
ВИНТ (M6 x 10) SCREW (M6 x 10) |
4 | discontinued |
| 7 | 827610 |
ПРОКЛАДКА GASKET |
4 | discontinued |
| 8 | 826887M |
АНОД ANODE |
4 | |
| 9 | 825040 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 |
