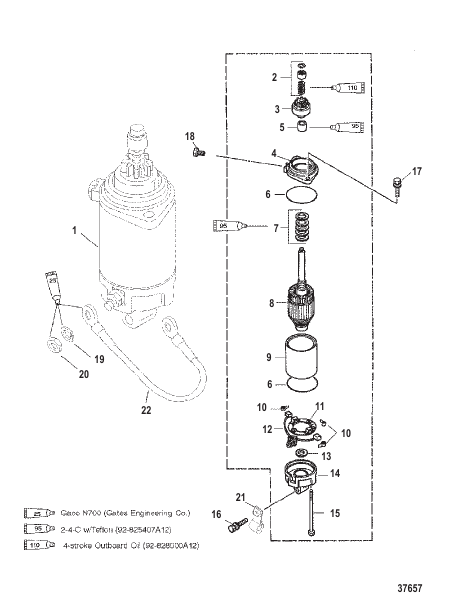

STARTER MOTOR (S/N-0G472132 AND BELOW)
Parts (22)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 825095 |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | discontinued |
| 10 | 809553 |
ПРУЖИНА SPRING |
3 | discontinued |
| 11 | 809552 |
ДЕРЖАТЕЛЬ В СБОРЕ Щетка HOLDER ASSEMBLY Brush |
1 | discontinued |
| 12 | 809551 |
НАБОР ЩЕТОК BRUSH SET |
1 | discontinued |
| 13 | 8095481 |
ШАЙБА WASHER |
1 | discontinued |
| 14 | 809554 |
КРОНШТЕЙН Задний BRACKET Rear |
1 | discontinued |
| 15 | 809558 |
БОЛТ BOLT |
2 | discontinued |
| 16 | 40011153 |
ВИНТ (M8 x 45), нержавеющая сталь SCREW (M8 x 45) Stainless Steel |
1 | |
| 17 | 8240717 |
ВИНТ (M8 x 30) SCREW (M8 x 30) |
2 | |
| 18 | 81893420 |
ВИНТ (M8 x 20) SCREW (M8 x 20) |
1 | |
| 19 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
1 | |
| 2 | 809556 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 20 | 64015 |
ГАЙКА (0.250-20) NUT (.250-20) |
1 | |
| 21 | 814634 |
ЗАЖИМ CLAMP |
1 | |
| 22 | 93388A6 |
КАБЕЛЬ В СБОРЕ (5.500") CABLE ASSEMBLY (5.500 Inches) |
1 | |
| 3 | 809555 |
ПЕРЕДАЧА GEAR |
1 | superseded |
| 4 | 809557 |
КРОНШТЕЙН Передний BRACKET Front |
1 | discontinued |
| 5 | 809588 |
МЕТАЛЛ METAL |
1 | discontinued |
| 6 | 809550 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | discontinued |
| 7 | 809548 |
КОМПЛЕКТ ШАЙБ WASHER KIT |
1 | discontinued |
| 8 | 809547 |
ЯКОРЬ ARMATURE |
1 | discontinued |
| 9 | 809549 |
СТАТОР STATOR |
1 | discontinued |
