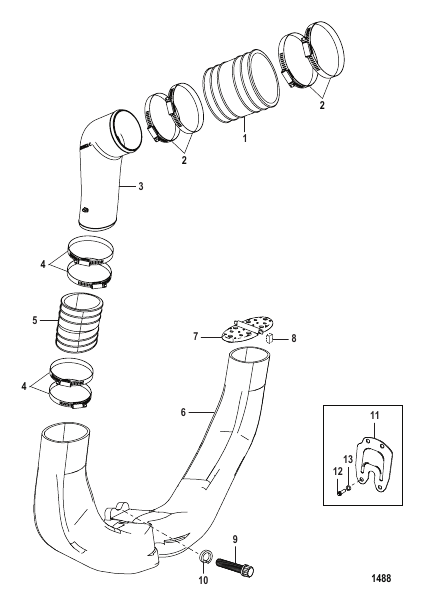

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 44348T |
ТРУБА THRU PROP EXHAUST TUBE THRU PROP EXHAUST |
2 | superseded |
| 10 | 41471 |
СТОПОРНАЯ ШАЙБА (0.375) THRU PROP EXHAUST LOCKWASHER (.375) THRU PROP EXHAUST |
4 | |
| 11 | 97350T1 |
ПЛАСТИНА THRU TRANSOM EXHAUST PLATE THRU TRANSOM EXHAUST |
1 | superseded |
| 12 | 98794 |
ВИНТ (0.375-16 x 1.00) THRU TRANSOM EXHAUST SCREW (.375-16 x 1.00) THRU TRANSOM EXHAUST |
4 | superseded |
| 13 | 41471 |
СТОПОРНАЯ ШАЙБА (0.375) THRU TRANSOM EXHAUST LOCKWASHER (.375) THRU TRANSOM EXHAUST |
4 | |
| 2 | 815504372 |
ЗАЖИМ Червячная передача THRU PROP EXHAUST CLAMP Worm Gear THRU PROP EXHAUST |
8 | |
| 3 | 11086T |
КОЛЕНЧАТЫЙ (PORT) THRU PROP EXHAUST ELBOW (PORT) THRU PROP EXHAUST |
1 | |
| 3 | 14343T |
КОЛЕНЧАТЫЙ (STARBOARD) THRU PROP EXHAUST ELBOW (STARBOARD) THRU PROP EXHAUST |
1 | |
| 4 | 815504372 |
ЗАЖИМ Червячная передача THRU PROP EXHAUST CLAMP Worm Gear THRU PROP EXHAUST |
8 | |
| 5 | 14358T |
ТРУБА THRU PROP EXHAUST TUBE THRU PROP EXHAUST |
2 | superseded |
| 6 | 807130A4 |
ТРУБА THRU PROP EXHAUST PIPE THRU PROP EXHAUST |
1 | superseded |
| 7 | 807166A1 |
ЗАСЛОНКА В СБОРЕ Вода THRU PROP EXHAUST SHUTTER ASSEMBLY Water THRU PROP EXHAUST |
2 | |
| 8 | 807167 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО THRU PROP EXHAUST GROMMET THRU PROP EXHAUST |
4 | superseded |
| 9 | 58640 |
ВИНТ (0.375-16 x 1.25) THRU PROP EXHAUST SCREW (.375-16 x 1.25) THRU PROP EXHAUST |
4 | superseded |
