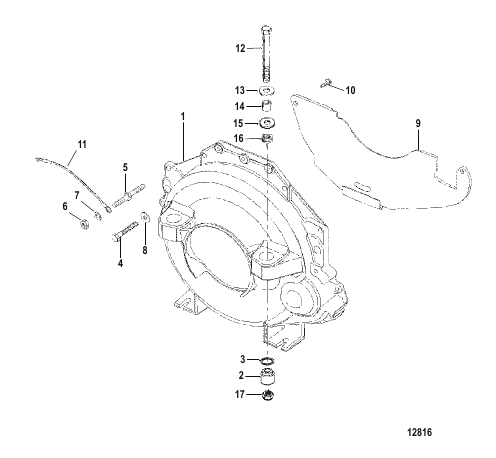

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 12675A5 |
КОРПУС В СБОРЕ Маховик HOUSING ASSEMBLY Flywheel |
1 | superseded |
| 10 | 76596 |
ВИНТ (0.250-20 x 1.250) (1/4-20 x 1-1/4") SCREW (.250-20 x 1.250) (1/4-20 X 1-1/4 IN.) |
2 | |
| 11 | 62826A6 |
КАБЕЛЬ В СБОРЕ Заземление (13.00"), черный CABLE ASSEMBLY Ground (13.00 Inches) Black |
1 | superseded |
| 12 | 97934 |
ВИНТ (0.500-20 x 5.370), специальный (1/2-20 x 5-1/4") SCREW (.500-20 x 5.370) Special (1/2-20 X 5-1/4 IN.) |
2 | superseded |
| 13 | 35777 |
ШАЙБА (0.5156 x 1.375 x 0.125), алюминий WASHER (.5156 x 1.375 x .125) Aluminum |
2 | |
| 14 | 99299 |
ПРОСТАВКА (0.520 x 0.870 x 0.630) SPACER (.520 x .870 x .630) |
2 | |
| 15 | 32834 |
ШАЙБА (0.9375 x 1.750 x 0.172) WASHER (.9375 x 1.750 x .172) |
2 | |
| 16 | 33734 |
СТОПОРНАЯ ШАЙБА (0.500) (1/2") LOCKWASHER (.500) (1/2 IN.) |
2 | |
| 17 | 99298 |
ГАЙКА (.500-20) (1/2-20) NUT (.500-20) (1/2-20) |
2 | superseded |
| 2 | 99297A1 |
ОПОРА В СБОРЕ Резина MOUNT ASSEMBLY Rubber |
2 | disc. |
| 3 | 99322 |
ПРОСТАВКА SPACER |
2 | |
| 4 | 37612 |
ВИНТ (0.375-16 x 1.250) (3/8-16 x 1-1/4") SCREW (.375-16 x 1.250) (3/8-16 X 1-1/4 IN.) |
3 | |
| 4 | 32132 |
ВИНТ (0.375-16 x 1.750) (3/8-16 x 1-3/4") SCREW (.375-16 x 1.750) (3/8-16 X 1-3/4 IN.) |
1 | |
| 5 | 64066 |
ШПИЛЬКА (0.375-16 x 2.750), специальный STUD (.375-16 x 2.750) Special |
2 | superseded |
| 6 | 32219 |
ГАЙКА (.375-16) (3/8-16) NUT (.375-16) (3/8-16) |
2 | |
| 7 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) (3/8") LOCKWASHER (.375) (3/8 IN.) |
2 | |
| 8 | 20572 |
ШАЙБА (0.390 x 0.750 x 0.093) WASHER (.390 x .750 x .093) |
1 | |
| 9 | 807260A2 |
КОМПЛЕКТ КРЫШЕК Маховик COVER KIT Flywheel |
1 |
