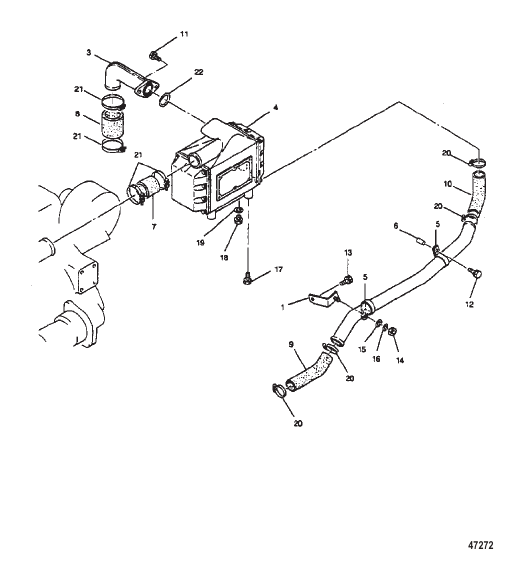

INTERCOOLER SYSTEM
Parts (22)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 832691140 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 1 | 830234371 |
РУКАВ Водяной HOSE Water |
1 | discontinued |
| 10 | 830234430 |
РУКАВ Водяной HOSE Water |
1 | discontinued |
| 11 | 839108251 |
БОЛТ BOLT |
2 | discontinued |
| 12 | 839108501 |
БОЛТ BOLT |
1 | discontinued |
| 13 | 839108162 |
БОЛТ BOLT |
1 | discontinued |
| 14 | 830108070 |
ГАЙКА NUT |
1 | discontinued |
| 15 | 836008180 |
ШАЙБА Плоск. WASHER Flat |
1 | discontinued |
| 16 | 838008200 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 17 | 830110350 |
БОЛТ BOLT |
4 | discontinued |
| 18 | 834999994 |
ПРОБКА Слив PLUG Drain |
1 | discontinued |
| 19 | 835408180 |
ШАЙБА Уплотнитель WASHER Sealing |
1 | superseded |
| 2 | 834999982 |
ТРУБА Водяной PIPE Water |
1 | discontinued |
| 20 | 836504820 |
ЗАЖИМ CLAMP |
4 | discontinued |
| 21 | 836975103 |
ЗАЖИМ CLAMP |
4 | discontinued |
| 22 | 835154101 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 3 | 831133470 |
ТРУБА Впуск PIPE Intake |
1 | discontinued |
| 4 | 833001190 |
ПРОМЕЖУТОЧНЫЙ ОХЛАДИТЕЛЬ В СБОРЕ (См. стр. 50) INTERCOOLER ASSEMBLY (See Page 50) |
1 | discontinued |
| 5 | 839042660 |
ЗАЖИМ CLIP |
2 | discontinued |
| 6 | 830116160 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 7 | 830233363 |
РУКАВ Воздух HOSE Air |
1 | discontinued |
| 8 | 830233437 |
РУКАВ Воздух HOSE Air |
1 | discontinued |
