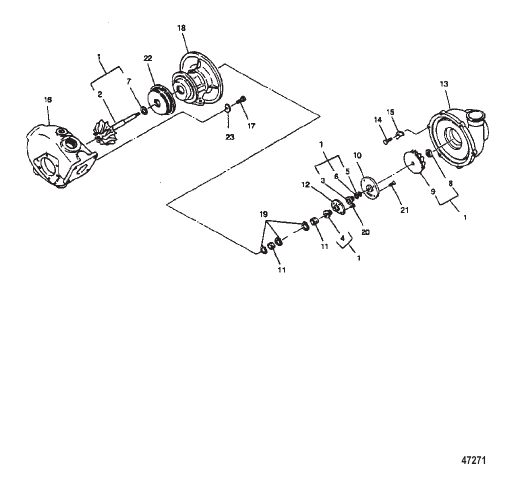

TURBOCHARGER ASSEMBLY
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 831001350 |
ТУРБОНАГНЕТАТЕЛЬ В СБОРЕ TURBOCHARGER ASSEMBLY |
1 | discontinued |
| 1 | 831501140 |
РОТОР В СБОРЕ ROTOR ASSEMBLY |
1 | discontinued |
| 10 | 831271160 |
ПЛАСТИНА Назад PLATE Back |
1 | discontinued |
| 11 | 831311160 |
ПОДШИПНИК BEARING |
2 | discontinued |
| 12 | 831431140 |
ПОДШИПНИК Упор BEARING Thrust |
1 | discontinued |
| 13 | 831141130 |
КОРОБКА Вентилятор CASE Blower |
1 | discontinued |
| 14 | 831451240 |
БОЛТ BOLT |
6 | discontinued |
| 15 | 831231220 |
ПЛАСТИНА PLATE |
6 | discontinued |
| 16 | 831111440 |
КОРОБКА Турбина CASE Turbine |
1 | discontinued |
| 17 | 831451190 |
БОЛТ BOLT |
6 | superseded |
| 18 | 831211260 |
КОРОБКА Подшипник CASE Bearing |
1 | discontinued |
| 19 | 831321110 |
КОЛЬЦО Форсунка RING Nozzle |
3 | discontinued |
| 2 | 831151320 |
РОТОР ROTOR |
1 | discontinued |
| 20 | 831361120 |
ВИНТ SCREW |
4 | superseded |
| 21 | 831361130 |
ВИНТ SCREW |
21 | discontinued |
| 22 | 831411140 |
ЗАЩИТНОЕ ПРИСПОСОБЛЕНИЕ Теплообменник PROTECTOR Heat |
1 | discontinued |
| 23 | 831231270 |
ПЛАСТИНА PLATE |
6 | discontinued |
| 3 | 831161080 |
ОТРАЖАТЕЛЬ Масло THROWER Oil |
1 | discontinued |
| 4 | 831221080 |
ВТУЛКА BUSHING |
1 | discontinued |
| 5 | 831241200 |
УПЛОТНЕНИЕ Кольцо SEAL Ring |
1 | discontinued |
| 6 | 831241190 |
УПЛОТНЕНИЕ Кольцо SEAL Ring |
1 | discontinued |
| 7 | 831241270 |
УПЛОТНЕНИЕ Кольцо SEAL Ring |
1 | discontinued |
| 8 | 831171250 |
ГАЙКА NUT |
1 | discontinued |
| 9 | 831181200 |
КРЫЛЬЧАТКА Вентилятор IMPELLER Blower |
1 | discontinued |
