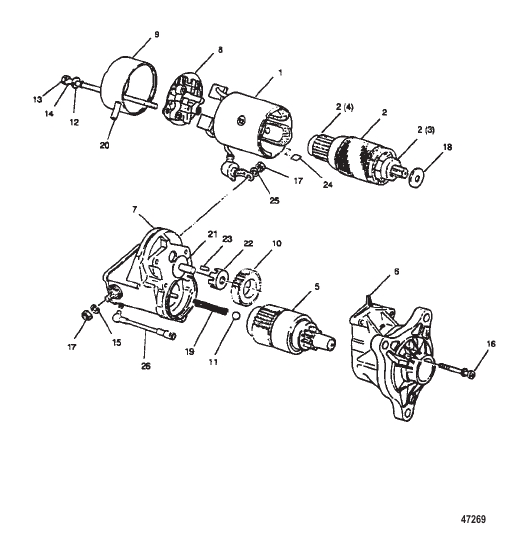

STARTER ASSEMBLY
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 831001562 |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | superseded |
| 1 | 831201310 |
ВИЛКА В СБОРЕ YOKE ASSEMBLY |
1 | discontinued |
| 10 | 832501040 |
ШЕСТЕРНЯ PINION |
1 | discontinued |
| 11 | 832621090 |
ДЕРЖАТЕЛЬ HOLDER |
1 | discontinued |
| 12 | 832191100 |
ШАЙБА WASHER |
2 | discontinued |
| 13 | 831121590 |
БОЛТ Корпус BOLT Housing |
2 | discontinued |
| 14 | 832191110 |
ШАЙБА WASHER |
5 | discontinued |
| 15 | 832191120 |
ШАЙБА WASHER |
1 | discontinued |
| 16 | 831121600 |
БОЛТ Корпус BOLT Housing |
3 | discontinued |
| 17 | 831010060 |
ГАЙКА NUT |
2 | discontinued |
| 18 | 831371080 |
ВОЙЛОЧН. Масло FELT Oil |
1 | discontinued |
| 19 | 832361030 |
ПРУЖИНА Электромагнит SPRING Solenoid |
1 | discontinued |
| 2 | 831601380 |
ЯКОРЬ В СБОРЕ ARMATURE ASSEMBLY |
1 | discontinued |
| 20 | 831541090 |
ЧЕХОЛ Электромагнит BOOT Solenoid |
1 | discontinued |
| 21 | 831681280 |
КОЛЬЦО Фиксатор RING Retainer |
1 | discontinued |
| 22 | 831681290 |
КОЛЬЦО Фиксатор RING Retainer |
1 | discontinued |
| 23 | 832261020 |
РОЛИК Муфта сцепления ROLLER Clutch |
5 | discontinued |
| 24 | 832661280 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 25 | 832191130 |
ШАЙБА WASHER |
1 | discontinued |
| 26 | 831391160 |
ВВОДНОЙ ПРОВОД LEADWIRE |
1 | discontinued |
| 3 | 832521190 |
ПОДШИПНИК BEARING |
1 | discontinued |
| 4 | 832521200 |
ПОДШИПНИК BEARING |
1 | discontinued |
| 5 | 830111260 |
МУФТА СЦЕПЛЕНИЯ Привод стартера CLUTCH Starter Drive |
1 | discontinued |
| 6 | 831151530 |
КОРПУС HOUSING |
1 | discontinued |
| 7 | 831501640 |
ЭЛЕКТРОМАГНИТ Стартер SOLENOID Starter |
1 | discontinued |
| 8 | 831401220 |
ДЕРЖАТЕЛЬ Щетка HOLDER Brush |
1 | discontinued |
| 9 | 831301320 |
РАМА В СБОРЕ FRAME ASSEMBLY |
1 | discontinued |
| NS | 817193 |
ЧЕХОЛ Изоляционный BOOT Insulating |
1 | discontinued |
