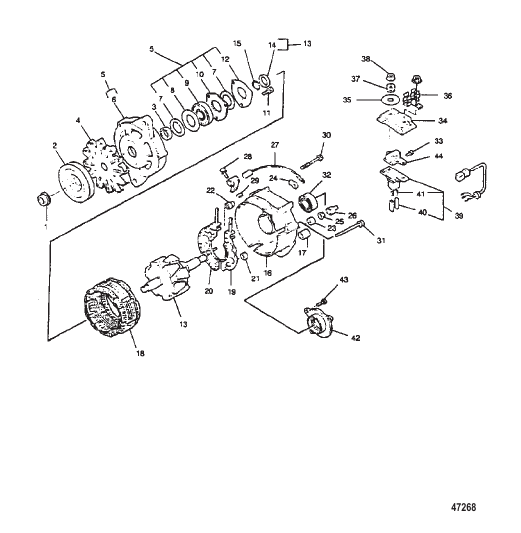

ALTERNATOR ASSEMBLY
Parts (45)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 830401300 |
ГЕНЕРАТОР В СБОРЕ ALTERNATOR ASSEMBLY |
1 | discontinued |
| 1 | 833911030 |
ГАЙКА Шкив NUT Pulley |
1 | discontinued |
| 10 | 833121510 |
ПЛАСТИНА Фиксатор PLATE Retainer |
1 | discontinued |
| 11 | 833621090 |
БОЛТ BOLT |
3 | discontinued |
| 12 | 833151210 |
ВОЙЛОЧН. FELT |
1 | discontinued |
| 13 | 833301600 |
РОТОР В СБОРЕ ROTOR ASSEMBLY |
1 | discontinued |
| 14 | 834121150 |
ВТУЛКА COLLAR |
1 | discontinued |
| 15 | 833331030 |
КОЛЬЦО Проставка RING Spacer |
1 | discontinued |
| 16 | 833501880 |
КОРПУС В СБОРЕ HOUSING ASSEMBLY |
1 | discontinued |
| 17 | 833511060 |
ВТУЛКА BUSHING |
1 | discontinued |
| 18 | 834101710 |
СТАТОР STATOR |
1 | discontinued |
| 19 | 833561240 |
ВЫПРЯМИТЕЛЬ RECTIFIER |
1 | discontinued |
| 2 | 834311360 |
ШКИВ PULLEY |
1 | discontinued |
| 20 | 833531370 |
ДЕРЖАТЕЛЬ HOLDER |
1 | discontinued |
| 21 | 833871100 |
РАЗЪЕДИНИТЕЛЬ INSULATOR |
2 | discontinued |
| 22 | 833871090 |
РАЗЪЕДИНИТЕЛЬ INSULATOR |
2 | discontinued |
| 23 | 833871080 |
РАЗЪЕДИНИТЕЛЬ INSULATOR |
1 | discontinued |
| 24 | 833871140 |
РАЗЪЕДИНИТЕЛЬ INSULATOR |
1 | discontinued |
| 25 | 830105040 |
ГАЙКА Клемма NUT Terminal |
4 | discontinued |
| 26 | 833871190 |
РАЗЪЕДИНИТЕЛЬ INSULATOR |
2 | discontinued |
| 27 | 833541020 |
КОНДЕНСАТОР CONDENSER |
1 | discontinued |
| 28 | 838005120 |
БОЛТ BOLT |
1 | discontinued |
| 29 | 831006040 |
КОНТРГАЙКА LOCKNUT |
1 | discontinued |
| 3 | 834121140 |
ВТУЛКА COLLAR |
1 | discontinued |
| 30 | 833171480 |
БОЛТ BOLT |
2 | discontinued |
| 31 | 833171490 |
БОЛТ BOLT |
1 | discontinued |
| 32 | 830063023 |
ПОДШИПНИК BEARING |
1 | discontinued |
| 33 | 838304082 |
БОЛТ BOLT |
4 | discontinued |
| 34 | 833881150 |
КРЫШКА COVER |
1 | discontinued |
| 35 | 833871200 |
РАЗЪЕДИНИТЕЛЬ INSULATOR |
1 | discontinued |
| 36 | 834451170 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 37 | 833871120 |
РАЗЪЕДИНИТЕЛЬ INSULATOR |
1 | discontinued |
| 38 | 830105040 |
ГАЙКА NUT |
3 | discontinued |
| 39 | 833701280 |
ДЕРЖАТЕЛЬ В СБОРЕ HOLDER ASSEMBLY |
1 | discontinued |
| 4 | 834411150 |
ВЕНТИЛЯТОР FAN |
1 | discontinued |
| 40 | 833711160 |
ЩЕТКА BRUSH |
2 | superseded |
| 41 | 833721120 |
ПРУЖИНА Щетка SPRING Brush |
2 | discontinued |
| 42 | 833521060 |
КРЫШКА Щетка COVER Brush |
1 | discontinued |
| 43 | 833006201 |
ВИНТ SCREW |
3 | discontinued |
| 44 | 837001610 |
РЕГУЛЯТОР В СБОРЕ REGULATOR ASSEMBLY |
1 | discontinued |
| 5 | 833101470 |
РАМА В СБОРЕ Приводной конец FRAME ASSEMBLY Drive End |
1 | discontinued |
| 6 | 833111410 |
РАМА Приводной конец FRAME Drive End |
1 | discontinued |
| 7 | 833151180 |
ВОЙЛОЧН. FELT |
2 | discontinued |
| 8 | 833151190 |
ВОЙЛОЧН. FELT |
1 | discontinued |
| 9 | 838120122 |
ПОДШИПНИК BEARING |
1 | discontinued |
