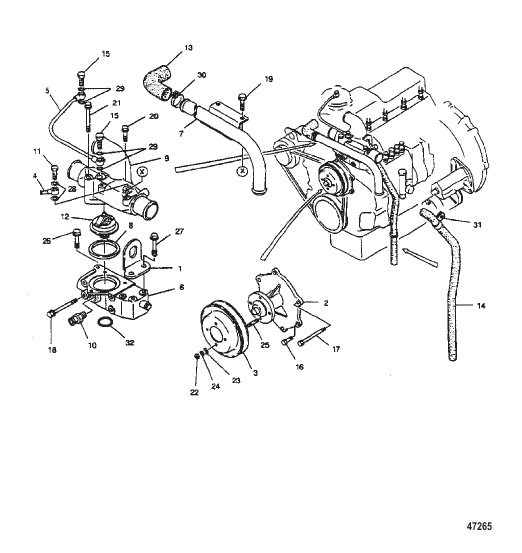

COOLING SYSTEM
Parts (32)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 832811580 |
ПОДВЕСНОЙ ПОДШИПНИК Двигатель HANGER Engine |
1 | discontinued |
| 10 | 833211020 |
СОЕДИНЕНИЕ JOINT |
1 | discontinued |
| 11 | 830124303 |
БОЛТ Кожух BOLT Banjo |
1 | discontinued |
| 12 | 830146177 |
ТЕРМОСТАТ THERMOSTAT |
1 | discontinued |
| 13 | 830234376 |
РУКАВ Охлаждающая жидкость HOSE Coolant |
1 | discontinued |
| 14 | 830236195 |
РУКАВ Сапун картера HOSE Crankcase Vent |
1 | discontinued |
| 15 | 832912187 |
БОЛТ Кожух BOLT Banjo |
2 | discontinued |
| 16 | 838108200 |
БОЛТ BOLT |
4 | discontinued |
| 17 | 838108950 |
БОЛТ BOLT |
2 | discontinued |
| 18 | 838108850 |
БОЛТ BOLT |
4 | discontinued |
| 19 | 839108161 |
БОЛТ BOLT |
2 | discontinued |
| 2 | 831002342 |
НАСОС В СБОРЕ Охлаждающая жидкость (см. стр. 33) PUMP ASSEMBLY Coolant (See Page 33) |
1 | superseded |
| 20 | 839108252 |
БОЛТ BOLT |
2 | discontinued |
| 21 | 839108851 |
БОЛТ BOLT |
1 | discontinued |
| 22 | 830106050 |
ГАЙКА NUT |
4 | discontinued |
| 23 | 836006140 |
ШАЙБА Плоск. WASHER Flat |
4 | discontinued |
| 24 | 838006150 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
4 | discontinued |
| 25 | 831106120 |
ШПИЛЬКА STUD |
4 | discontinued |
| 26 | 831110751 |
БОЛТ BOLT |
4 | discontinued |
| 27 | 831110801 |
БОЛТ BOLT |
2 | discontinued |
| 28 | 835420150 |
ШАЙБА Уплотнитель WASHER Sealing |
2 | discontinued |
| 29 | 835912111 |
ШАЙБА Уплотнитель WASHER Sealing |
4 | discontinued |
| 3 | 831732110 |
ШКИВ Насос PULLEY Pump |
1 | discontinued |
| 30 | 836504220 |
ЗАЖИМ CLAMP |
2 | superseded |
| 31 | 836926107 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 32 | 835131112 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | superseded |
| 4 | 832681900 |
ТРУБА Кожух PIPE Banjo |
1 | discontinued |
| 5 | 832812190 |
ТРУБА PIPE |
1 | discontinued |
| 6 | 833011162 |
КОРОБКА В СБОРЕ Термостат CASE ASSEMBLY Thermostat |
1 | discontinued |
| 7 | 833032341 |
КОЛЛЕКТОР Охлаждающая жидкость MANIFOLD Coolant |
1 | discontinued |
| 8 | 833251280 |
ПРОКЛАДКА Термостат GASKET Thermostat |
1 | discontinued |
| 9 | 833331621 |
КОЛЛЕКТОР Охлаждающая жидкость MANIFOLD Coolant |
1 | discontinued |
