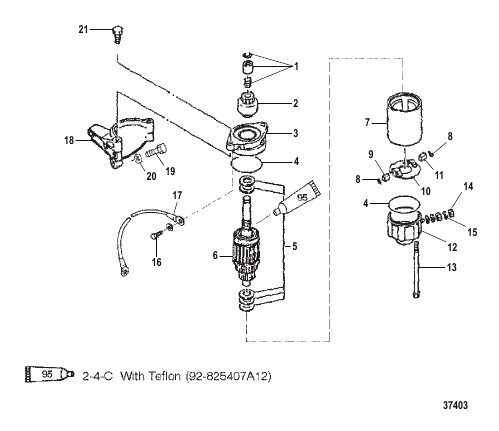

STARTER MOTOR ASSEMBLY
Parts (22)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 825991A2 |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | discontinued |
| 1 | 96360M |
КОМПЛЕКТ СТОПОРА Шестерня STOPPER KIT Pinion |
1 | discontinued |
| 10 | 96367M |
ДЕРЖАТЕЛЬ Щетка HOLDER Brush |
1 | discontinued |
| 11 | 96369M |
ЩЕТКА BRUSH |
1 | discontinued |
| 12 | 96370M |
КРЫШКА COVER |
1 | discontinued |
| 13 | 84929M |
БОЛТ BOLT |
2 | discontinued |
| 14 | 827204 |
ГАЙКА (M6) NUT (M6) |
1 | discontinued |
| 15 | 827205 |
ШАЙБА WASHER |
1 | discontinued |
| 16 | 827208 |
ВИНТ SCREW |
1 | discontinued |
| 17 | 88439A30 |
КАБЕЛЬ В СБОРЕ Аккумулятор – отрицательный полюс CABLE ASSEMBLY Battery - Negative |
1 | |
| 18 | 826008 |
КРОНШТЕЙН BRACKET |
1 | superseded |
| 19 | 4000354 |
ВИНТ (M8 x 30) SCREW (M8 x 30) |
3 | |
| 2 | 97694M |
ШЕСТЕРНЯ PINION |
1 | superseded |
| 20 | 4002317 |
ШАЙБА (8,90 x 17,0 x 1,9 нерж. сталь) WASHER (8.90 X 17.0 X 1.9SS) |
3 | |
| 21 | 827207 |
БОЛТ (M8 x 25) BOLT (M8 x 25) |
2 | discontinued |
| 3 | 814981M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 4 | 814982M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | discontinued |
| 5 | 96364M |
КОМПЛЕКТ ШАЙБ WASHER KIT |
1 | discontinued |
| 6 | 96365M |
ЯКОРЬ ARMATURE |
1 | discontinued |
| 7 | 96366M |
СТАТОР STATOR |
1 | discontinued |
| 8 | 84927M |
ПРУЖИНА SPRING |
2 | discontinued |
| 9 | 96368M |
ЩЕТКА BRUSH |
1 | discontinued |
