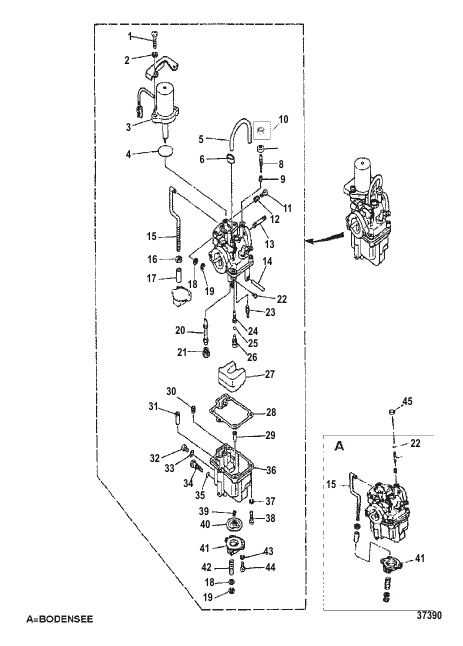

CARBURETOR
Parts (57)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 825601A1 |
КАРБЮРАТОР [0H013399] & Below CARBURETOR [0H013399] & Below |
1 | superseded |
| - | 827973A1 |
КАРБЮРАТОР (BODENSEE) [0H013400] THRU [0H014137] CARBURETOR (BODENSEE) [0H013400] THRU [0H014137] |
1 | superseded |
| - | 855107A1 |
КАРБЮРАТОР [0H014138] & Up CARBURETOR [0H014138] & Up |
1 | superseded |
| - | 828099 |
СТОП Дроссельная заслонка 8 BODENSEE STOP Throttle 8 BODENSEE |
1 | discontinued |
| - | 821285 |
ГАЙКА ТОЛКАТЕЛЯ 8 BODENSEE PUSH NUT 8 BODENSEE |
1 | |
| - | 827493M |
РЕМОНТНЫЙ КОМПЛЕКТ Карбюратор REPAIR KIT Carburetor |
1 | discontinued |
| 1 | 82980M |
ВИНТ SCREW |
2 | discontinued |
| 10 | 855237 |
ПРОБКА [0H014138] & Up PLUG [0H014138] & Up |
1 | discontinued |
| 11 | 826931M |
ВИНТ SCREW |
1 | discontinued |
| 12 | 82596M |
ПРУЖИНА Регулировка пилотного клапана SPRING Pilot Adjusting |
1 | discontinued |
| 13 | 825522 |
ШПИЛЬКА STUD |
2 | discontinued |
| 14 | 80451M |
ШТИФТ PIN |
1 | discontinued |
| 15 | 827485M |
ШТОК Ускорительный насос [0H013399] & Below ROD Accelerator Pump [0H013399] & Below |
1 | discontinued |
| 15 | 809127M |
ШТОК Ускорительный насос (BODENSEE) [0H013400] & Up ROD Accelerator Pump (BODENSEE) [0H013400] & Up |
1 | discontinued |
| 16 | 82537M |
ГАЙКА NUT |
1 | discontinued |
| 17 | 827486M |
ВАЛ Обогатитель SHAFT Choke |
1 | discontinued |
| 18 | 827488M |
ШАЙБА WASHER |
2 | discontinued |
| 19 | 827489M |
ЗАЖИМ CLIP |
2 | discontinued |
| 19 | 809123M |
ГЛАВНАЯ ФОРСУНКА BODENSEE MAIN NOZZLE BODENSEE |
1 | discontinued |
| 2 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 20 | 827467M |
ГЛАВНАЯ ФОРСУНКА [0H013400] & Up MAIN NOZZLE [0H013400] & Up |
1 | discontinued |
| 20 | 82625M |
ГЛАВНЫЙ ЖИКЛЕР BODENSEE MAIN JET BODENSEE |
1 | discontinued |
| 21 | 91741M |
ВОДОМЕТНЫЙ [0H013400] & Up JET [0H013400] & Up |
1 | discontinued |
| 21 | 809124M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО BODENSEE O-RING BODENSEE |
1 | |
| 22 | 809128M |
ВИНТ [0H013400] & Up SCREW [0H013400] & Up |
1 | discontinued |
| 23 | 14182M |
КЛАПАН VALVE |
1 | |
| 24 | 827465M |
ВОДОМЕТНЫЙ Направляющая JET Pilot |
1 | discontinued |
| 25 | 80960M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 26 | 827466M |
ПРОБКА Главная форсунка PLUG Main Nozzle |
1 | discontinued |
| 27 | 827470M |
ПОПЛАВОК FLOAT |
1 | discontinued |
| 28 | 827463M |
ПРОКЛАДКА Поплавковая камера GASKET Float Chamber |
1 | discontinued |
| 29 | 827474M |
ФИЛЬТР FILTER |
1 | discontinued |
| 3 | 827473M |
ЗАЛИВОЧНЫЙ НАСОС В СБОРЕ Карбюратор PRIMER ASSEMBLY Carburetor |
1 | superseded |
| 30 | 827475M |
ВОДОМЕТНЫЙ Система запуска JET Starting |
1 | discontinued |
| 31 | 827483M |
КЛАПАН Обогатитель VALVE Choke |
1 | discontinued |
| 32 | 827480M |
ВИНТ SCREW |
1 | discontinued |
| 33 | 827481M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 34 | 827477M |
ВИНТ Слив SCREW Drain |
1 | discontinued |
| 35 | 827476M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 36 | 827464M |
ПОПЛАВКОВАЯ КАМЕРА FLOAT BOWL |
1 | discontinued |
| 37 | 82206M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
4 | discontinued |
| 38 | 91738M |
ВИНТ SCREW |
4 | discontinued |
| 39 | 827479M |
ПРУЖИНА SPRING |
1 | discontinued |
| 4 | 827472M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | superseded |
| 40 | 827478M |
ДИАФРАГМА DIAPHRAGM |
1 | discontinued |
| 41 | 827484M |
КРЫШКА [0H013399] & Below COVER [0H013399] & Below |
1 | discontinued |
| 41 | 809126M |
КРЫШКА (BODENSEE) [0H013400] & Up COVER (BODENSEE) [0H013400] & Up |
1 | discontinued |
| 42 | 827487M |
ПРУЖИНА SPRING |
discontinued | |
| 43 | 82206M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 44 | 83509M |
ВИНТ (M4 x 10) SCREW (M4 x 10) |
2 | discontinued |
| 45 | 827737 |
УПЛОТНЕНИЕ Резина (BODENSEE) [0H013400] & Up SEAL Rubber (BODENSEE) [0H013400] & Up |
1 | discontinued |
| 5 | 827471M |
ТРУБА PIPE |
1 | discontinued |
| 6 | 827482M |
ЗАЖИМ CLAMP |
1 | discontinued |
| 7 | 827468M |
УПЛОТНЕНИЕ ИСП. С РЕГУЛИРУЕМЫМ ВИНТОМ SEAL USE WITH ADJUSTABLE SCREW |
1 | discontinued |
| 8 | 827469M |
ВИНТ Регулировка воздуха [0H013399] & Below SCREW Air Adjusting [0H013399] & Below |
1 | discontinued |
| 8 | 809125M |
ВИНТ Регулировка воздуха (BODENSEE) [0H013400] THRU [0H014137] SCREW Air Adjusting (BODENSEE) [0H013400] THRU [0H014137] |
1 | discontinued |
| 9 | 80437M |
ПРУЖИНА ИСП. С РЕГУЛИРУЕМЫМ ВИНТОМ SPRING USE WITH ADJUSTABLE SCREW |
1 | discontinued |
