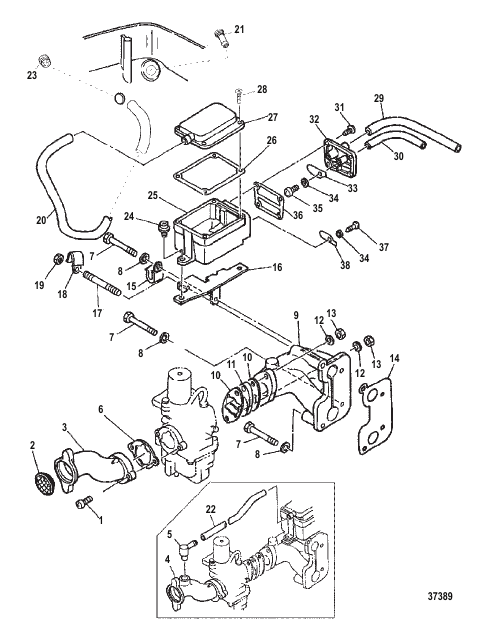

INTAKE
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 825847A95 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 826679 |
ВИНТ SCREW |
2 | discontinued |
| 10 | 825586 |
ПРОКЛАДКА Коллектор GASKET Manifold |
2 | discontinued |
| 11 | 825587 |
ПРОКЛАДКА Коллектор GASKET Manifold |
1 | discontinued |
| 12 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 13 | 82390M |
ГАЙКА (M6) NUT (M6) |
2 | discontinued |
| 14 | 825585 |
ПРОКЛАДКА Коллектор GASKET Manifold |
1 | discontinued |
| 15 | 28700 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 16 | 825600 |
ДЕРЖАТЕЛЬ Направляющая HOLDER Guide |
1 | discontinued |
| 17 | 827317 |
ШПИЛЬКА STUD |
1 | discontinued |
| 18 | 55098 |
J-ЗАЖИМ (ИСП. ПО ВОЗМОЖНОСТИ) J CLIP (USE WHERE APPLICABLE) |
1 | superseded |
| 19 | 400212 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
1 | |
| 2 | 825588 |
ЖАЛЮЗИ LOUVER |
1 | discontinued |
| 20 | 825597 |
ТРУБА Сапун [0H013399] & Below PIPE Breather [0H013399] & Below |
1 | discontinued |
| 21 | 813613 |
ФИТИНГ [0H013399] & Below FITTING [0H013399] & Below |
2 | |
| 21 | 813613 |
ФИТИНГ BODENSEE [0H013400] & Up FITTING BODENSEE [0H013400] & Up |
1 | |
| 22 | 827734 |
ТРУБА Сапун BODENSEE [0H013400] & Up PIPE Breather BODENSEE [0H013400] & Up |
1 | discontinued |
| 23 | 824473 |
ПРОБКА BODENSEE [0H013400] & Up PLUG BODENSEE [0H013400] & Up |
1 | |
| 24 | 825511 |
ВИНТ SCREW |
2 | discontinued |
| 25 | 825590 |
СЕПАРАТОР Масло SEPARATOR Oil |
1 | discontinued |
| 26 | 825592 |
ПРОКЛАДКА Корпус масляного уплотнения GASKET Oil Seal Housing |
1 | discontinued |
| 27 | 825591 |
СЕПАРАТОР Масло SEPARATOR Oil |
1 | discontinued |
| 28 | 84272M |
ВИНТ SCREW |
4 | discontinued |
| 29 | 825598 |
РУКАВ HOSE |
1 | discontinued |
| 3 | 825826 |
ВОРОНКА [0H013399] & Below FUNNEL [0H013399] & Below |
1 | discontinued |
| 30 | 825632 |
РУКАВ HOSE |
1 | discontinued |
| 31 | 84272M |
ВИНТ SCREW |
4 | discontinued |
| 32 | 825593 |
САПУН BREATHER |
1 | discontinued |
| 33 | 825594 |
САПУН BREATHER |
1 | discontinued |
| 34 | 82847M |
ШАЙБА WASHER |
2 | discontinued |
| 35 | 825515 |
ВИНТ SCREW |
1 | discontinued |
| 36 | 825596 |
ПРОКЛАДКА Сапун GASKET Breather |
1 | discontinued |
| 37 | 84272M |
ВИНТ SCREW |
1 | discontinued |
| 38 | 825595 |
САПУН BREATHER |
1 | discontinued |
| 4 | 827739 |
ВОРОНКА BODENSEE [0H013400] & Up FUNNEL BODENSEE [0H013400] & Up |
1 | discontinued |
| 5 | 825486 |
ТРУБА Сапун BODENSEE [0H013400] & Up PIPE Breather BODENSEE [0H013400] & Up |
1 | discontinued |
| 6 | 825589 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 7 | 4000334 |
ВИНТ (M6 x 45) SCREW (M6 x 45) |
3 | discontinued |
| 8 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
3 | superseded |
| 9 | 825584 |
КОЛЛЕКТОР MANIFOLD |
1 | discontinued |
