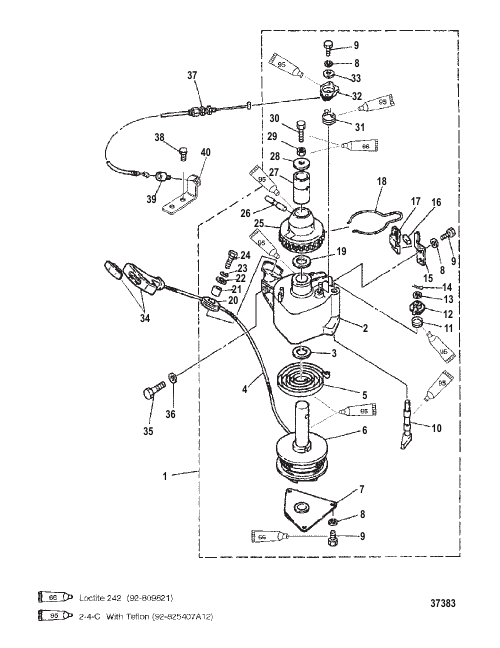

STARTER ASSEMBLY (MANUAL)
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 825635A1 |
СТАРТЕР В СБОРЕ Обратный ход STARTER ASSEMBLY Recoil |
1 | superseded |
| 10 | 827453M |
СТОПОР STOPPER |
1 | discontinued |
| 11 | 827456M |
ПРУЖИНА SPRING |
1 | discontinued |
| 12 | 827457M |
СОЕДИНИТЕЛЬ LINK |
1 | discontinued |
| 13 | 82213M |
ШАЙБА WASHER |
1 | discontinued |
| 14 | 43089M |
ШПЛИНТ COTTER PIN |
1 | discontinued |
| 15 | 827458M |
ПЛАСТИНА Привод PLATE Drive |
1 | discontinued |
| 16 | 827461M |
ДЕМПФЕР DAMPER |
1 | discontinued |
| 17 | 827460M |
КРЫШКА COVER |
1 | discontinued |
| 18 | 827449M |
ПРУЖИНА Ведущий диск SPRING Drive Plate |
1 | discontinued |
| 19 | 827447M |
УПОРНАЯ ШАЙБА THRUST WASHER |
1 | discontinued |
| 2 | 827444M |
КОРПУС HOUSING |
1 | discontinued |
| 20 | 11704M |
РОЛИК ROLLER |
1 | discontinued |
| 21 | 11705M |
ВТУЛКА BUSHING |
1 | discontinued |
| 22 | 11706M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 23 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 24 | 82405M |
БОЛТ BOLT |
1 | discontinued |
| 25 | 827448M |
ШКИВ PULLEY |
1 | discontinued |
| 26 | 825527 |
ШТИФТ PIN |
1 | discontinued |
| 27 | 827450M |
ВТУЛКА BUSHING |
1 | discontinued |
| 28 | 827462M |
ШАЙБА Стопор привода WASHER Drive Pawl |
1 | discontinued |
| 29 | 82383M |
ГАЙКА NUT |
1 | discontinued |
| 3 | 827451M |
УПОРНАЯ ШАЙБА THRUST WASHER |
1 | discontinued |
| 30 | 825528 |
БОЛТ BOLT |
1 | discontinued |
| 31 | 827455M |
ПРУЖИНА Возврат SPRING Return |
1 | discontinued |
| 32 | 827454M |
ARM ARM |
1 | discontinued |
| 33 | 827452M |
ШАЙБА WASHER |
1 | discontinued |
| 34 | 85174A1 |
РУКОЯТКА В СБОРЕ HANDLE ASSEMBLY |
1 | |
| 35 | 4000354 |
ВИНТ (M8 x 30) SCREW (M8 x 30) |
3 | |
| 36 | 4002317 |
ШАЙБА (8,90 x 17,0 x 1,9 нерж. сталь) WASHER (8.90 X 17.0 X 1.9SS) |
3 | |
| 37 | 825650 |
КАБЕЛЬ Рулевой механизм CABLE Steering |
1 | discontinued |
| 38 | 82239312 |
ВИНТ (M5 x 12) SCREW (M5 x 12) |
2 | |
| 39 | 825651 |
ШТАГ STAY |
1 | discontinued |
| 4 | 12066A9 |
ТРОС ROPE |
1 | superseded |
| 40 | 825801 |
ШТАГ STAY |
1 | discontinued |
| 5 | 827446M |
ПРУЖИНА Стартер SPRING Starter |
1 | discontinued |
| 6 | 827445M |
БАК Шкив DRUM Sheave |
1 | discontinued |
| 7 | 827459M |
КРЫШКА Корпус стартера COVER Starter Housing |
1 | discontinued |
| 8 | 82186M |
ШАЙБА WASHER |
6 | discontinued |
| 9 | 82417M |
БОЛТ BOLT |
6 | discontinued |
