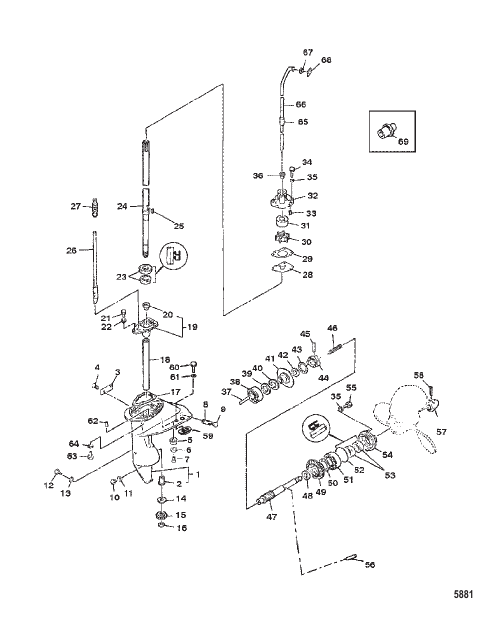

GEAR HOUSING ASSEMBLY
Parts (89)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 9835M |
КАРТЕР РЕДУКТОРА В СБОРЕ (КОРОТКИЙ) GEAR HOUSING ASSEMBLY (SHORT) |
1 | discontinued |
| - | 9836M |
КАРТЕР РЕДУКТОРА В СБОРЕ (ДЛИННЫЙ) GEAR HOUSING ASSEMBLY (LONG) |
1 | discontinued |
| - | 84181T |
РЕМОНТНЫЙ КОМПЛЕКТ Водяной насос REPAIR KIT Water Pump |
1 | |
| - | 95615M |
КОМПЛЕКТ НАСОСА Водяной насос – хромированный PUMP KIT Water Pump - Chrome |
OPT | discontinued |
| - | 84172M |
КОМПЛЕКТ ПРОКЛАДОК Нижний блок GASKET SET Lower Unit |
1 | discontinued |
| - | 95600M |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка GASKET SET Powerhead |
1 | discontinued |
| 1 | 9837M |
КАРТЕР РЕДУКТОРА В СБОРЕ (БАЗОВЫЙ) GEAR HOUSING ASSEMBLY (BASIC) |
1 | discontinued |
| 10 | 81924M |
ПРОБКА PLUG |
3 | discontinued |
| 11 | 81987 |
ПРОКЛАДКА GASKET |
3 | |
| 12 | 81752M |
ВИНТ SCREW |
1 | discontinued |
| 13 | 95610 |
ПРОКЛАДКА GASKET |
1 | |
| 14 | 80538M |
УПОРНАЯ ШАЙБА (0.8 ММ) THRUST WASHER (0.8MM) |
1 | discontinued |
| 14 | 80539M |
УПОРНАЯ ШАЙБА (1.0 ММ) THRUST WASHER (1.0MM) |
1 | discontinued |
| 14 | 80540M |
УПОРНАЯ ШАЙБА (1.2 ММ) THRUST WASHER (1.2MM) |
1 | discontinued |
| 14 | 80541M |
УПОРНАЯ ШАЙБА (1.4 ММ) THRUST WASHER (1.4MM) |
1 | discontinued |
| 15 | 82542M |
ПЕРЕДАЧА Шестерня GEAR Pinion |
1 | discontinued |
| 16 | 82332M |
КОЛЬЦО Защелка RING Snap |
1 | discontinued |
| 17 | 80535M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 18 | 81983M |
РУКАВ SLEEVE |
1 | discontinued |
| 19 | 805377T |
КОРПУС HOUSING |
1 | discontinued |
| 2 | 80536M |
ВТУЛКА BUSHING |
1 | discontinued |
| 20 | 80536M |
ВТУЛКА BUSHING |
1 | discontinued |
| 21 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | |
| 22 | 881379 |
ШАЙБА WASHER |
2 | superseded |
| 23 | 82228M |
УПЛОТНЕНИЕ Масло SEAL Oil |
2 | discontinued |
| 24 | 81086M |
ВЕДУЩИЙ ВАЛ (КОРОТКИЙ, 644 ММ) DRIVESHAFT (SHORT 644MM) |
1 | discontinued |
| 24 | 81087M |
ВЕДУЩИЙ ВАЛ (ДЛИННЫЙ 784 ММ) DRIVESHAFT (LONG 784MM) |
1 | discontinued |
| 25 | 81912M |
КЛЮЧ KEY |
1 | discontinued |
| 26 | 81071M |
ЭКСЦЕНТРИК ПЕРЕКЛЮЧАТЕЛЯ ПЕРЕДАЧ (КОРОТКИЙ, 311 ММ) SHIFT CAM (SHORT 311MM) |
1 | discontinued |
| 26 | 81072M |
ЭКСЦЕНТРИК ПЕРЕКЛЮЧАТЕЛЯ ПЕРЕДАЧ (ДЛИННЫЙ 451 ММ) SHIFT CAM (LONG 451MM) |
1 | discontinued |
| 27 | 15304M |
ЧЕХОЛ BOOT |
1 | discontinued |
| 28 | 81077M |
НАРУЖНАЯ ПЛАСТИНА OUTER PLATE |
1 | discontinued |
| 28 | 81078M |
НАРУЖНАЯ ПЛАСТИНА (ХРОМИРОВАННЫЙ) OUTER PLATE (CHROME) |
1 | discontinued |
| 29 | 81075 |
ПРОКЛАДКА GASKET |
1 | |
| 3 | 83091M |
КРЫШКА COVER |
1 | discontinued |
| 30 | 95611M |
КРЫЛЬЧАТКА IMPELLER |
1 | |
| 31 | 80902M |
ВСТАВКА INSERT |
1 | discontinued |
| 31 | 81076M |
ВСТАВКА (ХРОМИРОВАННЫЙ) INSERT (CHROME) |
1 | discontinued |
| 32 | 81074T |
КОРПУС Водяной насос HOUSING Water Pump |
1 | |
| 33 | 82357M |
ШТИФТ Штифт PIN Dowel |
2 | discontinued |
| 34 | 827043M |
БОЛТ BOLT |
3 | discontinued |
| 35 | 881379 |
ШАЙБА WASHER |
5 | superseded |
| 36 | 80532M |
РЕЗИНА RUBBER |
1 | discontinued |
| 37 | 81014M |
ПЛУНЖЕР PLUNGER |
1 | discontinued |
| 38 | 82291T |
ПОДШИПНИК BEARING |
1 | discontinued |
| 38 | 82291001 |
ПОДШИПНИК [ML-680K-000101] & Up BEARING [ML-680K-000101] & Up |
1 | discontinued |
| 39 | 80543M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА SHIM |
AR | discontinued |
| 4 | 95467M |
ВИНТ SCREW |
2 | discontinued |
| 40 | 80174M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА SHIM |
AR | discontinued |
| 40 | 80175M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (0.50 ММ) SHIM (0.50MM) |
AR | discontinued |
| 40 | 81809M |
ШАЙБА [ML-680K-000101] & Up WASHER [ML-680K-000101] & Up |
AR | discontinued |
| 41 | 80542M |
ПЕРЕДАЧА Передняя GEAR Forward |
1 | discontinued |
| 42 | 82560M |
ШАЙБА WASHER |
1 | discontinued |
| 43 | 82339M |
КОЛЬЦО RING |
1 | discontinued |
| 44 | 81089M |
МУФТА СЦЕПЛЕНИЯ CLUTCH |
1 | discontinued |
| 45 | 82362M |
ШТИФТ Штифт PIN Dowel |
1 | discontinued |
| 46 | 82077M |
ПРУЖИНА SPRING |
1 | discontinued |
| 46 | 82077001 |
ПРУЖИНА [ML-680K-000101] & Up SPRING [ML-680K-000101] & Up |
1 | discontinued |
| 47 | 95406M |
ВАЛ ГРЕБНОГО ВИНТА PROPELLER SHAFT |
1 | discontinued |
| 48 | 81824M |
УПОРНАЯ ШАЙБА THRUST WASHER |
1 | discontinued |
| 49 | 80544M |
ПЕРЕДАЧА Задняя GEAR Reverse |
1 | discontinued |
| 5 | 95609M |
АНОД ANODE |
1 | discontinued |
| 50 | 80258M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (0.10 ММ) SHIM (0.10MM) |
AR | superseded |
| 50 | 80259M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (0.30 мм) SHIM (0.30MM) |
AR | discontinued |
| 50 | 80260M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (0.50 ММ) SHIM (0.50MM) |
AR | discontinued |
| 51 | 8528001 |
ПОДШИПНИК BEARING |
1 | discontinued |
| 52 | 15377M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 53 | 82226M |
УПЛОТНЕНИЕ Масло SEAL Oil |
2 | |
| 54 | 82548M |
ПРОБКА CAP |
1 | discontinued |
| 55 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | |
| 56 | 81901M |
ШТИФТ Привод PIN Drive |
1 | discontinued |
| 57 | 80545M |
ГАЙКА ГРЕБНОГО ВИНТА PROP NUT |
1 | superseded |
| 58 | 82132M |
ШПЛИНТ COTTER PIN |
1 | discontinued |
| 59 | 18852M |
АНОД ANODE |
1 | discontinued |
| 6 | 827055M |
ШАЙБА WASHER |
1 | discontinued |
| 60 | 91686M |
БОЛТ BOLT |
2 | discontinued |
| 61 | 827055M |
ШАЙБА WASHER |
2 | discontinued |
| 62 | 82354M |
ШТИФТ PIN |
2 | discontinued |
| 63 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
4 | |
| 64 | 881379 |
ШАЙБА WASHER |
4 | superseded |
| 65 | 82021M |
РУКАВ SLEEVE |
1 | discontinued |
| 66 | 82547M |
ТРУБА Вода (КОРОТКИЙ, 373 ММ) TUBE Water (SHORT 373MM) |
1 | discontinued |
| 66 | 81079M |
ТРУБА Вода (ДЛИННЫЙ 513 ММ) TUBE Water (LONG 513MM) |
1 | discontinued |
| 67 | 81080M |
РЕЗИНА RUBBER |
1 | discontinued |
| 68 | 81081M |
УСТАНОВОЧНАЯ ПЛАСТИНА SET PLATE |
1 | discontinued |
| 69 | 95633M |
ПРОБКА PLUG |
OPT | superseded |
| 7 | 91772M |
БОЛТ BOLT |
1 | discontinued |
| 8 | 80246M |
ЗАЖИМ CLAMP |
1 | discontinued |
| 9 | 81920M |
ПРОБКА PLUG |
1 | discontinued |
