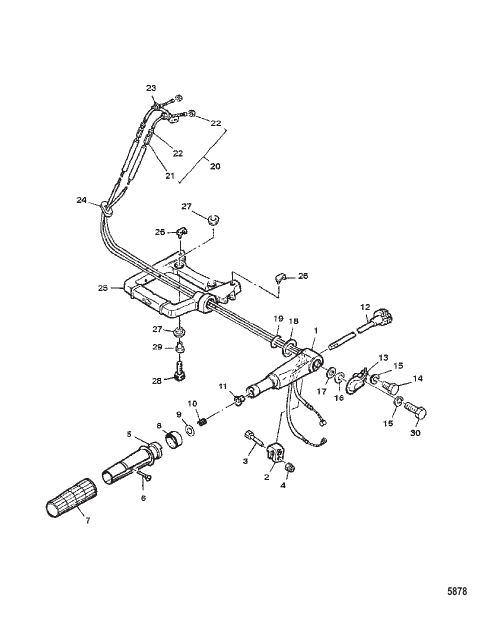

STEERING HANDLE
Parts (32)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 83093M |
РУКОЯТКА Рулевой механизм HANDLE Steering |
1 | discontinued |
| 10 | 82095M |
ПРУЖИНА SPRING |
1 | discontinued |
| 11 | 81945M |
ВТУЛКА BUSHING |
1 | discontinued |
| 12 | 81280M |
РЫЧАГ LEVER |
1 | |
| 13 | 95614M |
ПРОБКА CAP |
1 | discontinued |
| 14 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
1 | |
| 15 | 881379 |
ШАЙБА WASHER |
2 | superseded |
| 16 | 80506M |
ПРОСТАВКА (0.5 ММ) SPACER (0.5MM) |
1 | discontinued |
| 16 | 80507M |
ПРОСТАВКА (0.6 ММ) SPACER (0.6MM) |
1 | superseded |
| 16 | 80508M |
ПРОСТАВКА (0.8 ММ) SPACER (0.8MM) |
1 | discontinued |
| 17 | 82118M |
ПРОСТАВКА SPACER |
1 | discontinued |
| 18 | 82121M |
ПРОСТАВКА SPACER |
1 | discontinued |
| 19 | 82272M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 2 | 82895M |
ФРИКЦИОННАЯ КОЛОДКА FRICTION PIECE |
1 | discontinued |
| 20 | 95405M |
КАБЕЛЬ В СБОРЕ Дроссельная заслонка CABLE ASSEMBLY Throttle |
2 | |
| 21 | 81778M |
ГАЙКА NUT |
2 | discontinued |
| 22 | 81761M |
ГАЙКА NUT |
6 | discontinued |
| 23 | 81037M |
ШТАГ STAY |
1 | discontinued |
| 24 | 81373M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 25 | 81054M |
КРОНШТЕЙН Рулевой механизм BRACKET Steering |
1 | discontinued |
| 26 | 80510M |
ПРОСТАВКА SPACER |
2 | discontinued |
| 27 | 80515M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | discontinued |
| 28 | 804159 |
БОЛТ (M8 x 35) BOLT (M8 x 35) |
2 | discontinued |
| 29 | 82956M |
ВТУЛКА BUSHING |
2 | discontinued |
| 3 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
1 | |
| 30 | 827043M |
БОЛТ BOLT |
1 | discontinued |
| 4 | 83056M |
ГАЙКА NUT |
1 | discontinued |
| 5 | 80504M |
РУКОЯТКА GRIP |
1 | discontinued |
| 6 | 811916M |
ВИНТ SCREW |
1 | discontinued |
| 7 | 80509M |
РЕЗИНА RUBBER |
1 | discontinued |
| 8 | 95606M |
ИНДИКАТОР INDICATOR |
1 | discontinued |
| 9 | 82220M |
ШАЙБА WASHER |
1 | discontinued |
