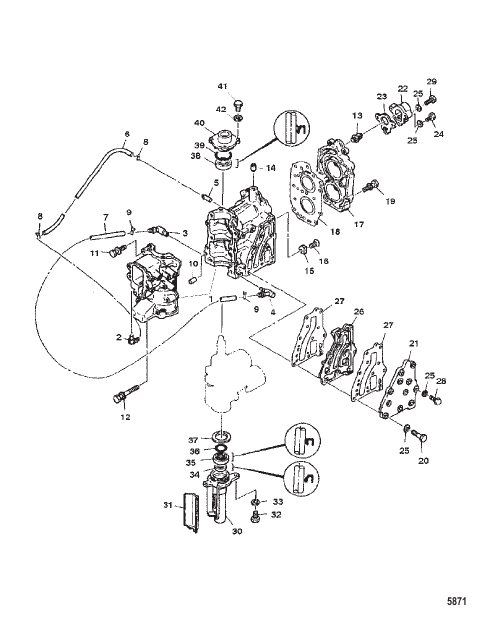

CRANKCASE AND CYLINDER HEAD
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 827167M |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | discontinued |
| - | 95600M |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка GASKET SET Powerhead |
1 | discontinued |
| 1 | 827168M |
КАРТЕР CRANKCASE |
1 | discontinued |
| 10 | 82359M |
ШТИФТ Штифт PIN Dowel |
2 | discontinued |
| 11 | 95592M |
БОЛТ BOLT |
8 | discontinued |
| 12 | 95593M |
БОЛТ BOLT |
2 | discontinued |
| 13 | 11919M |
ТЕРМОСТАТ THERMOSTAT |
1 | superseded |
| 14 | 14214M |
ШТИФТ Штифт PIN Dowel |
1 | discontinued |
| 15 | 84732M |
АНОД ANODE |
1 | discontinued |
| 16 | 95594M |
ВИНТ SCREW |
1 | discontinued |
| 17 | 8213M |
ГОЛОВКА ЦИЛИНДРА CYLINDER HEAD |
1 | discontinued |
| 18 | 95595M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 19 | 43092M |
БОЛТ (M6 x 14) BOLT (M6 x 14) |
13 | discontinued |
| 2 | 80727M |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
1 | discontinued |
| 20 | 804124 |
БОЛТ BOLT |
10 | discontinued |
| 21 | 95598M |
КРЫШКА Выхлоп (НАРУЖНАЯ ЧАСТЬ) COVER Exhaust (OUTER) |
1 | discontinued |
| 22 | 83241M |
КРЫШКА COVER |
1 | discontinued |
| 23 | 83242M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 24 | 82405M |
БОЛТ BOLT |
1 | discontinued |
| 25 | 82214M |
ШАЙБА WASHER |
14 | discontinued |
| 26 | 95596M |
КРЫШКА Выхлоп (ВНУТРЕННЯЯ ЧАСТЬ) COVER Exhaust (INNER) |
1 | discontinued |
| 27 | 95597 |
ПРОКЛАДКА GASKET |
2 | discontinued |
| 28 | 826957M |
БОЛТ BOLT |
1 | discontinued |
| 29 | 14262M |
БОЛТ BOLT |
2 | discontinued |
| 3 | 84661M |
ФИТИНГ Слив FITTING Drain |
1 | discontinued |
| 30 | 814493M |
КОРПУС (НИЖНЯЯ ЧАСТЬ) HOUSING (LOWER) |
1 | discontinued |
| 31 | 94762M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 32 | 826957M |
БОЛТ BOLT |
2 | discontinued |
| 33 | 881379 |
ШАЙБА WASHER |
2 | superseded |
| 34 | 82165M |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | discontinued |
| 35 | 18843M |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | discontinued |
| 36 | 95602M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 37 | 81841M |
ШАЙБА WASHER |
1 | discontinued |
| 38 | 14195M |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | discontinued |
| 39 | 82276M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 4 | 83326M |
ФИТИНГ FITTING |
1 | discontinued |
| 40 | 83246M |
КОРПУС (ВЕРХН.) HOUSING (UPPER) |
1 | discontinued |
| 41 | 852776 |
БОЛТ BOLT |
4 | discontinued |
| 42 | 881379 |
ШАЙБА WASHER |
4 | superseded |
| 5 | 80122M |
ФИТИНГ FITTING |
1 | discontinued |
| 6 | 811045M |
РУКАВ HOSE |
1 | discontinued |
| 7 | 82012M |
РУКАВ HOSE |
1 | discontinued |
| 8 | 82046M |
ЗАЖИМ CLAMP |
2 | discontinued |
| 9 | 98974M |
ЗАЖИМ CLIP |
2 | discontinued |
