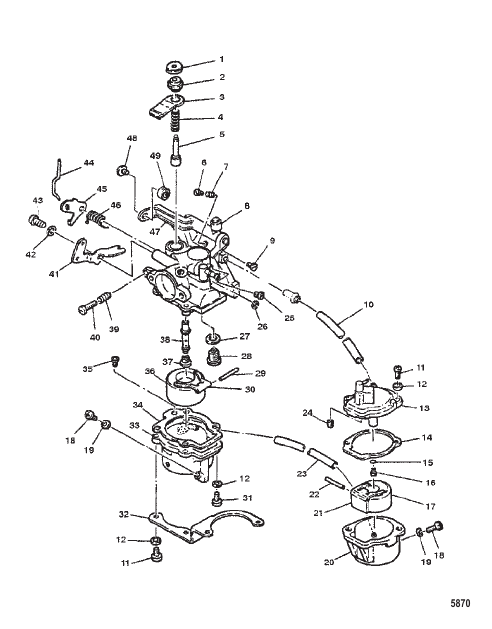

CARBURETOR
Parts (52)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 811009T |
КАРБЮРАТОР CARBURETOR |
1 | discontinued |
| - | 95600M |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка GASKET SET Powerhead |
1 | discontinued |
| - | 94756M |
РЕМОНТНЫЙ КОМПЛЕКТ Карбюратор REPAIR KIT Carburetor |
1 | discontinued |
| 1 | 80196M |
КРЫШКА COVER |
1 | discontinued |
| 10 | 97591M |
РУКАВ HOSE |
1 | discontinued |
| 11 | 83509M |
ВИНТ (M4 x 10) SCREW (M4 x 10) |
4 | discontinued |
| 12 | 82206M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
6 | discontinued |
| 13 | 94745M |
КРЫШКА COVER |
1 | discontinued |
| 14 | 94691M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 15 | 94695M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 16 | 94694M |
ВОДОМЕТНЫЙ Пилотный клапан (№50) JET Pilot (#50) |
1 | discontinued |
| 17 | 94696M |
ПОПЛАВОК FLOAT |
1 | discontinued |
| 18 | 811248M |
ВИНТ (M4 x 5) SCREW (M4 x 5) |
2 | discontinued |
| 19 | 13999M |
ПРОКЛАДКА GASKET |
2 | discontinued |
| 2 | 80197M |
ПРОБКА CAP |
1 | discontinued |
| 20 | 94744M |
КОРПУС BODY |
1 | discontinued |
| 21 | 94697M |
ARM ARM |
1 | discontinued |
| 22 | 811249M |
ШТИФТ Поплавок PIN Float |
1 | discontinued |
| 23 | 94746M |
РУКАВ HOSE |
1 | discontinued |
| 24 | 95430M |
СЕДЛО КЛАПАНА VALVE SEAT |
1 | discontinued |
| 25 | 94743M |
ВОДОМЕТНЫЙ Пилотный клапан (№48) JET Pilot (#48) |
1 | discontinued |
| 26 | 94722M |
КОЛЬЦО Стопор RING Retaining |
1 | discontinued |
| 27 | 80205M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 28 | 11930M |
СИДЕНЬЕ Клапан SEAT Valve |
1 | discontinued |
| 29 | 80451M |
ШТИФТ PIN |
1 | discontinued |
| 3 | 80199M |
ПЛАСТИНА PLATE |
1 | discontinued |
| 30 | 80203M |
ARM ARM |
1 | discontinued |
| 31 | 83509M |
ВИНТ (M4 x 10) SCREW (M4 x 10) |
2 | discontinued |
| 32 | 94747M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 33 | 94735M |
КОРПУС BODY |
1 | discontinued |
| 34 | 80740M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 35 | 83089M |
ВОДОМЕТНЫЙ (№70) (№70) JET (#70) (#70) |
1 | discontinued |
| 36 | 80450M |
ПОПЛАВОК FLOAT |
1 | discontinued |
| 37 | 94737M |
ВОДОМЕТНЫЙ Главн. (№68) JET Main (#68) |
1 | discontinued |
| 38 | 811010M |
ГЛАВНАЯ ФОРСУНКА MAIN NOZZLE |
1 | discontinued |
| 39 | 80193M |
ПРУЖИНА SPRING |
1 | discontinued |
| 4 | 80194M |
ПРУЖИНА SPRING |
1 | discontinued |
| 40 | 827147M |
ВИНТ SCREW |
1 | discontinued |
| 41 | 80198M |
РЫЧАГ LEVER |
1 | discontinued |
| 42 | 83115M |
ВТУЛКА COLLAR |
1 | discontinued |
| 43 | 83112M |
ВИНТ SCREW |
1 | discontinued |
| 44 | 94742M |
ШТОК ROD |
1 | discontinued |
| 45 | 94741M |
РЫЧАГ LEVER |
1 | discontinued |
| 46 | 80574M |
ПРУЖИНА SPRING |
1 | discontinued |
| 47 | 94740M |
ВАЛ SHAFT |
1 | discontinued |
| 48 | 826939M |
ВИНТ SCREW |
1 | discontinued |
| 49 | 83300M |
ФИКСАТОР RETAINER |
1 | discontinued |
| 5 | 80195M |
ПЛУНЖЕР PLUNGER |
1 | discontinued |
| 6 | 80573M |
ВИНТ SCREW |
1 | discontinued |
| 7 | 8095791 |
ПРУЖИНА SPRING |
1 | discontinued |
| 8 | 80227M |
ВТУЛКА BUSHING |
1 | discontinued |
| 9 | 811011M |
ВОДОМЕТНЫЙ Пилотный клапан (№110) JET Pilot (#110) |
1 | discontinued |
