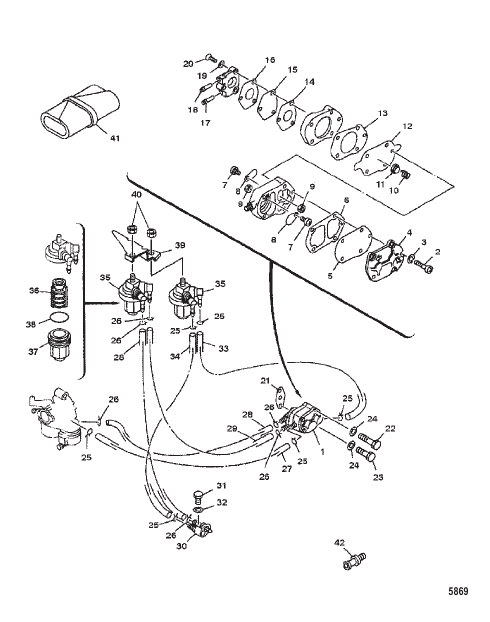

FUEL PUMP/FUEL LINES
Parts (43)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 95600M |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка GASKET SET Powerhead |
1 | discontinued |
| 1 | 804358T1 |
НАСОС В СБОРЕ Топливо PUMP ASSEMBLY Fuel |
1 | discontinued |
| 10 | 80610M |
ПРУЖИНА SPRING |
1 | discontinued |
| 11 | 80611M |
ПЛАСТИНА PLATE |
1 | discontinued |
| 12 | 80606M |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 13 | 80613 |
ПРОКЛАДКА GASKET |
1 | |
| 14 | 94718M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 15 | 804359 |
ДИАФРАГМА DIAPHRAGM |
1 | discontinued |
| 16 | 804360 |
ДИАФРАГМА DIAPHRAGM |
1 | discontinued |
| 17 | 94716M |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | discontinued |
| 18 | 826971M |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | discontinued |
| 19 | 94725M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
3 | discontinued |
| 2 | 804362 |
ВИНТ SCREW |
3 | superseded |
| 20 | 94724M |
ВИНТ SCREW |
3 | discontinued |
| 21 | 80757 |
ПРОКЛАДКА GASKET |
1 | |
| 22 | 84931M |
БОЛТ BOLT |
1 | discontinued |
| 23 | 858719 |
БОЛТ (M6 x 45) BOLT (M6 x 45) |
1 | superseded |
| 24 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 25 | 98974M |
ЗАЖИМ CLIP |
6 | discontinued |
| 26 | 82047M |
ЗАЖИМ CLAMP |
6 | discontinued |
| 27 | 82012M |
РУКАВ HOSE |
1 | discontinued |
| 28 | 82012M |
РУКАВ HOSE |
2 | discontinued |
| 29 | 94759M |
РУКАВ HOSE |
1 | discontinued |
| 3 | 82186M |
ШАЙБА WASHER |
3 | discontinued |
| 30 | 95604M |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | discontinued |
| 31 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
1 | |
| 32 | 881379 |
ШАЙБА WASHER |
1 | superseded |
| 33 | 804078 |
РУКАВ HOSE |
1 | discontinued |
| 34 | 82012M |
РУКАВ HOSE |
1 | discontinued |
| 35 | 826964T |
ФИЛЬТР Топливо FILTER Fuel |
2 | |
| 36 | 826965M |
ФИЛЬТР FILTER |
2 | superseded |
| 37 | 826967M |
КОЛПАЧОК CUP |
2 | discontinued |
| 38 | 826966M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | superseded |
| 39 | 804374 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 4 | 804361 |
КОРПУС HOUSING |
1 | superseded |
| 40 | 82382M |
ГАЙКА NUT |
2 | discontinued |
| 41 | 81669M |
КОМПЛЕКТ ИНСТРУМЕНТОВ TOOL KIT |
1 | superseded |
| 42 | 95633M |
ПРОБКА PLUG |
1 | superseded |
| 5 | 84141M |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 6 | 80614 |
ПРОКЛАДКА GASKET |
1 | |
| 7 | 41889M |
ВИНТ (M3 x 5) SCREW (M3 x 5) |
2 | discontinued |
| 8 | 41888M |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
2 | |
| 9 | 82537M |
ГАЙКА NUT |
2 | discontinued |
