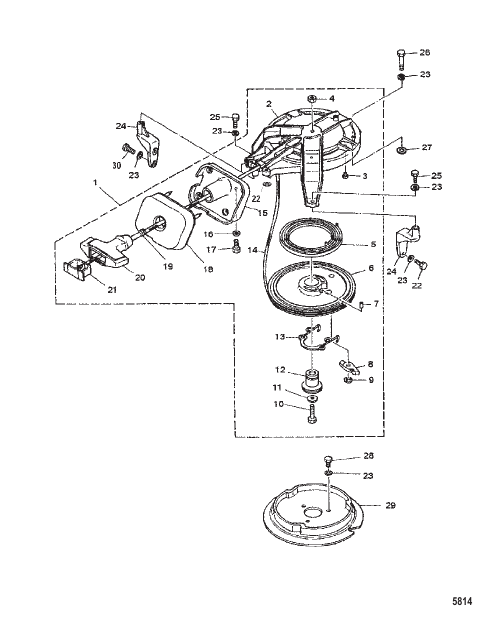

RECOIL STARTER
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 827169M |
СТАРТЕР В СБОРЕ Обратный ход STARTER ASSEMBLY Recoil |
1 | discontinued |
| 10 | 83285M |
БОЛТ BOLT |
1 | discontinued |
| 10 | 85277613 |
БОЛТ [ML-680K-000101] & Up BOLT [ML-680K-000101] & Up |
1 | discontinued |
| 11 | 81557M |
ШАЙБА WASHER |
1 | discontinued |
| 12 | 95590M |
ВАЛ SHAFT |
1 | discontinued |
| 13 | 95589M |
ПРУЖИНА SPRING |
1 | discontinued |
| 14 | 12066Q9 |
ТРОС ROPE |
1 | superseded |
| 15 | 96567M |
НАПРАВЛЯЮЩАЯ GUIDE |
1 | discontinued |
| 16 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 16 | 881379 |
ШАЙБА [ML-680K-000101] & Up WASHER [ML-680K-000101] & Up |
2 | superseded |
| 17 | 826957M |
БОЛТ BOLT |
2 | discontinued |
| 17 | 84058M |
БОЛТ (M6 x 20) [ML-680K-000101] & Up BOLT (M6 x 20) [ML-680K-000101] & Up |
2 | |
| 18 | 98967M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 19 | 98968M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 2 | 8398M |
КОРПУС Стартер HOUSING Starter |
1 | discontinued |
| 2 | 83981 |
КОРОБКА Стартер [ML-680K-000101] & Up CASE Starter [ML-680K-000101] & Up |
1 | discontinued |
| 20 | 814491A1 |
РУКОЯТКА HANDLE |
1 | discontinued |
| 21 | 814492M |
КРЫШКА COVER |
1 | discontinued |
| 22 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 23 | 881379 |
ШАЙБА WASHER |
10 | superseded |
| 24 | 83258M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 25 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | |
| 26 | 826958M |
БОЛТ (M6 x 35) BOLT (M6 x 35) |
1 | discontinued |
| 27 | 81804M |
ШАЙБА WASHER |
1 | discontinued |
| 28 | 91772M |
БОЛТ BOLT |
3 | discontinued |
| 29 | 41316M |
ШКИВ PULLEY |
1 | discontinued |
| 3 | 80604M |
ПРОБКА PLUG |
1 | discontinued |
| 30 | 852776 |
БОЛТ BOLT |
4 | discontinued |
| 4 | 8528163 |
ГАЙКА NUT |
1 | discontinued |
| 5 | 95588M |
ПРУЖИНА SPRING |
1 | discontinued |
| 6 | 83250M |
РОЛИК Стартер SHEAVE Starter |
1 | discontinued |
| 7 | 82157M |
ШТИФТ PIN |
1 | discontinued |
| 8 | 83252M |
СТОПОР PAWL |
1 | |
| 9 | 84895M |
КОЛЬЦО Защелка RING Snap |
1 | discontinued |
