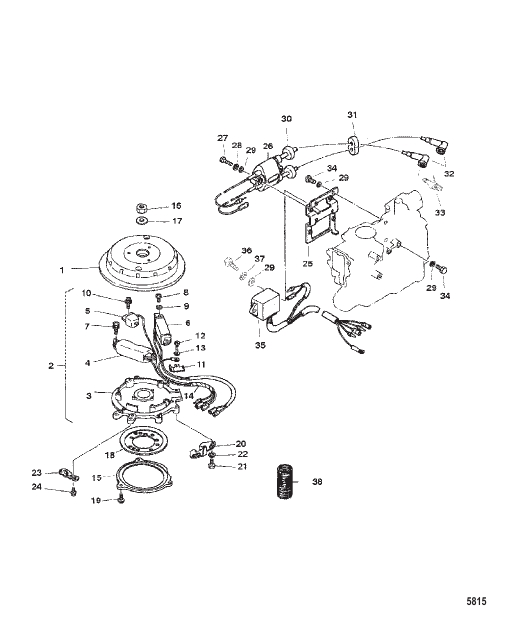

FLYWHEEL MAGNETO
Parts (38)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9303M |
РОТОР В СБОРЕ ROTOR ASSEMBLY |
1 | discontinued |
| 10 | 91691M |
ВИНТ SCREW |
1 | discontinued |
| 11 | 11437M |
ЗАЖИМ CLAMP |
1 | discontinued |
| 12 | 82500M |
ВИНТ (M4 x 8) SCREW (M4 x 8) |
1 | discontinued |
| 13 | 82206M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 14 | 11439M |
ПРОВОД WIRE |
1 | discontinued |
| 15 | 84667M |
ФИКСАТОР RETAINER |
1 | discontinued |
| 16 | 81769M |
ГАЙКА NUT |
1 | discontinued |
| 17 | 81805M |
ШАЙБА WASHER |
1 | discontinued |
| 18 | 84668M |
ФИКСАТОР RETAINER |
1 | discontinued |
| 19 | 827160M |
ВИНТ (M5 x 10) SCREW (M5 x 10) |
3 | discontinued |
| 2 | 827157M |
БАЗА В СБОРЕ BASE ASSEMBLY |
1 | discontinued |
| 20 | 827161M |
СТОПОР STOPPER |
1 | discontinued |
| 21 | 826957M |
БОЛТ BOLT |
2 | discontinued |
| 22 | 881379 |
ШАЙБА WASHER |
2 | superseded |
| 23 | 94731M |
КУЛАЧОК CAM |
1 | discontinued |
| 24 | 827162M |
БОЛТ BOLT |
2 | discontinued |
| 25 | 827163M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 26 | 95188T |
КАТУШКА Зажигание COIL Ignition |
1 | discontinued |
| 27 | 82405M |
БОЛТ BOLT |
2 | discontinued |
| 28 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 29 | 881379 |
ШАЙБА WASHER |
7 | superseded |
| 3 | 827158M |
БАЗА BASE |
1 | discontinued |
| 30 | 82069M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
2 | discontinued |
| 31 | 827164M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 32 | 63709A1 |
КОМПЛЕКТ ЧЕХЛА/КЛЕММ BOOT/TERMINAL KIT |
2 | |
| 33 | 82370M1 |
СВЕЧА ЗАЖИГАНИЯ SPARK PLUG |
2 | superseded |
| 34 | 84368M |
БОЛТ BOLT |
5 | discontinued |
| 35 | 827165M |
БЛОК CDI CDI UNIT |
1 | discontinued |
| 36 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | |
| 37 | 82213M |
ШАЙБА WASHER |
2 | discontinued |
| 38 | 827166M |
ТРУБА TUBE |
1 | discontinued |
| 4 | 41829M |
КАТУШКА В СБОРЕ Нагнетание воздуха COIL ASSEMBLY Charge |
1 | superseded |
| 5 | 41830M |
КАТУШКА В СБОРЕ Импульсный генератор COIL ASSEMBLY Pulser |
1 | discontinued |
| 6 | 15313M |
КАТУШКА Зарядка COIL Lighting |
1 | discontinued |
| 7 | 96346M |
ВИНТ SCREW |
2 | discontinued |
| 8 | 83108M |
ВИНТ SCREW |
2 | discontinued |
| 9 | 82186M |
ШАЙБА WASHER |
2 | discontinued |
