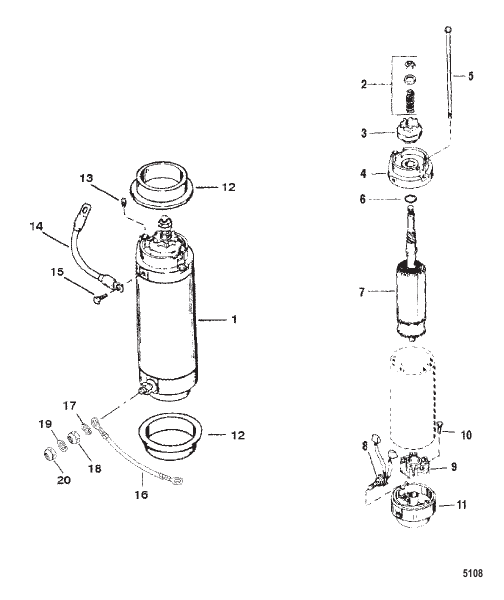

Starter Motor
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 79472T2 |
СТАРТЕР В СБОРЕ [0T430452] & Up STARTER MOTOR ASSEMBLY [0T430452] & Up |
1 | superseded |
| 1 | 884238T |
СТАРТЕР В СБОРЕ [0T429940] THRU [0T430451] STARTER MOTOR ASSEMBLY [0T429940] THRU [0T430451] |
1 | superseded |
| 1 | 794721 |
СТАРТЕР В СБОРЕ [0T429939] & Below STARTER MOTOR ASSEMBLY [0T429939] & Below |
1 | superseded |
| 10 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Винт (United Technologies №02441-22-SC-30SM) NOT SOLD SEPARATE Screw (United Technologies #02441-22-SC-30SM) |
2 | |
| 11 | 15386 |
КОЛПАЧОК END CAP |
1 | superseded |
| 12 | 56703 |
ВТУЛКА COLLAR |
2 | superseded |
| 13 | 68042 |
СТОП Резина STOP Rubber |
2 | superseded |
| 14 | 93388A1 |
КАБЕЛЬ В СБОРЕ (6.00"), черный CABLE ASSEMBLY (6.00 Inches) Black |
1 | |
| 15 | 69035 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.250-20 x 0.625), нержавеющая сталь SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel |
1 | |
| 16 | 93388A14 |
КАБЕЛЬ В СБОРЕ Желтый/черный CABLE ASSEMBLY Yellow/Black |
1 | |
| 17 | 53166 |
СТОПОРНАЯ ШАЙБА (0.312) LOCKWASHER (.312) |
1 | |
| 18 | 68292 |
ГАЙКА (0.312-18) NUT (.312-18) |
1 | superseded |
| 19 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
1 | |
| 2 | 90645 |
КОМПЛЕКТ ПРИВОДА DRIVE KIT |
1 | |
| 20 | 64015 |
ГАЙКА (0.250-20) NUT (.250-20) |
1 | |
| 3 | 13310T2 |
ПРИВОД [0T430452] & Up DRIVE [0T430452] & Up |
1 | discontinued |
| 3 | 13310T1 |
ШЕСТЕРНЯ В СБОРЕ [0T430451] & Below PINION ASSEMBLY [0T430451] & Below |
1 | |
| 4 | 75660 |
ПЛАСТИНА PLATE |
1 | |
| 5 | 749681 |
СКВОЗНОЙ БОЛТ THRU BOLT |
2 | discontinued |
| 6 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Шайба (United Technologies №WA3122) NOT SOLD SEPARATE Washer (United Technologies #WA3122) |
1 | |
| 7 | 792161 |
ЯКОРЬ [0T429940] & Up ARMATURE [0T429940] & Up |
1 | discontinued |
| 7 | 79216 |
ЯКОРЬ [0T429939] & Below ARMATURE [0T429939] & Below |
1 | discontinued |
| 8 | 75384 |
КОМПЛЕКТ ЩЕТКИ/ПРУЖИНЫ BRUSH/SPRING KIT |
1 | superseded |
| 9 | 61787 |
ДЕРЖАТЕЛЬ HOLDER |
2 | superseded |
