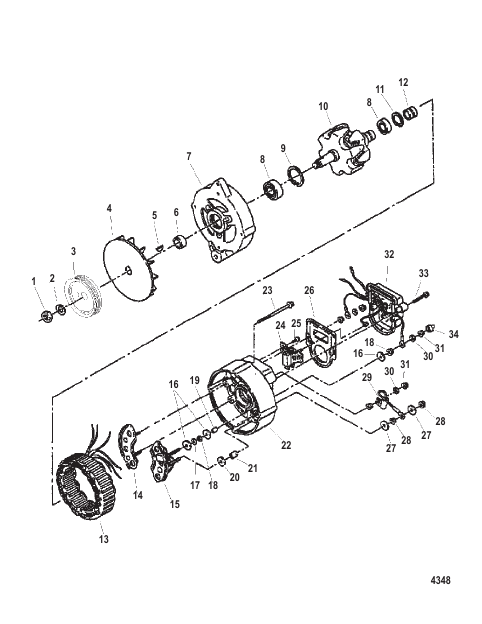

Alternator
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 853257 |
ГЕНЕРАТОР 65 ампер ALTERNATOR 65 Ampere |
1 | superseded |
| - | 808533 |
ДИОДНОЕ ПОЛЕ DIODE FIELD |
AR | superseded |
| 1 | 7027 |
ГАЙКА NUT |
1 | discontinued |
| 10 | 808528 |
РОТОР ROTOR |
1 | discontinued |
| 11 | 7017 |
КОЛЬЦО Стопор, задний RING Retaining, Rear |
1 | discontinued |
| 12 | 7014 |
ТОКОСОБИРАТЕЛЬНОЕ КОЛЬЦО SLIP RING |
1 | discontinued |
| 13 | 808529 |
СТАТОР STATOR |
1 | discontinued |
| 14 | 7009 |
ДИОД Выпрямитель, отрицательный DIODE Rectifier, Negative |
1 | discontinued |
| 15 | 808531 |
ДИОД Выпрямитель, положительный DIODE Rectifier, Positive |
1 | discontinued |
| 16 | 7024 |
ШАЙБА WASHER |
2 | discontinued |
| 17 | 813984 |
ШАЙБА WASHER |
1 | discontinued |
| 18 | 808544 |
ГАЙКА NUT |
3 | discontinued |
| 19 | 7020 |
РУКАВ SLEEVE |
1 | discontinued |
| 2 | 808542 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 20 | 7023 |
РАЗЪЕДИНИТЕЛЬ INSULATOR |
2 | discontinued |
| 21 | 808536 |
РУКАВ SLEEVE |
1 | discontinued |
| 22 | 7003 |
КОРПУС Задний HOUSING Rear |
1 | discontinued |
| 23 | 808535 |
БОЛТ Сквозной BOLT Thru |
4 | discontinued |
| 24 | 808532 |
ЩЕТКА В СБОРЕ BRUSH ASSEMBLY |
1 | discontinued |
| 25 | 808540 |
ВИНТ (№8-32 x .500) SCREW (#8-32 x .500) |
2 | discontinued |
| 26 | 7013 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 27 | 808537 |
ШАЙБА WASHER |
2 | discontinued |
| 28 | 808539 |
ГАЙКА (0.250-20) NUT (.250-20) |
2 | discontinued |
| 29 | 813972 |
КОНДЕНСАТОР CAPACITOR |
1 | discontinued |
| 3 | 853258 |
ШКИВ PULLEY |
1 | superseded |
| 30 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь LOCKWASHER (#10) Stainless Steel |
3 | |
| 31 | 808538 |
ГАЙКА NUT |
3 | discontinued |
| 32 | 808534 |
РЕГУЛЯТОР Напряжение REGULATOR Voltage |
1 | superseded |
| 33 | 808541 |
ВИНТ (№8-32 x 1.250) SCREW (#8-32 x 1.250) |
2 | discontinued |
| 34 | 808543 |
ПРОБКА CAP |
2 | discontinued |
| 4 | 7004 |
ВЕНТИЛЯТОР FAN |
1 | discontinued |
| 5 | 7034 |
КЛЮЧ KEY |
1 | discontinued |
| 6 | 813969 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 7 | 808527 |
КОРПУС Передний HOUSING Front |
1 | discontinued |
| 8 | 7007 |
ФИКСАТОР Шарик RETAINER Ball |
2 | discontinued |
| 9 | 7006 |
КОЛЬЦО Стопор, передний RING Retaining, Front |
1 | discontinued |
