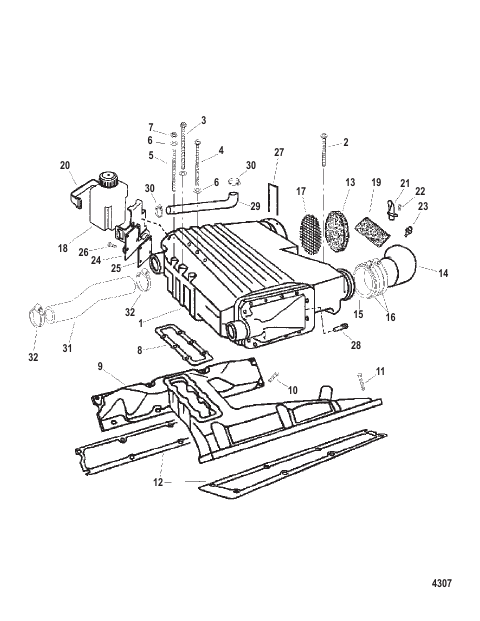

Aftercooler And Intake Manifold
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 853388 |
ЭКРАН Воздушный охладитель SCREEN Air Cooler |
2 | discontinued |
| - | 853389 |
ВИНТ SCREW |
3 | discontinued |
| 1 | 853369A1 |
ВТОРИЧНЫЙ ОХЛАДИТЕЛЬ В СБОРЕ AFTERCOOLER ASSEMBLY |
1 | superseded |
| 10 | 853376 |
ВИНТ (M8 x 20) SCREW (M8 x 20) |
15 | discontinued |
| 11 | 853377 |
ВИНТ (M8 x 60) SCREW (M8 x 60) |
1 | superseded |
| 12 | 853378 |
ПРОКЛАДКА Впуск GASKET Intake |
2 | |
| 13 | 853379 |
ЭЛЕМЕНТ Очиститель воздуха ELEMENT Air Cleaner |
1 | discontinued |
| 14 | 802715 |
КОЛЕНЧАТЫЙ ELBOW |
1 | superseded |
| 15 | 802716 |
РУКАВ HOSE |
2 | discontinued |
| 16 | 853432 |
ЗАЖИМ Шланг CLAMP Hose |
4 | superseded |
| 17 | 853215 |
ЭКРАН SCREEN |
1 | discontinued |
| 18 | 806193A3 |
РЕЗЕРВУАР В СБОРЕ Масло RESERVOIR ASSEMBLY Oil |
1 | superseded |
| 19 | 853387 |
ЭЛЕМЕНТ Очиститель воздуха ELEMENT Air Cleaner |
1 | discontinued |
| 2 | 853226 |
ВИНТ (M8 x 100) SCREW (M8 x 100) |
1 | discontinued |
| 20 | 808023T |
СКОБА Кронштейн STRAP Bracket |
1 | |
| 21 | 853382 |
ТРУБА TUBE |
1 | discontinued |
| 22 | 802776 |
ВИНТ (M4 x 16) SCREW (M4 x 16) |
1 | discontinued |
| 23 | 853203 |
ДАТЧИК Температура воздуха SENDER Air Temperature |
1 | discontinued |
| 24 | 853383 |
КРОНШТЕЙН Масляный бак BRACKET Oil Reservoir |
1 | discontinued |
| 25 | 853106 |
ПЛАСТИНА Крышка PLATE Cover |
1 | discontinued |
| 26 | 853051 |
БОЛТ (0.250-20 x 1.00) BOLT (.250-20 x 1.00) |
4 | discontinued |
| 27 | 853483 |
КОНТРГАЙКА KEEPER |
1 | discontinued |
| 28 | 853260 |
АНОД ANODE |
2 | superseded |
| 29 | 853431 |
РУКАВ HOSE |
1 | discontinued |
| 3 | 853371 |
ВИНТ (M8 x 130) SCREW (M8 x 130) |
1 | discontinued |
| 30 | 815504220 |
ЗАЖИМ Червячная передача Шланг CLAMP Worm Gear Hose |
2 | |
| 31 | 802789 |
РУКАВ К теплообменнику HOSE To Heat Exchanger |
1 | superseded |
| 32 | 853172 |
ЗАЖИМ Шланг CLAMP Hose |
2 | superseded |
| 4 | 802785 |
ВИНТ (M8 x 150) SCREW (M8 x 150) |
3 | discontinued |
| 5 | 853429 |
ШПИЛЬКА (M8 x 130) STUD (M8 x 130) |
2 | discontinued |
| 6 | 853373 |
ШАЙБА WASHER |
6 | discontinued |
| 7 | 853468 |
ГАЙКА (M8) NUT (M8) |
2 | discontinued |
| 8 | 853374 |
ПРОКЛАДКА GASKET |
1 | |
| 9 | 853375A1 |
ВПУСКНОЙ КОЛЛЕКТОР Впуск MANIFOLD ASSEMBLY Intake |
1 | discontinued |
