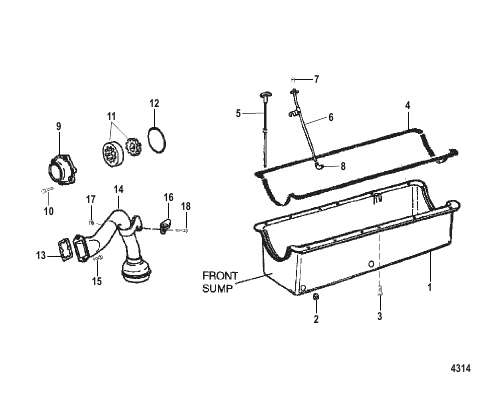

Oil Pan And Oil Pump
Parts (18)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 853098 |
ПОДДОН В СБОРЕ Масло PAN ASSEMBLY Oil |
1 | superseded |
| 10 | 853084 |
БОЛТ (M8 x 30) BOLT (M8 x 30) |
4 | discontinued |
| 11 | 853085 |
ГЕРОТОР В СБОРЕ GEROTOR ASSEMBLY |
1 | superseded |
| 12 | 853086 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 13 | 853087 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 14 | 853088 |
ТРУБА Маслозаборник TUBE Oil Pick Up |
1 | discontinued |
| 15 | 853089 |
ВИНТ SCREW |
2 | superseded |
| 16 | 853090 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 17 | 853091 |
ГАЙКА NUT |
1 | superseded |
| 18 | 853092 |
БОЛТ BOLT |
1 | discontinued |
| 2 | 853099 |
ПРОБКА (0.250) Слив PLUG (.250) Drain |
1 | discontinued |
| 3 | 802927 |
ВИНТ Маслосборник SCREW Oil Pan |
12 | superseded |
| 4 | 853036 |
ПРОКЛАДКА Жидкость GASKET Liquid |
1 | superseded |
| 5 | 853093 |
ЩУП DIPSTICK |
1 | discontinued |
| 6 | 853094 |
ТРУБА Измерительный щуп TUBE Dipstick |
2 | discontinued |
| 7 | 853095 |
ПРОБКА Трубка измерительного щупа CAP Dipstick Tube |
1 | discontinued |
| 8 | 853096 |
ФИТИНГ Колено (90 градусов) FITTING Elbow (90 Degree) |
2 | discontinued |
| 9 | 853083 |
КОРПУС Масляный насос HOUSING Oil Pump |
1 | discontinued |
