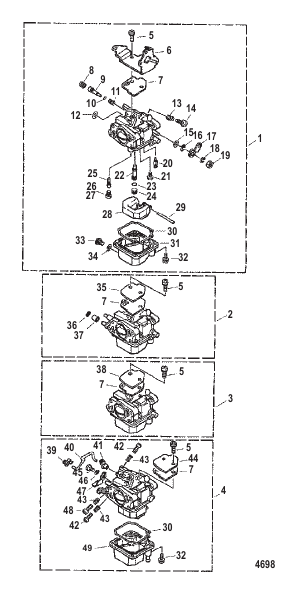

Carburetor (45)
Parts (50)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 809594A1 |
РЕМОНТНЫЙ КОМПЛЕКТ Карбюратор (Один комплект на карбюратор) REPAIR KIT Carburetor (One Kit per Carburetor) |
1 | |
| 1 | 825073A6 |
КАРБЮРАТОР (1) CARBURETOR (1) |
1 | discontinued |
| 10 | 809124M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
4 | |
| 11 | 809579 |
ПРУЖИНА Регулировка воздуха SPRING Air Adjusting |
4 | discontinued |
| 12 | 826943M |
ШАЙБА (1/2/3) WASHER (1/2/3) |
3 | discontinued |
| 13 | 8095791 |
ПРУЖИНА (1/2/3) SPRING (1/2/3) |
3 | discontinued |
| 14 | 8095781 |
ВИНТ Дроссельная заслонка (1/2/3) SCREW Throttle (1/2/3) |
3 | discontinued |
| 15 | 809580 |
ШАЙБА WASHER |
4 | discontinued |
| 16 | 94722M |
КОЛЬЦО Стопор RING Retaining |
4 | discontinued |
| 17 | 809582 |
РЫЧАГ (1) LEVER (1) |
1 | discontinued |
| 18 | 92515M |
СТОПОРНАЯ ШАЙБА (1) LOCKWASHER (1) |
1 | discontinued |
| 19 | 809581 |
ГАЙКА (1) NUT (1) |
1 | discontinued |
| 2 | 825073A7 |
КАРБЮРАТОР (2) CARBURETOR (2) |
1 | discontinued |
| 20 | 8095701 |
КЛАПАН Игла VALVE Needle |
4 | discontinued |
| 21 | 8095711 |
ВИНТ (M4 x 5) SCREW (M4 x 5) |
4 | discontinued |
| 22 | 8095741 |
ГЛАВНАЯ ФОРСУНКА MAIN NOZZLE |
4 | discontinued |
| 23 | 11802M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
4 | |
| 24 | 809577 |
ГЛАВНАЯ ФОРСУНКА MAIN NOZZLE |
4 | discontinued |
| 25 | 8095761 |
ВОДОМЕТНЫЙ Пилотный клапан (№42) JET Pilot (#42) |
4 | discontinued |
| 26 | 8095751 |
ВОДОМЕТНЫЙ Главн. (№104) (1/2) JET Main (#104) (1/2) |
2 | discontinued |
| 27 | 8095752 |
ВОДОМЕТНЫЙ Главн. (№103) (3/4) JET Main (#103) (3/4) |
2 | discontinued |
| 28 | 809569 |
ПОПЛАВОК FLOAT |
4 | discontinued |
| 29 | 11794M |
ШТИФТ PIN |
4 | discontinued |
| 3 | 825073A8 |
КАРБЮРАТОР (3) CARBURETOR (3) |
1 | discontinued |
| 30 | 809568 |
ПРОКЛАДКА GASKET |
4 | discontinued |
| 31 | 809567 |
КОРПУС (1/2/3) BODY (1/2/3) |
3 | discontinued |
| 32 | 81758M |
ВИНТ (M4 x 12) SCREW (M4 x 12) |
16 | |
| 33 | 8095783 |
ВИНТ Слив (M5 x 6) SCREW Drain (M5 x 6) |
4 | discontinued |
| 34 | 8095681 |
ПРОКЛАДКА GASKET |
4 | discontinued |
| 35 | 8095721 |
КРЫШКА (2) COVER (2) |
1 | discontinued |
| 36 | 809584 |
ЗАЖИМ (2) CLIP (2) |
1 | discontinued |
| 37 | 809585 |
РОЛИК (2) ROLLER (2) |
1 | discontinued |
| 38 | 8095721 |
КРЫШКА (3) COVER (3) |
1 | discontinued |
| 39 | 11829M |
ФИКСАТОР (4) RETAINER (4) |
1 | |
| 4 | 825073A9 |
КАРБЮРАТОР (4) CARBURETOR (4) |
1 | superseded |
| 40 | 809586 |
ШТОК Стартер (4) ROD Starter (4) |
1 | discontinued |
| 41 | 809587 |
СОЕДИНЕНИЕ (4) JOINT (4) |
1 | |
| 42 | 8095781 |
ВИНТ Дроссельная заслонка (4) SCREW Throttle (4) |
2 | discontinued |
| 43 | 8095791 |
ПРУЖИНА (4) SPRING (4) |
3 | discontinued |
| 44 | 8095721 |
КРЫШКА (4) COVER (4) |
1 | discontinued |
| 45 | 8095712 |
ВИНТ (4) SCREW (4) |
1 | discontinued |
| 46 | 8095801 |
ШАЙБА (4) WASHER (4) |
1 | discontinued |
| 47 | 8095821 |
РЫЧАГ (4) LEVER (4) |
1 | discontinued |
| 48 | 826931M |
ВИНТ (4) SCREW (4) |
1 | discontinued |
| 49 | 8095671 |
КОРПУС (4) BODY (4) |
1 | discontinued |
| 5 | 809571 |
ВИНТ (M4 x 10) SCREW (M4 x 10) |
8 | discontinued |
| 6 | 809572 |
КРЫШКА (1) COVER (1) |
1 | discontinued |
| 7 | 809573 |
ПРОКЛАДКА GASKET |
4 | discontinued |
| 8 | 827737 |
УПЛОТНЕНИЕ Резина SEAL Rubber |
4 | discontinued |
| 9 | 8095784 |
НАБОР ВИНТОВ Направляющая SCREW SET Pilot |
4 | discontinued |
