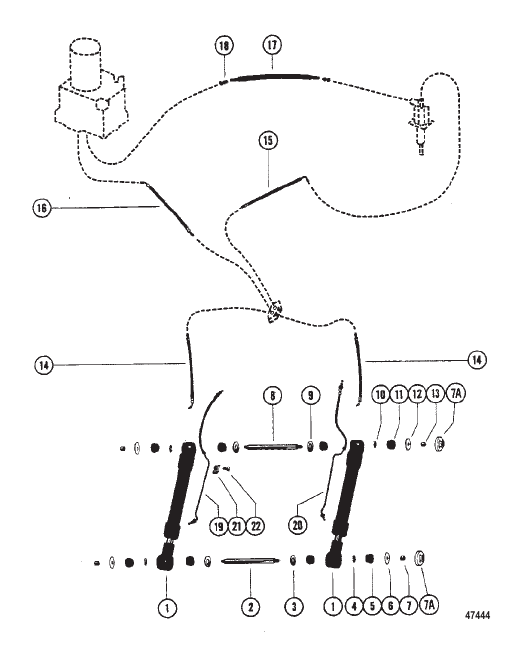

TRIM CYLINDERS AND HOSES (EXTERNAL LINES)

Parts (37)

#Part NumberDescriptionQtyStatus
-- 87412A3 TRIM CYLINDER ASS'Y COMPLETE (STBD.) SEE TRIM CYLINDER REPAIR KITS (EXTERNAL LINES) FOR REPAIR KIT BREAKDOWN 1
1 87411A3 TRIM CYLINDER ASS'Y COMPLETE (PORT) SEE TRIM CYLINDER REPAIR KITS (EXTERNAL LINES) FOR REPAIR KIT BREAKDOWN 1 disc.
10 49593 SPRING ANCHOR PIN (1/2-20 THREADS) 2 disc.
11 90203 BUSHING RUBBER (1/2-20 THREADS) 4 disc.
11 90203   BUSHING RUBBER (7/16-20 THREADS) 4 disc.
12 89665 WASHER Stainless Steel ANCHOR PIN (1/2-20 THREADS) 2
12 44163   WASHER (.450 x 1.75 x .12) FRONT ANCHOR PIN (7/16-20 THREADS) 2
13 35000 NUT (.500-20) Stainless Steel ANCHOR PIN (1/2-20 THREADS) 2
13 134391   NUT (.4375-20) FRONT ANCHOR PIN (7/16-20 THREADS) 2 superseded
14 86036 HOSE CONNECTOR TO TRIM CYLINDER (12-1/2") 2 superseded
15 63158A1 HOSE CONNECTOR TO VALVE (25")- PRESTOLITE PUMP 1
15 97010A1 HOSE CONNECTOR TO VALVE (47-1/2") -OILDYNE PUMP 1 disc.
16 63157A1 HOSE CONNECTOR PUMP (50-1/2") -PRESTOLITE PUMP 1
16 97009A1 HOSE CONNECTOR TO PUMP (46")- OILDYNE PUMP 1 disc.
17 58432A2 TUBING PUMP TO REVERSE LOCK VALVE (40") 1 superseded
18 49718 NUT COMPRESSION - HYDRAULIC TUBING 2
19 87558 HOSE PORT CYLINDER 1
2 49279 PIN REAR (1/2-20 THREADS) 1 superseded
2 14874A1 PIN ASSEMBLY ANCHOR (REAR) (7/16-20 THREADS) 1 disc.
20 87559 HOSE STARBOARD CYLINDER 1
21 85060 PLATE CLAMPING - HYDRAULIC HOSE 2
22 85486 SCREW (.250-20 x .380) Stainless Steel CLAMPING PLATE 4
3 89664 WASHER (.920 x 1.750 x .060) ANCHOR PIN (1/2-20 THREADS) 2
3 47395   WASHER REAR ANCHOR PIN (7/16-20 THREADS) 2 superseded
4 49593 SPRING ANCHOR PIN (1/2-20 THREADS) 2 disc.
5 90203 BUSHING RUBBER (1/2-20 THREADS) 4 disc.
5 90203   BUSHING RUBBER (7/16-20 THREADS) 4 disc.
6 89665 WASHER Stainless Steel ANCHOR PIN (1/2-20 THREADS) 2
6 44163 WASHER (.450 x 1.75 x .12) REAR ANCHOR PIN (7/16-20 THREADS) 2
7 35000 NUT (.500-20) Stainless Steel ANCHOR PIN (1/2-20 THREADS) 2
7 134391   NUT (.4375-20) REAR ANCHOR PIN (7/16-20 THREADS) 2 superseded
7A 14842   CAP REAR ANCHOR PIN (7/16-20 THREADS) 2
7A 14842   CAP FRONT ANCHOR PIN 97/16-20 THREADS) 2
8 47374 PIN FRONT (1/2-20 THREADS) 1 superseded
8 14875A1 PIN KIT ANCHOR (FRONT) (7/16-20 THREADS) 1 disc.
9 89664 WASHER (.920 x 1.750 x .060) ANCHOR PIN (1/2-20 THREADS) 2
9 89664   WASHER (.920 x 1.750 x .060) FRONT ANCHOR PIN (7/16-20 THREADS) 2
