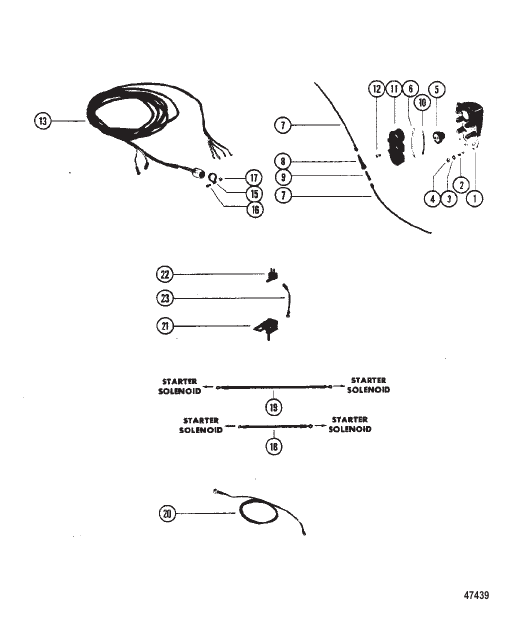

| # | Part Number | Description | Qty | Status |
|---|
| -- |
55642A13 |
CONTROL PANEL ASSEMBLY COMPLETE
|
1 |
disc.
|
| 1 |
55642A1 |
PANEL CONTROL
|
1 |
superseded
|
| 10 |
53107 |
WIRE Jumper (3.00 Inches) (PURPLE - 3")
|
1 |
disc.
|
| 11 |
55641 |
RETAINER PUSH BUTTON SWITCH
|
1 |
disc.
|
| 12 |
62568 |
SCREW (#10-16 x .375) SWITCH RETAINER (1/2")
|
4 |
|
| 13 |
87394A20 |
HARNESS ASSEMBLY CONTROL PANEL
|
1 |
|
| 15 |
46770 |
CLAMP HARNESS
|
1 |
superseded
|
| 16 |
29227 |
SCREW (#8-32 x 0.50) HARNESS CLAMP (1/2")
|
1 |
|
| 17 |
34388 |
NUT HARNESS CLAMP SCREW
|
1 |
disc.
|
| 18 |
79139A2 |
WIRE ASSEMBLY Jumper SOLENOID (RED - 7-1/2")
|
1 |
disc.
|
| 19 |
55992 |
WIRE Jumper SOLENOID (BLACK - 11-1/2")
|
1 |
disc.
|
| 2 |
55422 |
STUD (#10-32 x 2.00) CONTROL PANEL TO BOAT (2")
|
4 |
|
| 20 |
79139A9 |
CABLE ASSEMBLY Battery (POSITIVE)
|
1 |
disc.
|
| 20 |
79138A1 |
CABLE ASSEMBLY (NEGATIVE)
|
1 |
disc.
|
| 21 |
79023A90 |
FUSE ASSEMBLY 90 Ampere (90 AMP)
|
1 |
superseded
|
| 22 |
791371 |
BREAKER Circuit
|
1 |
superseded
|
| 23 |
79148A1 |
WIRE ASSEMBLY Jumper (RED)
|
1 |
disc.
|
| 3 |
24676 |
WASHER (.200 x .440 x .032) CONTROL PANEL STUD
|
4 |
|
| 4 |
27164 |
NUT AND LOCKWASHER (#10-32) CONTROL PANEL STUD
|
4 |
|
| 5 |
55738A1 |
SWITCH ASSEMBLY PUSH BUTTON - CONTROL PANEL
|
3 |
|
| 6 |
48078 |
WIRE Jumper (RED - 3-1/4") - USE WITHOUT FUSE
|
1 |
disc.
|
| 7 |
69174A2 |
WIRE (24.00 Inches) (RED - 24")
|
2 |
disc.
|
| 8 |
69358A1 |
CAP ASSEMBLY FUSE HOLDER
|
1 |
disc.
|
| 9 |
79091 |
FUSE 20 Ampere (20 AMP)
|
1 |
superseded
|
