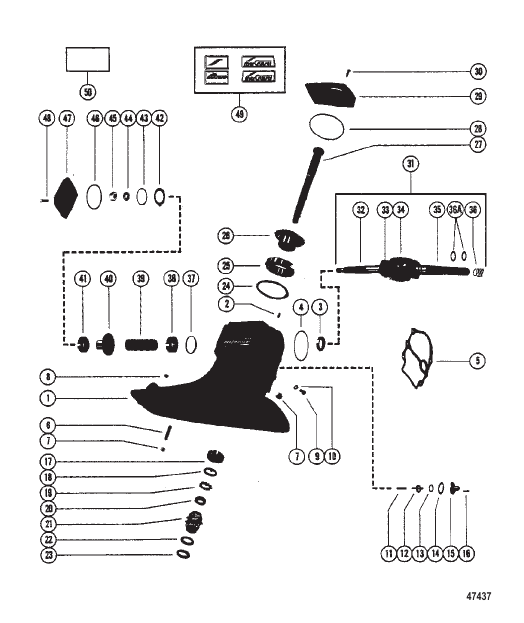

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
4847A5 |
HOUSING ASSEMBLY Driveshaft
|
1 |
disc.
|
| 10 |
20260 |
WASHER SEALING
|
1 |
superseded
|
| 11 |
48442 |
SPRING TENSION
|
1 |
disc.
|
| 12 |
48219 |
CHECK VALVE
|
1 |
|
| 13 |
48452 |
QUAD RING
|
1 |
|
| 14 |
66925 |
GASKET
|
1 |
disc.
|
| 15 |
54168 |
GUIDE
|
1 |
disc.
|
| 16 |
22523 |
SCREW (.190-32 x .75)
|
3 |
disc.
|
| 17 |
38356A1 |
BEARING SET DRIVE SHAFT
|
1 |
|
| 18 |
62795 |
WASHER DRIVE SHAFT
|
1 |
disc.
|
| 19 |
62788 |
LOCKWASHER DRIVE SHAFT
|
1 |
disc.
|
| 2 |
21934 |
SCREW (.375-16 x .500) SET - DRIVE SHAFT HOUSING
|
1 |
disc.
|
| 20 |
41527T |
NUT DRIVE SHAFT
|
1 |
disc.
|
| 21 |
62787A2 |
COUPLING ASSEMBLY OIL SLINGER INCLUDED WITH GEAR HOUSING ASSEMBLIES
|
1 |
disc.
|
| 22 |
39899A1 |
SHIM ASSEMBLY ROLLER BEARING TO COUPLING INCLUDED WITH GEAR HOUSING ASSEMBLIES
|
AR |
superseded
|
| 23 |
62797 |
WASHER ROLLER BEARING TO COUPLING INCLUDED WITH GEAR HOUSING ASSEMBLIES
|
1 |
disc.
|
| 24 |
32061A1 |
SHIM SET TAPERED ROLLER BEARING
|
AR |
disc.
|
| 25 |
62799A1 |
BEARING SET DRIVE GEAR
|
1 |
|
| 26 |
62879T |
GEAR Driven DRIVE SHAFT (32 TEETH) (SEE NOTE #1)
|
1 |
superseded
|
| 27 |
62793T |
DRIVESHAFT
|
1 |
disc.
|
| 28 |
67202 |
O-RING TOP COVER
|
1 |
disc.
|
| 29 |
62911T |
COVER TOP
|
1 |
disc.
|
| 3 |
62818 |
SEAL DRIVE SHAFT HOUSING
|
1 |
|
| 30 |
35047 |
SCREW (.375-16 x 1.250) Stainless Steel COVER (1-1/4")
|
4 |
|
| 31 |
62782A8 |
UNIVERSAL JOINT ASSEMBLY (MERCURY MARINE TRANSMISSION)
|
1 |
disc.
|
| 31 |
62782A4 |
UNIVERSAL JOINT ASSEMBLY (BORG WARNER TRANSMISSION)
|
1 |
disc.
|
| 32 |
62782A6 |
STUB ASSEMBLY UNIVERSAL JOINT (GEAR END)
|
1 |
disc.
|
| 33 |
75832A2 |
CROSS AND BEARING
|
2 |
superseded
|
| 34 |
39383T |
SOCKET Center CENTER - UNIVERSAL JOINT
|
1 |
superseded
|
| 35 |
62784A1 |
STUB ASSEMBLY UNIV. JOINT (COUPLING END) MERUCRY MARINE TRANSMISSION
|
1 |
|
| 35 |
57749A1 |
YOKE ASSEMBLY UNIVERSAL (COUPLING END) BORG WARNER TRANSMISSION
|
1 |
|
| 36 |
62727 |
SPRING UNIVERSAL JOINT MERUCRY MARINE TRANSMISSION
|
1 |
|
| 36A |
25439 |
O-RING (.862 x .103) UNIVERSAL BORG WARNER TRANSMISSION
|
2 |
|
| 37 |
62833A1 |
SHIM SET ROLLER BEARING TO HOUSING
|
AR |
disc.
|
| 38 |
38356A1 |
BEARING SET UNIVERSAL JOINT
|
1 |
|
| 39 |
62789 |
SPACER TAPERED ROLLER BEARING
|
1 |
disc.
|
| 4 |
62817 |
O-RING DRIVE SHAFT HOUSING
|
1 |
|
| 40 |
62878T |
GEAR (24 TEETH) (SEE NOTE #1)
|
1 |
superseded
|
| 41 |
54038A1 |
BEARING ASSEMBLY Tapered Roller PINION GEAR
|
1 |
superseded
|
| 42 |
62786 |
WASHER TAPERED ROLLER BEARING
|
1 |
disc.
|
| 43 |
55499A1 |
SHIM ASSEMBLY TAPERED ROLLER BEARING
|
AR |
|
| 44 |
48912 |
WASHER PINION GEAR TO UNIVERSAL JOINT
|
1 |
disc.
|
| 45 |
34862 |
NUT (1.00-14) PINION GEAR TO UNIVERSAL JOINT
|
1 |
superseded
|
| 46 |
39695 |
O-RING REAR COVER
|
1 |
|
| 47 |
62785T |
COVER REAR
|
1 |
disc.
|
| 48 |
35047 |
SCREW (.375-16 x 1.250) Stainless Steel REAR COVER (1-1/4")
|
4 |
|
| 49 |
14489A87 |
DECAL SET DRIVE SHAFT HOUSING (330 TR/TRS/370)
|
1 |
superseded
|
| 5 |
54014A1 |
GASKET DRIVE SHAFT HOUSING TO BELL HOUSING
|
1 |
superseded
|
| 50 |
77386 |
DECAL "228"
|
1 |
disc.
|
| 50 |
77412 |
DECAL "330"
|
1 |
disc.
|
| 50 |
16416A87 |
DECAL "420"
|
1 |
disc.
|
| 6 |
54674 |
STUD (.437-14/.437-20 x 2.250) DRIVE SHAFT HOUSING (2-1/4")
|
6 |
disc.
|
| 7 |
34933 |
NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUD
|
6 |
superseded
|
| 8 |
47579 |
PLUG TRIM TAB HOLE
|
1 |
|
| 9 |
79953 |
SCREW (.375-16 x .250) VENT
|
1 |
superseded
|
