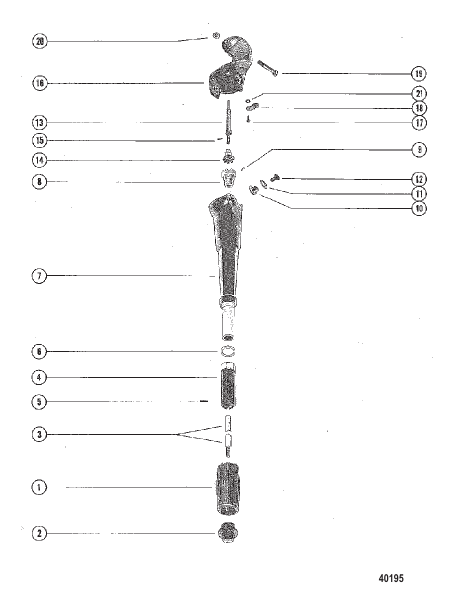

STEERING HANDLE ASSEMBLY
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 60850A6 |
РУКОЯТКА В СБОРЕ Рулевой механизм В СБОРЕ [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] HANDLE ASSEMBLY Steering COMPLETE [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] |
1 | discontinued |
| - | 60850A6 |
РУКОЯТКА В СБОРЕ Рулевой механизм В СБОРЕ ВРУЧНУЮ [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up HANDLE ASSEMBLY Steering COMPLETE MANUAL [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up |
1 | discontinued |
| 1 | 60854 |
РУКОЯТКА РУКОЯТКА – ДРОССЕЛЬНАЯ ЗАСЛОНКА [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] GRIP HANDLE - THROTTLE [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] |
1 | discontinued |
| 1 | 60854 |
РУКОЯТКА РУКОЯТКА – ДРОССЕЛЬНАЯ ЗАСЛОНКА ВРУЧНУЮ [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up GRIP HANDLE - THROTTLE MANUAL [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up |
1 | discontinued |
| 10 | 48003 |
ШАРНИР [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] PIVOT [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] |
2 | discontinued |
| 10 | 48003 |
ШАРНИР ВРУЧНУЮ [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up PIVOT MANUAL [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up |
2 | discontinued |
| 11 | 48002015 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (0.015) [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] SHIM (.015) [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] |
AR | discontinued |
| 11 | 48002015 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (0.015) ВРУЧНУЮ [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up SHIM (.015) MANUAL [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up |
AR | discontinued |
| 12 | 64074 |
ВИНТ (0.250-28 x 620) [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] SCREW (.250-28 x .620) [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] |
2 | |
| 12 | 64074 |
ВИНТ (0.250-28 x 620) ВРУЧНУЮ [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up SCREW (.250-28 x .620) MANUAL [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up |
2 | |
| 13 | 60857A2 |
УНИВЕРСАЛЬНЫЙ ШАРНИР В СБОРЕ [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] UNIVERSAL JOINT ASSEMBLY [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] |
1 | discontinued |
| 13 | 60857A2 |
УНИВЕРСАЛЬНЫЙ ШАРНИР В СБОРЕ ВРУЧНУЮ [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up UNIVERSAL JOINT ASSEMBLY MANUAL [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up |
1 | discontinued |
| 14 | 60852 |
ПЕРЕДАЧА [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] GEAR [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] |
1 | discontinued |
| 14 | 60852 |
ПЕРЕДАЧА ВРУЧНУЮ [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up GEAR MANUAL [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up |
1 | discontinued |
| 15 | 77564 |
ШТИФТ [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] PIN [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] |
1 | discontinued |
| 15 | 77564 |
ШТИФТ ВРУЧНУЮ [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up PIN MANUAL [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up |
1 | discontinued |
| 16 | 68766A2 |
КРОНШТЕЙН РЫЧАГ РУЛЕВОГО МЕХАНИЗМА BRACKET STEERING ARM |
1 | discontinued |
| 17 | 62233 |
ВИНТ (№10-16 x 0.625) SCREW (#10-16 x .625) |
2 | discontinued |
| 18 | 72847 |
ПРУЖИНА ФИКСАТОР – РУКОЯТКА РУЛЕВОГО МЕХАНИЗМА SPRING DETENT - STEERING HANDLE |
2 | discontinued |
| 19 | 26132 |
ВИНТ КРОНШТЕЙН К СЕДЛУ (2 1/2") [USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672] & Below SCREW BRACKET TO SADDLE (2 1/2") [USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672] & Below |
3 | discontinued |
| 19 | 35385 |
ВИНТ (0.312-18 x 1-3/4) [USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673] & Up SCREW (.312-18 x 1-3/4) [USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673] & Up |
3 | discontinued |
| 2 | 62251 |
ПРОБКА [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] CAP [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] |
1 | discontinued |
| 2 | 62251 |
ПРОБКА ВРУЧНУЮ [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up CAP MANUAL [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up |
1 | discontinued |
| 20 | 46793 |
ГАЙКА (5/16-24) ВИНТ КРОНШТЕЙНА [USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672] & Below NUT (5/16-24) BRACKET SCREW [USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672] & Below |
3 | superseded |
| 21 | 30164 |
ШАЙБА (0.192 x 0.375 x 0.0312), нержавеющая сталь ВИНТ ПРУЖИНЫ ФИКСАТОРА WASHER (.192 x .375 x .0312) Stainless Steel DETENT SPRING SCREW |
2 | |
| 3 | 66393 |
ВАЛ ДРОССЕЛЬНАЯ ЗАСЛОНКА [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] SHAFT THROTTLE [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] |
1 | discontinued |
| 3 | 66393 |
ВАЛ ДРОССЕЛЬНАЯ ЗАСЛОНКА ВРУЧНУЮ [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up SHAFT THROTTLE MANUAL [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up |
1 | discontinued |
| 4 | 66394A1 |
РУКОЯТКА В СБОРЕ [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] HANDLE ASSEMBLY [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] |
1 | discontinued |
| 4 | 66394A1 |
РУКОЯТКА В СБОРЕ ВРУЧНУЮ [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up HANDLE ASSEMBLY MANUAL [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up |
1 | discontinued |
| 5 | 46152 |
ШТИФТ [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] PIN [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] |
1 | discontinued |
| 5 | 46152 |
ШТИФТ ВРУЧНУЮ [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up PIN MANUAL [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up |
1 | discontinued |
| 6 | 62252 |
ШАЙБА [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] WASHER [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] |
1 | discontinued |
| 6 | 62252 |
ШАЙБА ВРУЧНУЮ [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up WASHER MANUAL [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up |
1 | discontinued |
| 7 | 60850 |
ARM [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] ARM [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] |
1 | discontinued |
| 7 | 60850 |
ARM ВРУЧНУЮ [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up ARM MANUAL [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up |
1 | discontinued |
| 8 | 60852 |
ПЕРЕДАЧА [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] GEAR [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] |
1 | discontinued |
| 8 | 60852 |
ПЕРЕДАЧА ВРУЧНУЮ [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up GEAR MANUAL [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up |
1 | discontinued |
| 9 | 27088 |
ШТИФТ [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] PIN [USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523] THRU [USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947] |
1 | discontinued |
| 9 | 27088 |
ШТИФТ ВРУЧНУЮ [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up PIN MANUAL [USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948] & Up |
1 | discontinued |
