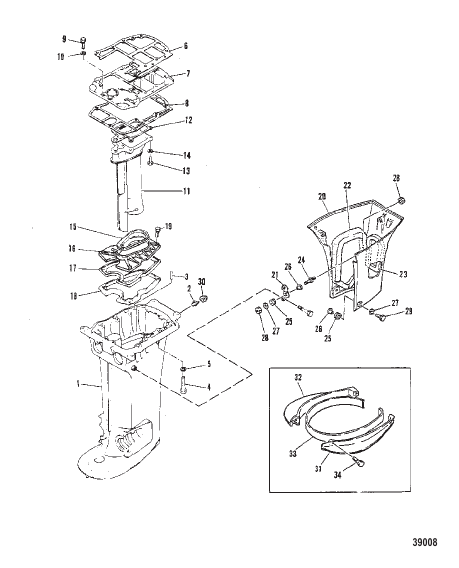

DRIVESHAFT HOUSING
Parts (38)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 97666M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| - | 94533M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 8569M |
КОРПУС Приводной вал (КОРОТКИЙ) HOUSING Driveshaft (SHORT) |
1 | discontinued |
| 1 | 8570M |
КОРПУС Карданный вал (ДЛИННЫЙ) HOUSING Driveshaft (LONG) |
1 | discontinued |
| 10 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
3 | discontinued |
| 11 | 97750M |
ТРУБКА Выхлопная TUBE Exhaust |
1 | discontinued |
| 12 | 83383M |
ПРОКЛАДКА ВЫХЛОПНАЯ ТРУБА GASKET EXHAUSE TUBE |
1 | discontinued |
| 13 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
4 | |
| 14 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
4 | discontinued |
| 15 | 83384M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 16 | 14261M |
КРОНШТЕЙН Опора уплотнения BRACKET Seal Support |
1 | superseded |
| 17 | 83386M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 18 | 83387M |
ТАРЕЛКА PLATE |
1 | superseded |
| 19 | 82476M |
БОЛТ BOLT |
4 | discontinued |
| 2 | 94520M |
СТОП STOP |
1 | discontinued |
| 20 | 94517M |
ФАРТУК APRON |
1 | discontinued |
| 21 | 94521M |
КРОНШТЕЙН BRACKET |
2 | discontinued |
| 22 | 94518M |
ДЕМПФЕР DAMPER |
2 | discontinued |
| 23 | 94519M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 24 | 94523M |
БОЛТ BOLT |
2 | discontinued |
| 25 | 94525M |
ВТУЛКА GROMMET |
4 | discontinued |
| 26 | 94522M |
Ошейник COLLAR |
4 | discontinued |
| 27 | 94524M |
ШАЙБА WASHER |
4 | discontinued |
| 28 | 82389M |
ГАЙКА NUT |
4 | discontinued |
| 29 | 94526M |
БОЛТ BOLT |
2 | discontinued |
| 3 | 83379M |
ШТИФТ-ДЮБЕЛЬ PIN DOWEL |
2 | discontinued |
| 30 | 83042M |
ДЕМПФЕР DAMPER |
1 | discontinued |
| 31 | 93046M |
ПОРТ ДЛЯ ОТРЫВКА (ДЛИННЫЙ) SPLASH PLATE PORT (LONG) |
1 | discontinued |
| 32 | 93047M |
ЗАЩИТНИК ПРАВОГО БОРТА (ДЛИННЫЙ) SPLASH PLATE STARBOARD (LONG) |
1 | discontinued |
| 33 | 93048M |
УПЛОТНЕНИЕ (ДЛИННОЕ) SEAL (LONG) |
1 | discontinued |
| 34 | 82476M |
БОЛТ ОТКРЫТИЯ (ДЛИННЫЙ) BOLT SPLASH PLATE (LONG) |
3 | discontinued |
| 4 | 97749M |
БОЛТ BOLT |
8 | discontinued |
| 5 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
8 | discontinued |
| 6 | 83378M |
ПРОКЛАДКА КОРПУСА ПРИВОДНОГО ВАЛА GASKET DRIVESHAFT HOUSING |
1 | superseded |
| 7 | 97752M |
ТАРЕЛКА PLATE |
1 | discontinued |
| 8 | 19175M |
ПРОКЛАДКА ВЕРХНЕГО КОРПУСА [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] и выше GASKET UPPER HOUSING [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] & Up |
1 | superseded |
| 8 | 97751M |
ПРОКЛАДКА ВЕРХНЕГО КОРПУСА [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] и ниже GASKET UPPER HOUSING [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] & Below |
1 | superseded |
| 9 | 82453M |
БОЛТ BOLT |
3 | superseded |
