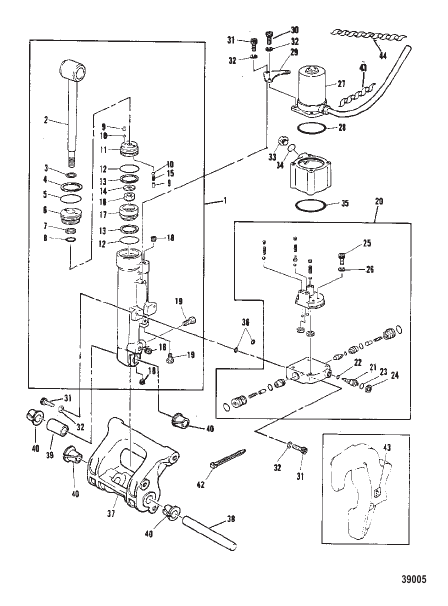

ELECTRIC TILT ASSEMBLY AND BRACKET
Parts (45)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 0-1 | 17091M |
СИЛОВОЙ НАКЛОН В СБОРЕ POWER TILT ASSEMBLY |
1 | discontinued |
| 1 | 17444M |
ЦИЛИНДР НАКЛОНА В СБОРЕ TILT CYLINDER ASSEMBLY |
1 | discontinued |
| 10 | 17118M |
ШАР BALL |
5 | discontinued |
| 11 | 17117M |
НАКЛОН ПОРШНЯ PISTON TILT |
1 | discontinued |
| 12 | 17123M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | discontinued |
| 13 | 17124M |
КОЛЬЦО RING |
2 | discontinued |
| 14 | 17121M |
ШАЙБА WASHER |
1 | discontinued |
| 15 | 17120M |
ВЕСНА SPRING |
5 | discontinued |
| 16 | 17139M |
ГАЙКА NUT |
1 | discontinued |
| 17 | 17122M |
ПОРШЕНЬ PISTON |
1 | discontinued |
| 18 | 17132M |
ПРОБКА PLUG |
3 | discontinued |
| 19 | 17133M |
ВИНТ SCREW |
2 | discontinued |
| 2 | 17119M |
стержень ROD |
1 | discontinued |
| 20 | 17445M |
ГЛАВНЫЙ КЛАПАН В СБОРЕ MAIN VALVE ASSEMBLY |
1 | discontinued |
| 21 | 17100M |
ВИНТ РУЧНОГО СЕДЛА КЛАПАНА SCREW MANUAL VALVE SEAT |
1 | discontinued |
| 22 | 17101M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 23 | 17102M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 24 | 17103M |
КОЛЬЦО Snap RING Snap |
1 | discontinued |
| 25 | 17138M |
БОЛТ BOLT |
4 | discontinued |
| 26 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
4 | discontinued |
| 27 | 17131M |
МОТОР В СБОРЕ MOTOR ASSEMBLY |
1 | discontinued |
| 28 | 17111M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 29 | 17134M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 3 | 17129M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 30 | 17135M |
БОЛТ BOLT |
4 | discontinued |
| 31 | 17136M |
БОЛТ BOLT |
4 | discontinued |
| 32 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
8 | discontinued |
| 33 | 17116M |
ПРОБКА PLUG |
1 | discontinued |
| 34 | 17102M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 35 | 17110M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 36 | 17104M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 37 | 17140M |
КРОНШТЕЙН ПРОСТАВОЧНОГО ЗАЖИМА SPACER CLAMP BRACKET |
1 | discontinued |
| 38 | 17141M |
ПИН-код PIN |
1 | discontinued |
| 39 | 17081M |
Ошейник COLLAR |
1 | discontinued |
| 4 | 17137M |
КОЛЬЦО RING |
1 | discontinued |
| 40 | 17082M |
ВТУЛКА BUSHING |
4 | discontinued |
| 41 | 98915M |
ИЗОЛЯЦИОННАЯ ОБРУЧКА (КОРОТКАЯ) INSULATOR WRAP (SHORT) |
1 | discontinued |
| 42 | 97724M |
ЗАЖИМ [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] и ниже CLIP [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] & Below |
1 | superseded |
| 43 | 17142M |
НАКЛЕЙКА (ЭЛЕКТРИЧЕСКИЙ НАКЛОН) DECAL (ELECTRIC TILT) |
1 | discontinued |
| 44 | 17450M |
ИЗОЛЯЦИОННАЯ ОБРУЧКА (ДЛИННАЯ) INSULATOR WRAP (LONG) |
1 | discontinued |
| 5 | 17130M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 6 | 17125M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 7 | 17127M |
КОЛЬЦО RING |
1 | discontinued |
| 8 | 17126M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 9 | 17128M |
ВАЛ SHAFT |
5 | discontinued |
