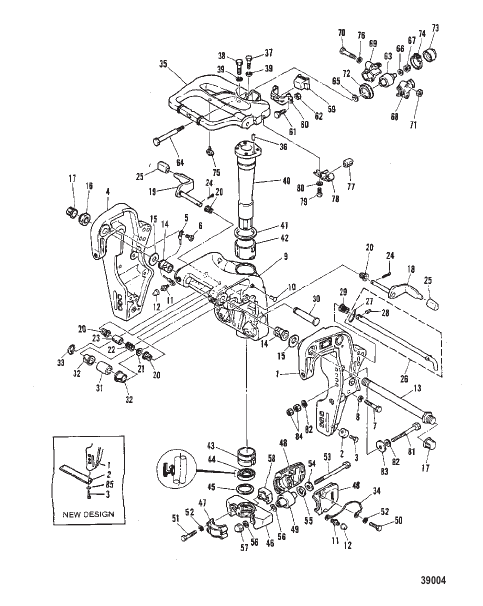

CLAMP AND SWIVEL BRACKET (ELECTRIC TILT)
Parts (93)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9827M |
ЗАЖИМ КРОНШТЕЙНА (ПОРТ) [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] и выше BRACKET CLAMP (PORT) [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] & Up |
1 | discontinued |
| 1 | 9677M |
ЗАЖИМ КРОНШТЕЙНА (ПОРТ) [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] и ниже BRACKET CLAMP (PORT) [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] & Below |
1 | superseded |
| 10 | 81909M |
ЗАКЛЕПКА RIVET |
1 | discontinued |
| 11 | 82369M |
ФИТИНГОВАЯ СМАЗКА FITTING GREASE |
3 | |
| 12 | 81439M |
КРЫШКА СМАЗОЧНАЯ ФИТИНГА CAP GREASE FITTING |
3 | discontinued |
| 13 | 19236M |
БОЛТ [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] и выше BOLT [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] & Up |
1 | discontinued |
| 13 | 17070M |
БОЛТ [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] и ниже BOLT [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] & Below |
1 | superseded |
| 14 | 41313M |
ВТУЛКА BUSHING |
2 | discontinued |
| 15 | 17071M |
ШАЙБА WASHER |
2 | discontinued |
| 16 | 81787M |
ГАЙКА NUT |
1 | superseded |
| 17 | 81388M |
КРОНШТЕЙН ЗАЖИМА КРЫШКИ CAP CLAMP BRACKET |
2 | superseded |
| 18 | 19237M |
РЫЧАГ ОГРАНИЧЕНИЯ НАКЛОНА (ПОРТ) [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] и вверх LEVER TILT STOP (PORT) [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] & Up |
1 | discontinued |
| 18 | 17072M |
РЫЧАГ ОГРАНИЧЕНИЯ НАКЛОНА (ПОРТ) [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] и ниже LEVER TILT STOP (PORT) [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] & Below |
1 | superseded |
| 19 | 19238M |
РЫЧАГ ОГРАНИЧЕНИЯ НАКЛОНА (ПРАВЫЙ БОРТ) [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] и вверх LEVER TILT STOP (STARBOARD) [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] & Up |
1 | discontinued |
| 19 | 17073M |
РЫЧАГ ОГРАНИЧЕНИЯ НАКЛОНА (ПРАВЫЙ БОРТ) [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] и ниже LEVER TILT STOP (STARBOARD) [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] & Below |
1 | superseded |
| 2 | 19235M |
АНОД [(M-008626, ML-311889, E-105664, EL-428358, ETL-502266] и выше ANODE [(M-008626, ML-311889, E-105664, EL-428358, ETL-502266] & Up |
1 | superseded |
| 2 | 41843M |
АНОД [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] и ниже ANODE [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] & Below |
1 | superseded |
| 20 | 17074M |
ВТУЛКА BUSHING |
4 | discontinued |
| 21 | 82219M |
ШАЙБА WASHER |
1 | discontinued |
| 22 | 17075M |
ВЕСНА SPRING |
1 | discontinued |
| 23 | 17076M |
Ошейник COLLAR |
1 | discontinued |
| 24 | 82131M |
ШПИЛЬНИК COTTER PIN |
2 | superseded |
| 25 | 81395M |
КРЫШКА COVER |
2 | discontinued |
| 26 | 17077M |
НАКЛОННАЯ ТЯГА В СБОРЕ TILT ROD ASSEMBLY |
1 | discontinued |
| 27 | 17078M |
СТОППЕР ЗАМОК НАКЛОНА STOPPER TILT LOCK |
1 | discontinued |
| 28 | 82146M |
ПИН РОЛЛ PIN ROLL |
1 | discontinued |
| 29 | 17079M |
ВЕСНА SPRING |
1 | discontinued |
| 3 | 84237M |
БОЛТ [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] и выше BOLT [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] & Up |
2 | superseded |
| 3 | 92679M |
ВИНТ [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] и ниже SCREW [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] & Below |
1 | discontinued |
| 30 | 19239M |
ВЕРХНЕЕ КРЕПЛЕНИЕ АМОРТИЗАТОРА С ШТИФТОМ [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] и выше PIN UPPER SHOCK MOUNT [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] & Up |
1 | discontinued |
| 30 | 17080M |
ВЕРХНЕЕ КРЕПЕЖНОЕ КРЕПЛЕНИЕ АМОРТИЗАТОРА [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] и ниже PIN UPPER SHOCK MOUNT [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] & Below |
1 | superseded |
| 31 | 17081M |
Ошейник COLLAR |
1 | discontinued |
| 32 | 17082M |
ВТУЛКА BUSHING |
2 | discontinued |
| 33 | 17083M |
КОЛЬЦО Snap RING Snap |
1 | superseded |
| 34 | 17084M |
ПРОВОДНОЙ ПРОВОД WIRE LEAD |
1 | discontinued |
| 35 | 17085M |
КРОНШТЕЙН РУЛЕВОЙ BRACKET STEERING |
1 | discontinued |
| 36 | 82368M |
ШТИФТ-ДЮБЕЛЬ PIN DOWEL |
2 | discontinued |
| 37 | 95416M |
БОЛТ BOLT |
2 | discontinued |
| 38 | 82466M |
БОЛТ BOLT |
2 | superseded |
| 39 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
4 | discontinued |
| 4 | 9828M |
ЗАЖИМ КРОНШТЕЙНА (ПРАВЫЙ БОРТ) [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] И Вверх BRACKET CLAMP (STARBOARD) [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] & Up |
1 | discontinued |
| 4 | 9678M |
ЗАЖИМ КРОНШТЕЙНА (ПРАВЫЙ БОРТ) [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] и ниже BRACKET CLAMP (STARBOARD) [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] & Below |
1 | superseded |
| 40 | 83907M |
ШАРНИР РУЛЕВОГО ВАЛА SHAFT STEERING PIVOT |
1 | discontinued |
| 41 | 83482M |
ШАЙБА WASHER |
1 | discontinued |
| 42 | 83483M |
ВТУЛКА BUSHING |
1 | discontinued |
| 43 | 83485M |
ВТУЛКА BUSHING |
1 | discontinued |
| 44 | 83486M |
УПЛОТНИТЕЛЬНОЕ масло SEAL Oil |
1 | discontinued |
| 45 | 83487M |
ШАЙБА WASHER |
1 | discontinued |
| 46 | 83492M |
НИЖНЕЕ КРЕПЛЕНИЕ КОРПУСА HOUSING LOWER MOUNT |
1 | superseded |
| 47 | 83491M |
НИЖНЕЕ КРЕПЛЕНИЕ КОРПУСА HOUSING LOWER MOUNT |
1 | discontinued |
| 48 | 83512M |
КРЫШКА НИЖНЕГО КРЕПЛЕНИЯ COVER LOWR MOUNT |
2 | discontinued |
| 49 | 83914M |
КРЕПЛЕНИЕ ДЕМПФЕРА MOUNT DAMPER |
2 | superseded |
| 5 | 41846M |
ПРОВОДНОЙ ПРОВОД WIRE LEAD |
1 | superseded |
| 50 | 95416M |
БОЛТ BOLT |
4 | discontinued |
| 51 | 82468M |
БОЛТ BOLT |
4 | superseded |
| 52 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
4 | discontinued |
| 53 | 83510M |
БОЛТ BOLT |
2 | discontinued |
| 54 | 83915M |
ШАЙБА WASHER |
2 | discontinued |
| 55 | 81860M |
ШАЙБА WASHER |
2 | discontinued |
| 56 | 84429M |
ШАЙБА WASHER |
2 | discontinued |
| 57 | 82397M |
ГАЙКОВАЯ КОРОНКА NUT CROWN |
2 | discontinued |
| 58 | 83511M |
НИЖНЕЕ КРЕПЛЕНИЕ ДЕМПФЕРА DAMPER LOWER MOUNT |
1 | discontinued |
| 59 | 83496M |
ВЕРХНЕЕ КРЕПЛЕНИЕ ДЕМПФЕРА DAMPER UPPER MOUNT |
1 | discontinued |
| 6 | 11832M |
ВИНТ SCREW |
1 | discontinued |
| 60 | 83497M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 61 | 82453M |
БОЛТ BOLT |
2 | superseded |
| 62 | 82389M |
ГАЙКА NUT |
2 | discontinued |
| 63 | 83910M |
КРЕПЛЕНИЕ ДЕМПФЕРА ВЕРХНЕЕ MOUNT DAMPER UPPER |
2 | superseded |
| 64 | 83501M |
БОЛТ BOLT |
2 | discontinued |
| 65 | 83911M |
ШАЙБА WASHER |
2 | discontinued |
| 66 | 83504M |
ШАЙБА WASHER |
2 | discontinued |
| 67 | 84295M |
ГАЙКА НЕЙЛОН NUT NYLON |
2 | discontinued |
| 68 | 83498M |
КРЫШКА ВЕРХНЕЕ КРЕПЛЕНИЕ COVER UPPER MOUNT |
2 | discontinued |
| 69 | 83499M |
КРЫШКА ВЕРХНЕЕ КРЕПЛЕНИЕ COVER UPPER MOUNT |
2 | discontinued |
| 7 | 17069M |
БОЛТ BOLT |
6 | discontinued |
| 70 | 83506M |
БОЛТ BOLT |
4 | discontinued |
| 71 | 82392M |
ГАЙКА NUT |
4 | superseded |
| 72 | 83505M |
УПЛОТНЕНИЕ РЕЗИНОВОЕ SEAL RUBBER |
2 | discontinued |
| 73 | 83912M |
КАП CAP |
2 | discontinued |
| 74 | 83507M |
ЗАЖИМ ШЛАНГА CLAMP HOSE |
2 | discontinued |
| 75 | 92619M |
ДЕРЖАТЕЛЬ СРЕЗНЫЙ ШТИФТ HOLDER SHEAR PIN |
1 | discontinued |
| 76 | 82217M |
ШАЙБА WASHER |
4 | discontinued |
| 77 | 17086M |
ВТУЛКА GROMMET |
1 | discontinued |
| 78 | 17087M |
ЗАЖИМ CLAMP |
1 | discontinued |
| 79 | 17088M |
ВИНТ SCREW |
1 | discontinued |
| 8 | 82218M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
6 | discontinued |
| 80 | 82214M |
ШАЙБА WASHER |
1 | discontinued |
| 81 | 17089M |
БОЛТ BOLT |
4 | discontinued |
| 82 | 83524M |
ШАЙБА WASHER |
8 | discontinued |
| 83 | 81812M |
ШАЙБА WASHER |
4 | discontinued |
| 84 | 17090M |
ГАЙКА NUT |
8 | discontinued |
| 85 | 82212M |
СТОПОРНАЯ ШАЙБА [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] и выше LOCKWASHER [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] & Up |
2 | discontinued |
| 9 | 9679M |
КРОНШТЕЙН ПОВОРОТНЫЙ BRACKET SWIVEL |
1 | discontinued |
