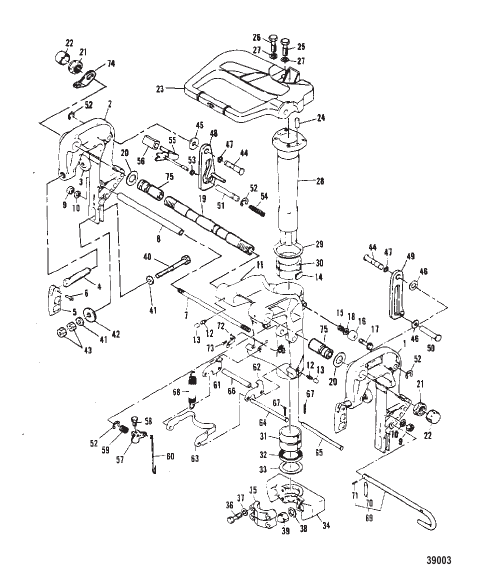

CLAMP AND SWIVEL BRACKET (MANUAL AND ELECTRIC)
Parts (81)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9822M |
ЗАЖИМ КРОНШТЕЙН Порт ЗАЖИМ (ПОРТ) [(M-008626, ML-311889, E-105664, EL-428358, ETL-502266] и ниже CLAMP BRACKET Port CLAMP (PORT) [(M-008626, ML-311889, E-105664, EL-428358, ETL-502266] & Below |
1 | discontinued |
| 1 | 8928M |
ЗАЖИМ КРОНШТЕЙНА (ПОРТ) [(M-008625, ML-311888, E-105663, EL-428357, ETL-502265] и ниже BRACKET CLAMP (PORT) [(M-008625, ML-311888, E-105663, EL-428357, ETL-502265] & Below |
1 | superseded |
| 10 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 11 | 9821M |
КРОНШТЕЙН ПОВОРОТНЫЙ [(M-008626, ML-311889, E-105664, EL-428358, ETL-502266] и выше BRACKET SWIVEL [(M-008626, ML-311889, E-105664, EL-428358, ETL-502266] & Up |
1 | discontinued |
| 11 | 6996M |
ПОВОРОТНЫЙ КРОНШТЕЙН [(M-008625, ML-311888, E-105663, EL-428357, ETL-502265] и ниже BRACKET SWIVEL [(M-008625, ML-311888, E-105663, EL-428357, ETL-502265] & Below |
1 | discontinued |
| 12 | 82369M |
ФИТИНГОВАЯ СМАЗКА FITTING GREASE |
4 | |
| 13 | 81439M |
КРЫШКА СМАЗОЧНАЯ ФИТИНГА CAP GREASE FITTING |
4 | discontinued |
| 14 | 80633M |
ТРЕНИЕ ПЛАСТИНЫ PLATE FRICTION |
1 | discontinued |
| 15 | 83488M |
ВЕСНА SPRING |
1 | discontinued |
| 16 | 83490M |
УПЛОТНЕНИЕ РЕЗИНОВОЕ SEAL RUBBER |
1 | discontinued |
| 17 | 43106M |
БОЛТ BOLT |
1 | discontinued |
| 18 | 82217M |
ШАЙБА WASHER |
1 | discontinued |
| 19 | 18974M |
БОЛТОВЫЙ ЗАЖИМ КРОНШТЕЙН [(M-008626, ML-311889, E-105664, EL-428358, ETL-502266] и выше BOLT CLAMP BRACKET [(M-008626, ML-311889, E-105664, EL-428358, ETL-502266] & Up |
1 | discontinued |
| 19 | 41312M |
БОЛТОВЫЙ ЗАЖИМ КРОНШТЕЙН [(M-008625, ML-311888, E-105663, EL-428357, ETL-502265] и ниже BOLT CLAMP BRACKET [(M-008625, ML-311888, E-105663, EL-428357, ETL-502265] & Below |
1 | discontinued |
| 2 | 9823M |
ЗАЖИМ ПРАВОГО БОРТА (ПРАВЫЙ БОРТ) [(M-008626, ML-311889, E-105664, EL-428358, ETL-502266] и вверх CLAMP BRACKET Starboard CLAMP (STARBOARD) [(M-008626, ML-311889, E-105664, EL-428358, ETL-502266] & Up |
1 | discontinued |
| 2 | 9684M |
ЗАЖИМ КРОНШТЕЙНА правого борта (ПРАВЫЙ БОРТ) [(M-008625, ML-311888, E-105663, EL-428357, ETL-502265] и ниже CLAMP BRACKET Starboard CLAMP (STARBOARD) [(M-008625, ML-311888, E-105663, EL-428357, ETL-502265] & Below |
1 | superseded |
| 20 | 81836M |
ШАЙБА WASHER |
2 | discontinued |
| 21 | 81787M |
ГАЙКА НЕЙЛОН NUT NYLON |
2 | superseded |
| 22 | 81388M |
КАП CAP |
2 | superseded |
| 23 | 83513M |
КРОНШТЕЙН РУЛЕВОЙ BRACKET STEERING |
1 | superseded |
| 24 | 82368M |
ШТИФТ-ДЮБЕЛЬ PIN DOWEL |
2 | discontinued |
| 25 | 95416M |
БОЛТ BOLT |
2 | discontinued |
| 26 | 82466M |
БОЛТ BOLT |
2 | superseded |
| 27 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
4 | discontinued |
| 28 | 83907M |
ШАРНИР РУЛЕВОГО ВАЛА SHAFT STEERING PIVOT |
1 | discontinued |
| 29 | 83482M |
ШАЙБА WASHER |
1 | discontinued |
| 3 | 80638M |
ЗАЖИМ ТРАНЕЦ НАКЛАДКИ PAD TRANSOM CLAMP |
2 | discontinued |
| 30 | 83483M |
ВТУЛКА BUSHING |
1 | discontinued |
| 31 | 83485M |
ВТУЛКА BUSHING |
1 | discontinued |
| 32 | 83486M |
УПЛОТНИТЕЛЬНОЕ масло SEAL Oil |
1 | discontinued |
| 33 | 83487M |
ШАЙБА WASHER |
1 | discontinued |
| 34 | 83492M |
НИЖНЕЕ КРЕПЛЕНИЕ КОРПУСА HOUSING LOWER MOUNT |
1 | superseded |
| 35 | 83491M |
НИЖНЕЕ КРЕПЛЕНИЕ КОРПУСА HOUSING LOWER MOUNT |
1 | discontinued |
| 36 | 82468M |
БОЛТ BOLT |
4 | superseded |
| 37 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
8 | discontinued |
| 38 | 84429M |
ШАЙБА WASHER |
4 | discontinued |
| 39 | 82397M |
ГАЙКОВАЯ КОРОНКА NUT CROWN |
2 | discontinued |
| 4 | 83481M |
ВИНТОВОЙ ЗАЖИМ ТРАНЕЦ SCREW TRANSOM CLAMP |
2 | discontinued |
| 40 | 84970M |
БОЛТ BOLT |
4 | discontinued |
| 41 | 82220M |
ШАЙБА WASHER |
8 | discontinued |
| 42 | 81812M |
ШАЙБА WASHER |
4 | discontinued |
| 43 | 82395M |
ГАЙКА NUT |
8 | discontinued |
| 44 | 83460M |
ПИН-код PIN |
2 | superseded |
| 45 | 83458M |
ШАЙБА WASHER |
1 | discontinued |
| 46 | 83462M |
ШАЙБА WASHER |
2 | discontinued |
| 47 | 83457M |
ВОЛНОВАЯ ШАЙБА WAVE WASHER |
2 | discontinued |
| 48 | 14278M |
СТОП НАКЛОНА (ПРАВЫЙ БОРТ – ДЛЯ НАКЛОНА НА 75 ГРАДУСОВ) STOP TILT (STARBOARD - FOR 75 DEGREE TILT) |
1 | discontinued |
| 48 | 42440M |
СТОП НАКЛОНА (ПРАВЫЙ БОРТ – ДЛЯ НАКЛОНА НА 70 ГРАДУСОВ) STOP TILT (STARBOARD - FOR 70 DEGREE TILT ) |
OPT | discontinued |
| 49 | 42441M |
СТОП НАКЛОН (ПОРТ - ДЛЯ НАКЛОНА 75 ГРАДУСОВ) STOP TILT (PORT - FOR 75 DEGREE TILT) |
1 | discontinued |
| 49 | 42442M |
СТОП НАКЛОН (ПОРТ - ДЛЯ НАКЛОНА НА 70 ГРАДУСОВ) STOP TILT (PORT - FOR 70 DEGREE TILT) |
OPT | discontinued |
| 5 | 11868M |
РУЧКА ФРАНЦЕВЫЙ ЗАЖИМ HANDLE TRANSOM CLAMP |
2 | discontinued |
| 50 | 83463M |
ПИН-код PIN |
1 | superseded |
| 51 | 83464M |
ВАЛ SHAFT |
1 | discontinued |
| 52 | 83461M |
КОЛЬЦО Snap RING Snap |
5 | discontinued |
| 53 | 83493M |
ШАЙБА WASHER |
1 | discontinued |
| 54 | 83909M |
СЖАТИЕ ПРУЖИНЫ SPRING COMPRESSION |
1 | discontinued |
| 55 | 14260M |
РЫЧАГ В СБОРЕ Наклон LEVER ASSEMBLY Tilt |
1 | discontinued |
| 56 | 81395M |
КРЫШКА COVER |
1 | discontinued |
| 57 | 83467M |
РЫЧАГ НАКЛОН LEVER TILT |
1 | discontinued |
| 58 | 82444M |
БОЛТ BOLT |
1 | superseded |
| 59 | 83465M |
ВЕСНА SPRING |
1 | discontinued |
| 6 | 81889M |
ПИН-код PIN |
2 | discontinued |
| 60 | 83468M |
ЗАМОК стержня ROD LOCK |
1 | discontinued |
| 61 | 83905M |
КРОНШТЕЙН ЗАМОК НАКЛОНА BRACKET TILT LOCK |
1 | discontinued |
| 62 | 83906M |
КРОНШТЕЙН ЗАМОК НАКЛОНА BRACKET TILT LOCK |
1 | discontinued |
| 63 | 83479M |
ЗАМОК НАКЛОНА TILT LOCK |
1 | discontinued |
| 64 | 83477M |
ПИН-код PIN |
1 | discontinued |
| 65 | 83478M |
ПИН-код PIN |
1 | discontinued |
| 66 | 83480M |
ПРОСТАВКА SPACER |
1 | discontinued |
| 67 | 82128M |
ПИН-КОТТЕР PIN COTTER |
4 | discontinued |
| 68 | 83476M |
ВЕСНА SPRING |
2 | discontinued |
| 69 | 83904M |
ШТИФТ В СБОРЕ Наклон PIN ASSEMBLY Tilt |
1 | superseded |
| 7 | 83472M |
ШПИЛЬКА STUD |
1 | discontinued |
| 70 | 84044M |
СТОППЕР ЗАМОК НАКЛОНА STOPPER TILT LOCK |
1 | discontinued |
| 71 | 82146M |
ПИН РОЛЛ PIN ROLL |
1 | discontinued |
| 72 | 83494M |
ВЕСНА SPRING |
1 | discontinued |
| 73 | 83495M |
ЗАКЛЕПКА RIVET |
1 | discontinued |
| 74 | 19111M |
КРОНШТЕЙН ЗАЖИМА ПЛАСТИНЫ [(M-008626, ML-311889, E-105664, EL-428358, ETL-502266] и выше PLATE CLAMP BRACKET [(M-008626, ML-311889, E-105664, EL-428358, ETL-502266] & Up |
1 | discontinued |
| 75 | 41313M |
ВТУЛКА [(M-008626, ML-311889, E-105664, EL-428358, ETL-502266] и выше BUSHING [(M-008626, ML-311889, E-105664, EL-428358, ETL-502266] & Up |
2 | discontinued |
| 8 | 83471M |
ПРОСТАВКА SPACER |
1 | superseded |
| 9 | 82392M |
ГАЙКА NUT |
2 | superseded |
