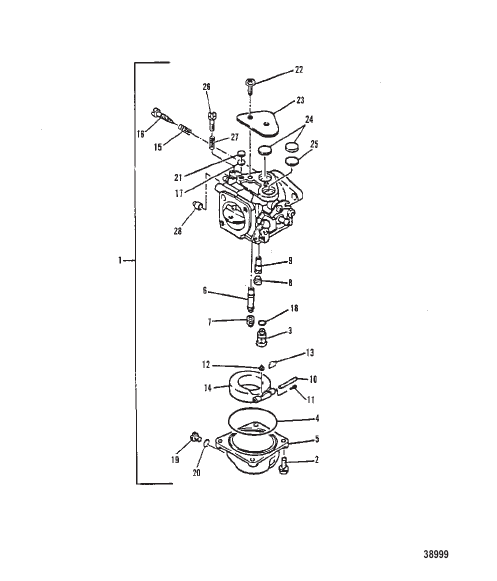

CARBURETOR
Parts (32)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 17068M |
РЕМКОМПЛЕКТ Карбюратора REPAIR KIT Carburetor |
1 | |
| 1 | 9660M |
КАРБЮРАТОР В СБОРЕ (ВЕРХНИЙ) CARBURETOR ASSEMBLY (UPPER) |
1 | discontinued |
| 1 | 9676M |
КАРБЮРАТОР В СБОРЕ (НИЖНИЙ) CARBURETOR ASSEMBLY (LOWER) |
1 | discontinued |
| 10 | 97730M |
PIN-ARM PIN ARM |
2 | discontinued |
| 11 | 97731M |
ВИНТ SCREW |
2 | superseded |
| 12 | 92639M |
ПИН-ПЛАВАТЕЛЬНЫЙ КЛАПАН PIN Float VALVE |
2 | |
| 13 | 82781M |
КЛИП CLIP |
2 | superseded |
| 14 | 83363M |
ПЛАВАТЬ FLOAT |
2 | superseded |
| 15 | 94499M |
ВЕСНА SPRING |
2 | discontinued |
| 16 | 17067M |
РЕГУЛИРОВОЧНЫЙ ВИНТ SCREW ADJUSTING |
2 | discontinued |
| 17 | 97732M |
ТАРЕЛКА PLATE |
2 | discontinued |
| 18 | 97070M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | |
| 19 | 81293M |
ВИНТ Дренаж SCREW Drain |
2 | discontinued |
| 2 | 83373M |
ВИНТ С ШАЙБОЙ SCREW WITH WASHER |
8 | superseded |
| 20 | 94498M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | |
| 21 | 97733M |
УПАКОВКА PACKING |
2 | discontinued |
| 22 | 19147M |
ВИНТ [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] и вверх SCREW [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] & Up |
4 | discontinued |
| 22 | 83371M |
ВИНТ [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] и ниже SCREW [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] & Below |
4 | discontinued |
| 23 | 97734M |
ТАРЕЛКА PLATE |
2 | discontinued |
| 24 | 97735M |
ПРОКЛАДКА GASKET |
4 | discontinued |
| 25 | 97736M |
ТАРЕЛКА PLATE |
2 | discontinued |
| 26 | 81277M |
ВИНТ-СТОПОР (НИЖНИЙ) SCREW STOP (LOWER) |
1 | discontinued |
| 27 | 82080M |
ПРУЖИНА (НИЖНЯЯ) SPRING (LOWER) |
1 | discontinued |
| 28 | 19233M |
ВТУЛКА (НИЖНЯЯ) [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] и вверху COLLAR (LOWER) [M-008626, ML-311889, E-105664, EL-428358, ETL-502266] & Up |
1 | discontinued |
| 28 | 83370M |
ВТУЛКА (НИЖНЯЯ) (M-008625 ML-311888 E-105663 EL-428357 ETL-5 ETL-502265 НИЖЕ [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] и ниже COLLAR (LOWER) (M-008625 ML-311888 E-105663 EL-428357 ETL-5 ETL-502265 BELOW [M-008625, ML-311888, E-105663, EL-428357, ETL-502265] & Below |
1 | discontinued |
| 3 | 17050M |
КОМПЛЕКТ ИГОЛЬЧАТЫХ КЛАПАНОВ NEEDLE VALVE SET |
2 | |
| 4 | 83362M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | discontinued |
| 5 | 94495M |
КОРПУС ПОПЛАВОЧНАЯ КАМЕРА BODY FLOAT CHAMBER |
2 | discontinued |
| 6 | 97727M |
СОПЛО ГЛАВНОЕ NOZZLE MAIN |
2 | discontinued |
| 7 | 42437M |
ЖУРНАЛ ГЛАВНЫЙ (#170) JET MAIN (# 170) |
2 | discontinued |
| 8 | 83369M |
КАП CAP |
2 | superseded |
| 9 | 42438M |
СТРУЯ МЕДЛЕННАЯ (# 75) JET SLOW (# 75) |
2 | discontinued |
