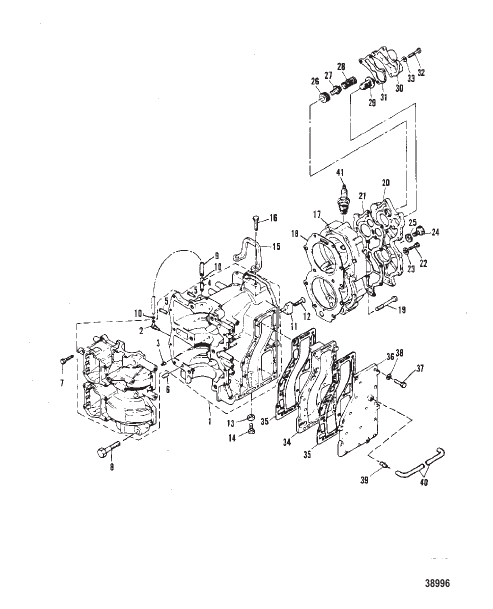

CRANKCASE AND CYLINDER HEAD
Parts (43)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 97666M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET POWERHEAD |
1 | discontinued |
| - | 95415M |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | discontinued |
| 1 | 8561M |
КАРТЕР В СБОРЕ CRANKCASE ASSEMBLY |
1 | discontinued |
| 10 | 80246M |
ЗАЖИМ CLAMP |
2 | discontinued |
| 11 | 83330M |
АНОД ANODE |
1 | discontinued |
| 12 | 82168M |
ВИНТ SCREW |
1 | discontinued |
| 13 | 14277M |
АНОД ANODE |
1 | superseded |
| 14 | 91725M |
БОЛТ BOLT |
1 | superseded |
| 15 | 83331M |
ПОДЪЕМ ДВИГАТЕЛЯ ГЛАЗ EYE ENGINE LIFTING |
1 | superseded |
| 16 | 82438M |
БОЛТ BOLT |
2 | discontinued |
| 17 | 8562M |
ГОЛОВНОЙ цилиндр HEAD Cylinder |
1 | discontinued |
| 18 | 95414M |
ПРОКЛАДКА ГОЛОВКИ ЦИЛИНДРА GASKET CYLINDER HEAD |
1 | superseded |
| 19 | 41884M |
БОЛТ (M8 x 55) С ШАЙБОЙ BOLT (M8 x 55) WITH WASHER |
11 | superseded |
| 2 | 80727M |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
1 | discontinued |
| 20 | 97703M |
КРЫШКА ГОЛОВКИ ЦИЛИНДРА COVER CYLINDER HEAD |
1 | discontinued |
| 21 | 97704M |
ПРОКЛАДКА КРЫШКИ ГОЛОВКИ GASKET HEAD COVER |
1 | discontinued |
| 22 | 83539M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
11 | superseded |
| 23 | 82214M |
ШАЙБА WASHER |
11 | discontinued |
| 24 | 81926M |
ПРОБКА PLUG |
1 | discontinued |
| 25 | 81990M |
ПРОКЛАДКА-ПРОБКА GASKET PLUG |
1 | discontinued |
| 26 | 82067M |
ВТУЛКА GROMMET |
1 | discontinued |
| 27 | 81267M |
УПРАВЛЕНИЕ ДАВЛЕНИЕМ КЛАПАНА VALVE PRESSURE CONTROL |
1 | discontinued |
| 28 | 83340M |
ВЕСНА SPRING |
1 | discontinued |
| 29 | 11752M |
ТЕРМОСТАТ THERMOSTAT |
1 | superseded |
| 3 | 81258M |
ШТИФТ-ДЮБЕЛЬ PIN DOWEL |
2 | discontinued |
| 30 | 97705M |
КРЫШКА ТЕРМОСТАТА COVER THERMOSTAT |
1 | discontinued |
| 31 | 97706M |
ПРОКЛАДКА ТЕРМОСТАТА GASKET THERMOSTAT |
1 | superseded |
| 32 | 84237M |
БОЛТ BOLT |
4 | superseded |
| 33 | 82214M |
ШАЙБА WASHER |
4 | discontinued |
| 34 | 97707M |
ВНУТРЕННЯЯ КРЫШКА ВЫПУСКА INNER COVER EXHAUST |
1 | discontinued |
| 35 | 83338M |
ПРОКЛАДКА ВЫХЛОПНОЙ КРЫШКИ GASKET EXHAUST COVER |
2 | superseded |
| 36 | 97708M |
ВНЕШНЯЯ КРЫШКА OUTER COVER EXHAUST |
1 | discontinued |
| 37 | 82405M |
БОЛТ BOLT |
16 | discontinued |
| 38 | 82214M |
ШАЙБА WASHER |
16 | discontinued |
| 39 | 80756M |
ПОДХОДЯЩАЯ ВОДА FITTING WATER |
1 | superseded |
| 4 | 80122M |
ФИТИНГ ДРЕНАЖНЫЙ FITTING DRAIN |
1 | discontinued |
| 40 | 94479M |
ШЛАНГ HOSE |
1 | discontinued |
| 41 | 82372M |
СВЕЧА ЗАЖИГАНИЯ SPARK PLUG |
2 | superseded |
| 5 | 83329M |
ФИТИНГ ДРЕНАЖНЫЙ FITTING DRAIN |
2 | discontinued |
| 6 | 82368M |
ШТИФТ-ДЮБЕЛЬ PIN DOWEL |
2 | discontinued |
| 7 | 41837M |
БОЛТ С ШАЙБОЙ BOLT WITH WASHER |
9 | discontinued |
| 8 | 95413M |
БОЛТ BOLT |
6 | discontinued |
| 9 | 83328M |
ШЛАНГ HOSE |
1 | discontinued |
