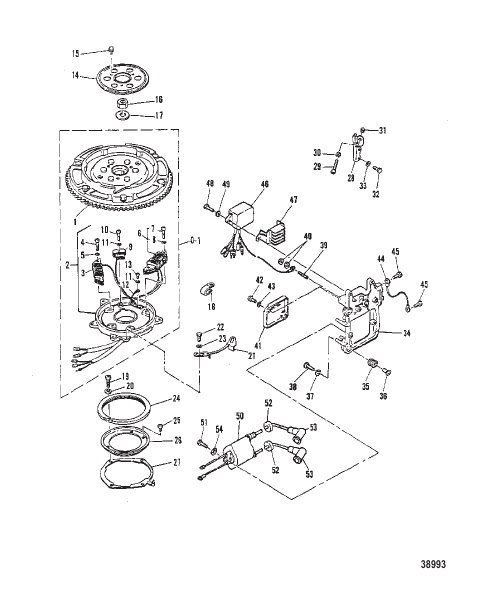

C.D.I. MAGNETO IGNITION
Parts (58)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 0-1 | 7985M |
МАГНЕТО CDI В СБОРЕ CDI MAGNETO ASSEMBLY |
1 | discontinued |
| 1 | 7987M |
МАХОВИК В СБОРЕ (E, EL И ET) FLYWHEEL ASSEMBLY (E, EL AND ET) |
1 | discontinued |
| 1 | 7988M |
МАХОВИК В СБОРЕ (M И ML) FLYWHEEL ASSEMBLY (M AND ML) |
1 | discontinued |
| 10 | 84882M |
ВИНТ SCREW |
2 | discontinued |
| 11 | 82184M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
3 | superseded |
| 12 | 84883M |
ПРОВОД WIRE |
1 | discontinued |
| 13 | 82499M |
ВИНТ SCREW |
1 | discontinued |
| 14 | 93109M |
КРЫШКА COVER |
1 | discontinued |
| 15 | 93110M |
БОЛТ BOLT |
3 | discontinued |
| 16 | 81773M |
ГАЙКА NUT |
1 | superseded |
| 17 | 84436M |
ШАЙБА WASHER |
1 | superseded |
| 18 | 82042M |
ЗАЖИМ CLAMP |
2 | discontinued |
| 19 | 14232M |
ВИНТ SCREW |
4 | discontinued |
| 2 | 93108M |
МАХОВИК ОСНОВАНИЯ В СБОРЕ BASE ASSEMBLY FLYWHEEL |
1 | discontinued |
| 20 | 82208M |
ШАЙБА WASHER |
4 | superseded |
| 21 | 97679M |
СТОП МАГНЕТО БАЗА STOP MAGNETO BASE |
1 | discontinued |
| 22 | 84315M |
БОЛТ BOLT |
2 | superseded |
| 23 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 24 | 83566M |
ФИКСАТОР МАГНЕТО ОСНОВАНИЕ RETAINER MAGNETO BASE |
1 | discontinued |
| 25 | 42761M |
ВИНТ SCREW |
4 | superseded |
| 26 | 19139M |
ФИКСАТОР МАГНИТНОГО ОСНОВАНИЯ [(M-008626 ML-311889 E-105664 EL-428358, ETL-502266 ] и выше RETAINER MAGNETO BASE [(M-008626 ML-311889 E-105664 EL-428358, ETL-502266 ] & Up |
1 | discontinued |
| 26 | 83567M |
ФИКСАТОР МАГНИТНОГО ОСНОВАНИЯ [(M-008625 ML-311888 E-105663 EL-428357, ETL-502265 ] и ниже RETAINER MAGNETO BASE [(M-008625 ML-311888 E-105663 EL-428357, ETL-502265 ] & Below |
1 | superseded |
| 27 | 83569M |
ТРЕНИЕ ОСНОВАНИЯ ПЛАСТИНЫ PLATE BASE FRICTION |
1 | discontinued |
| 28 | 83579M |
СТОП МАГНЕТО БАЗА STOP MAGNETO BASE |
1 | discontinued |
| 29 | 83924M |
ВИНТ SCREW |
1 | discontinued |
| 3 | 84879M |
КАТУШКА ЗАЖИГАНИЯ COIL IGNITION |
1 | superseded |
| 30 | 82381M |
ГАЙКА NUT |
1 | superseded |
| 31 | 81415M |
КАП CAP |
1 | discontinued |
| 32 | 84247M |
БОЛТ BOLT |
2 | superseded |
| 33 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 34 | 93113M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 35 | 93114M |
ДЕМПФЕР DAMPER |
3 | superseded |
| 36 | 82851M |
ВТУЛКА BUSHING |
3 | superseded |
| 37 | 82979M |
ШАЙБА WASHER |
3 | superseded |
| 38 | 82405M |
БОЛТ BOLT |
3 | discontinued |
| 39 | 84870M |
ШПИЛЬКА STUD |
1 | discontinued |
| 4 | 84480M |
ВИНТ SCREW |
2 | discontinued |
| 40 | 82380M |
ГАЙКА NUT |
2 | superseded |
| 41 | 93115M |
КРЫШКА COVER |
1 | discontinued |
| 42 | 83356M |
ВИНТ SCREW |
2 | discontinued |
| 43 | 82211M |
ШАЙБА WASHER |
2 | discontinued |
| 44 | 81250M |
ПРОВОД ЗАЗЕМЛЕНИЯ WIRE GROUND |
1 | discontinued |
| 45 | 84303M |
БОЛТ BOLT |
2 | superseded |
| 46 | 84872M |
БЛОК CDI В СБОРЕ CDI UNIT ASSEMBLY |
1 | superseded |
| 47 | 93116M |
ДЕРЖАТЕЛЬ HOLDER |
1 | discontinued |
| 48 | 82405M |
БОЛТ BOLT |
2 | discontinued |
| 49 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 5 | 82186M |
ШАЙБА WASHER |
2 | discontinued |
| 50 | 84874M |
КАТУШКА зажигания COIL Ignition |
1 | superseded |
| 51 | 82405M |
БОЛТ BOLT |
2 | discontinued |
| 52 | 82069M |
ВТУЛКА GROMMET |
2 | discontinued |
| 53 | 84319M |
CAP Свеча зажигания (STD) CAP Spark Plug (STD) |
2 | superseded |
| 53 | 82788M |
КРЫШКА В СБОРЕ Свеча зажигания (ОПТ) CAP ASSEMBLY Spark Plug (OPT) |
2 | superseded |
| 54 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 6 | 93049M |
КАТУШКА ОСВЕЩЕНИЯ В СБОРЕ COIL ASSEMBLY LIGHTING |
1 | discontinued |
| 7 | 84880M |
ВИНТ SCREW |
2 | superseded |
| 8 | 82186M |
ШАЙБА WASHER |
2 | discontinued |
| 9 | 84877M |
ПУЛЬСЕР PULSER |
1 | discontinued |
