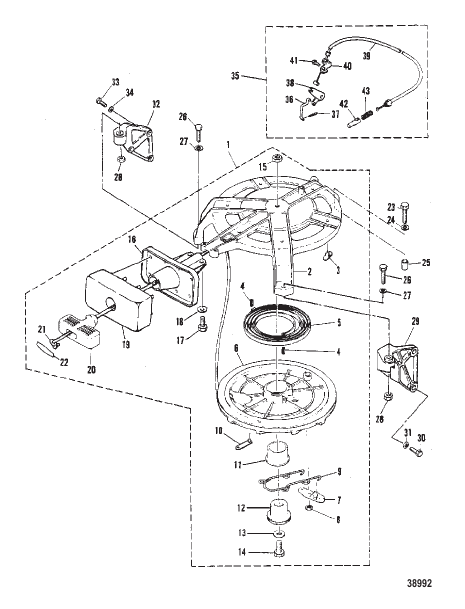

RECOIL STARTER
Parts (43)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 7101M |
СТАРТЕР В СБОРЕ Отдача (M И ML) STARTER ASSEMBLY Recoil (M AND ML) |
1 | discontinued |
| 10 | 84893M |
КЛИП CLIP |
1 | discontinued |
| 11 | 83589M |
ВТУЛКА BUSHING |
1 | discontinued |
| 12 | 83590M |
ВАЛ SHAFT |
1 | discontinued |
| 13 | 81801M |
ШАЙБА WASHER |
1 | discontinued |
| 14 | 84342M |
БОЛТ BOLT |
1 | discontinued |
| 15 | 82382M |
ГАЙКА NUT |
1 | discontinued |
| 16 | 83583M |
НАПРАВЛЯЮЩАЯ СТАРТЕРНАЯ ВЕРЕВКА GUIDE STARTER ROPE |
1 | discontinued |
| 17 | 84247M |
БОЛТ BOLT |
2 | superseded |
| 18 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 19 | 93107M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 2 | 7102M |
КОРПУС СТАРТЕР HOUSING STARTER |
1 | superseded |
| 20 | 80063M |
РУЧКА СТАРТЕРА HANDLE STARTER |
1 | superseded |
| 21 | 79629A1 |
ВЕРЕВКА Стартер ROPE Starter |
1 | superseded |
| 22 | 41882M |
КРЫШКА COVER |
1 | discontinued |
| 23 | 84236M |
БОЛТ BOLT |
1 | discontinued |
| 24 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 25 | 14229M |
ПИН-код PIN |
1 | discontinued |
| 26 | 84237M |
БОЛТ (М И ML) BOLT (M AND ML) |
2 | superseded |
| 27 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 28 | 82380M |
ГАЙКА (М И МЛ) NUT (M AND ML) |
2 | superseded |
| 29 | 97678M |
КРОНШТЕЙН (ПОРТ) BRACKET (PORT) |
1 | discontinued |
| 3 | 83585M |
ПРОБКА PLUG |
6 | discontinued |
| 30 | 82441M |
БОЛТ BOLT |
3 | discontinued |
| 31 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
3 | discontinued |
| 32 | 83593M |
КРОНШТЕЙН (ПРАВЫЙ БОРТ) BRACKET (STARBOARD) |
1 | discontinued |
| 33 | 82405M |
БОЛТ BOLT |
3 | discontinued |
| 34 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
3 | discontinued |
| 35 | 93105M |
БЛОКИРОВКА БЛОКИРОВКИ Безопасность LOCKOUT ASSEMBLY Safety |
1 | discontinued |
| 36 | 83595M |
стержень ROD |
1 | discontinued |
| 37 | 82125M |
ШПИЛЬНИК COTTER PIN |
1 | discontinued |
| 38 | 83596M |
РЫЧАГ LEVER |
1 | discontinued |
| 39 | 83597M |
КАБЕЛЬ СТАРТЕР-СТОП CABLE STARTER STOP |
1 | discontinued |
| 4 | 82157M |
ПИН РОЛЛ PIN ROLL |
2 | discontinued |
| 40 | 93106M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 41 | 84303M |
БОЛТ BOLT |
1 | superseded |
| 42 | 81106M |
ПЛУНЖЕР СТАРТЕР-СТОП PLUNGER STARTER STOP |
1 | discontinued |
| 43 | 82079M |
ВЕСНА SPRING |
1 | discontinued |
| 5 | 83588M |
ВЕСЕННИЙ СТАРТЕР SPRING STARTER |
1 | |
| 6 | 83587M |
ШКИВ Стартера SHEAVE Starter |
1 | discontinued |
| 7 | 84894M |
собачка привод PAWL DRIVE |
1 | |
| 8 | 84895M |
КОЛЬЦО Snap RING Snap |
1 | discontinued |
| 9 | 83591M |
ПРУЖИННАЯ ПРИВОДНАЯ ЗАЩИЛКА SPRING DRIVE PAWL |
1 | discontinued |
