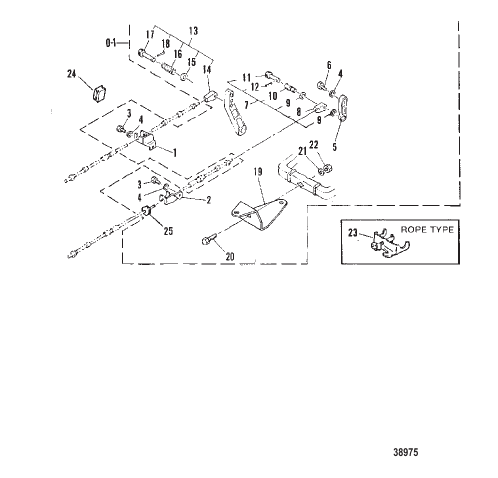

REMOTE CONTROL ATTACHING KIT
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 43991A1 |
КОМПЛЕКТ КРЕПЕЖА РОЛИКОВОГО ТИПА ATTACHING KIT BALL POST TYPE |
1 | discontinued |
| 1 | 84221M |
КРОНШТЕЙН ПЕРЕКЛЮЧЕНИЕ РЕВЕРСА BRACKET GEAR SHIFT |
1 | discontinued |
| 10 | 83725M |
ПРУЖИНА SPRING |
1 | discontinued |
| 11 | 814499M |
КРЮК [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up HOOK [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up |
1 | discontinued |
| 11 | 83726M |
КРЮК [M-033627, ML-332851, MUL-700270, E-109304, EL-420574] & Below HOOK [M-033627, ML-332851, MUL-700270, E-109304, EL-420574] & Below |
1 | superseded |
| 12 | 82146M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 13 | 83719M |
ОКОНЕЧНЫЙ Кабель ПЕРЕКЛЮЧЕНИЕ РЕВЕРСА END Cable SHIFT |
1 | discontinued |
| 14 | 83720M |
ОКОНЕЧНЫЙ Кабель END Cable |
1 | |
| 15 | 82216M |
ШАЙБА WASHER |
1 | discontinued |
| 16 | 83721M |
ПРУЖИНА SPRING |
1 | discontinued |
| 17 | 814500M |
КРЮК [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up HOOK [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up |
1 | discontinued |
| 17 | 83722M |
КРЮК [M-033627, ML-332851, MUL-700270, E-109304, EL-420574] & Below HOOK [M-033627, ML-332851, MUL-700270, E-109304, EL-420574] & Below |
1 | superseded |
| 18 | 82146M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 19 | 91635M |
КРОНШТЕЙН РУЛЕВОЙ МЕХАНИЗМ BRACKET STEERING |
1 | discontinued |
| 2 | 83717M |
КРОНШТЕЙН ДРОССЕЛЬНАЯ ЗАСЛОНКА BRACKET THROTTLE |
1 | discontinued |
| 20 | 91636M |
БОЛТ BOLT |
1 | discontinued |
| 21 | 82220M |
ШАЙБА WASHER |
1 | discontinued |
| 22 | 81785M |
КОНТРГАЙКА LOCKNUT |
1 | discontinued |
| 23 | 83727M |
КРОНШТЕЙН (ТИП ТРОСА) BRACKET (ROPE TYPE) |
1 | discontinued |
| 24 | 83728M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
OPT | discontinued |
| 25 | 97031M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up GROMMET [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up |
1 | discontinued |
| 3 | 91725M |
БОЛТ BOLT |
2 | superseded |
| 4 | 82214M |
ШАЙБА WASHER |
3 | discontinued |
| 5 | 84222M |
РЫЧАГ Дроссельная заслонка LEVER Throttle |
1 | discontinued |
| 6 | 91772M |
БОЛТ BOLT |
1 | discontinued |
| 7 | 83723M |
ОКОНЕЧНЫЙ Кабель ДРОССЕЛЬНАЯ ЗАСЛОНКА END Cable THROTTLE |
1 | |
| 8 | 83724M |
ОКОНЕЧНЫЙ Кабель END Cable |
1 | discontinued |
| 9 | 82216M |
ШАЙБА WASHER |
2 | discontinued |
