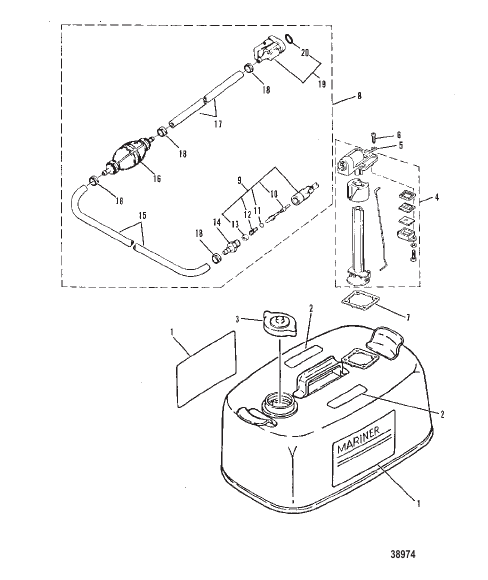

FUEL TANK AND FUEL LINE ASSEMBLY (ORIGINAL EQUIPMENT) 24 LIT
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 14617M |
НАКЛЕЙКА БОКОВОЙ (АНГЛИЙСКИЙ) [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up DECAL SIDE (ENGLISH) [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up |
1 | discontinued |
| 1 | 95504M |
НАКЛЕЙКА БОКОВОЙ (АНГЛИЙСКИЙ) [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up DECAL SIDE (ENGLISH) [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up |
1 | discontinued |
| 1 | 14617M |
НАКЛЕЙКА БОКОВОЙ (АНГЛИЙСКИЙ) [M-033627, ML-332851, MUL-700270, E-109304, EL-420574] & Below DECAL SIDE (ENGLISH) [M-033627, ML-332851, MUL-700270, E-109304, EL-420574] & Below |
1 | discontinued |
| 1 | 95504M |
НАКЛЕЙКА БОКОВОЙ (ФРАНЦУЗСКИЙ) DECAL SIDE (FRENCH) |
1 | discontinued |
| 10 | 30187 |
ШТОК ШТЫКОВОЕ СОЕДИНЕНИЕ КОРПУСА STEM BAYONET BODY |
1 | discontinued |
| 11 | 20415 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО ШТОК ШТЫКОВОГО СОЕДИНЕНИЯ КОРПУСА O-RING BAYONET BODY STEM |
1 | superseded |
| 12 | 30189 |
ПРУЖИНА SPRING |
1 | |
| 13 | 30188 |
ШАЙБА КОЛПАЧОК WASHER CAP |
1 | |
| 14 | 63187 |
ФИТИНГ Ниппель (0.250-18) ТОПЛИВОПРОВОД FITTING Barb (.250-18) FUEL LINE |
1 | |
| 15 | 16571M |
РУКАВ КОРПУС СОЕДИНИТЕЛЯ К ГРУШЕ [M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256] & Up HOSE CONNECTOR HOUSING TO BULB [M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256] & Up |
1 | discontinued |
| 15 | 14210M |
РУКАВ КОРПУС СОЕДИНИТЕЛЯ К ГРУШЕ [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUK-620236] THRU [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] HOSE CONNECTOR HOUSING TO BULB [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUK-620236] THRU [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] |
1 | superseded |
| 15 | 84955M |
РУКАВ КОРПУС СОЕДИНИТЕЛЯ К ГРУШЕ [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUK-620235] & Below HOSE CONNECTOR HOUSING TO BULB [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUK-620235] & Below |
1 | superseded |
| 16 | 16572M |
ЛАМПА ЗАЛИВОЧНЫЙ НАСОС [M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256] & Up BULB PRIMER [M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256] & Up |
1 | superseded |
| 16 | 14211M |
ЛАМПА Насос заливки топлива ЗАЛИВОЧНЫЙ НАСОС [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below BULB Fuel Primer PRIMER [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below |
1 | superseded |
| 17 | 14212M |
РУКАВ ЛАМПА К СОЕДИНИТЕЛЮ ДВИГАТЕЛЯ [M-026304, ML-325084, MUL601286, E-107089, EL-415058, EUL-620236] THRU [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] HOSE BULB TO ENGINE CONNECTOR [M-026304, ML-325084, MUL601286, E-107089, EL-415058, EUL-620236] THRU [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] |
1 | superseded |
| 17 | 82023M |
РУКАВ ЛАМПА К СОЕДИНИТЕЛЮ ДВИГАТЕЛЯ [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUK-620235] & Below HOSE BULB TO ENGINE CONNECTOR [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUK-620235] & Below |
1 | superseded |
| 18 | 18855M |
ЗАЖИМ ШЛАНГ [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up CLAMP HOSE [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up |
4 | superseded |
| 18 | 16574M |
ЗАЖИМ ШЛАНГ [M-028487, ML-327903, MUL-601456, E-107929, EL-417075] THRU [M-033627, ML-332851, MUL-700270, E-109304, EL-420574] CLAMP HOSE [M-028487, ML-327903, MUL-601456, E-107929, EL-417075] THRU [M-033627, ML-332851, MUL-700270, E-109304, EL-420574] |
4 | discontinued |
| 18 | 80752M |
ЗАЖИМ ШЛАНГ [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below CLAMP HOSE [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below |
4 | superseded |
| 19 | 16609M |
СОЕДИНИТЕЛЬ Топливо СТОРОНА ДВИГАТЕЛЯ [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up CONNECTOR Fuel ENGINE END [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up |
1 | superseded |
| 19 | 16610M |
СОЕДИНИТЕЛЬ Топливо СТОРОНА ДВИГАТЕЛЯ [M-028487, ML-327903, MUL-601456, E-107929, EL-417075] THRU [M-033627, ML-332851, MUL-700270, E-109304, EL-420574] CONNECTOR Fuel ENGINE END [M-028487, ML-327903, MUL-601456, E-107929, EL-417075] THRU [M-033627, ML-332851, MUL-700270, E-109304, EL-420574] |
1 | superseded |
| 19 | 14213M |
СОЕДИНИТЕЛЬ Топливо СТОРОНА ДВИГАТЕЛЯ [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below CONNECTOR Fuel ENGINE END [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below |
1 | superseded |
| 2 | 95489M |
НАКЛЕЙКА ВЕРХНЯЯ ЧАСТЬ (АНГЛ.) DECAL TOP (ENGLISH) |
1 | discontinued |
| 2 | 95503M |
НАКЛЕЙКА ВЕРХНЯЯ ЧАСТЬ (ФРАНЦ.) DECAL TOP (FRENCH) |
1 | discontinued |
| 20 | 82789M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below O-RING [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below |
1 | discontinued |
| 3 | 18962M |
ПРОБКА Топливный бак [M-030662, ML-329959, E-108559, EL-418520] & Up CAP Fuel Tank [M-030662, ML-329959, E-108559, EL-418520] & Up |
1 | |
| 3 | 14223M |
КОЛПАЧОК В СБОРЕ Топливный бак [M-030661, ML-329958, E-108558, EL-418519] & Below CAP ASSEMBLY Fuel Tank [M-030661, ML-329958, E-108558, EL-418519] & Below |
1 | superseded |
| 4 | 95499M |
ИЗМЕРИТЕЛЬ В СБОРЕ Топливо METER ASSEMBLY Fuel |
1 | discontinued |
| 5 | 95501M |
УПЛОТНЕНИЕ SEAL |
4 | discontinued |
| 6 | 95502M |
ВИНТ SCREW |
4 | discontinued |
| 7 | 95500M |
ПРОКЛАДКА ТОПЛИВНЫЙ РАСХОДОМЕР В СБОРЕ GASKET FUEL METER ASS"Y |
1 | discontinued |
| 8 | 18925M |
ТРУБОПРОВОД В СБОРЕ Топливо [M-030662, ML-329959, E-108559, EL-418520] & Up LINE ASSEMBLY Fuel [M-030662, ML-329959, E-108559, EL-418520] & Up |
1 | superseded |
| 8 | 16570M |
ТРУБОПРОВОД В СБОРЕ Топливо [M-030661, ML-329958, E-108558, EL-418519] & Below LINE ASSEMBLY Fuel [M-030661, ML-329958, E-108558, EL-418519] & Below |
1 | superseded |
| 9 | 30185A3 |
ШТЫК В СБОРЕ Топливо BAYONET ASSEMBLY Fuel |
1 | superseded |
