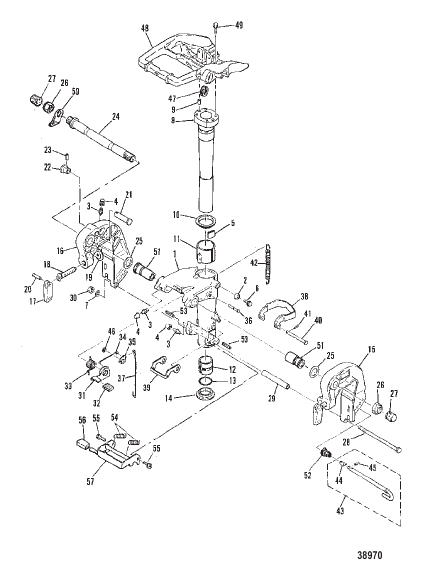

CLAMP AND SWIVEL BRACKET/REVERSE LOCK
Parts (64)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9792M |
ПОВОРОТНЫЙ КРОНШТЕЙН [M-030662, ML-329959, E-108559, EL-418520] & Up SWIVEL BRACKET [M-030662, ML-329959, E-108559, EL-418520] & Up |
1 | discontinued |
| 1 | 9246M |
ПОВОРОТНЫЙ КРОНШТЕЙН [M-030661, ML-329958, E-108558, EL-418519] & Below SWIVEL BRACKET [M-030661, ML-329958, E-108558, EL-418519] & Below |
1 | discontinued |
| 10 | 81873M |
ШАЙБА WASHER |
1 | discontinued |
| 11 | 81964M |
ВТУЛКА ВАЛ ШАРНИРА (ВЕРХНИЙ) BUSHING PIVOT SHAFT (UPPER) |
1 | discontinued |
| 12 | 81961M |
ВТУЛКА ВАЛ ШАРНИРА (НИЖНИЙ) BUSHING PIVOT SHAFT (LOWER) |
1 | discontinued |
| 13 | 82274M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО ВТУЛКА ВАЛА ШАРНИРА O-RING PIVOT SHAFT BUSHING |
1 | discontinued |
| 14 | 81959M |
ВТУЛКА BUSHING |
1 | discontinued |
| 15 | 9797M |
КРОНШТЕЙН ФИКСАТОР (ЛЕВЫЙ БОРТ) [M-030662, ML-329959, E-108559, EL-418520] & Up BRACKET CLAMP (PORT) [M-030662, ML-329959, E-108559, EL-418520] & Up |
1 | discontinued |
| 15 | 8245M |
КРОНШТЕЙН ФИКСАТОР (ЛЕВЫЙ БОРТ) [M-030661, ML-329958, E-108558, EL-418519] & Below BRACKET CLAMP (PORT) [M-030661, ML-329958, E-108558, EL-418519] & Below |
1 | superseded |
| 16 | 9798M |
КРОНШТЕЙН ФИКСАТОР (ПРАВЫЙ БОРТ) [M-030662, ML-329959, E-108559, EL-418520] & Up BRACKET CLAMP (STARBOARD) [M-030662, ML-329959, E-108559, EL-418520] & Up |
1 | discontinued |
| 16 | 8246M |
КРОНШТЕЙН ФИКСАТОР (ПРАВЫЙ БОРТ) [M-030661, ML-329958, E-108558, EL-418519] & Below BRACKET CLAMP (STARBOARD) [M-030661, ML-329958, E-108558, EL-418519] & Below |
1 | discontinued |
| 17 | 80048M |
РУКОЯТКА ПРИЖИМНОЙ ВИНТ ТРАНЦА HANDLE TRANSOM CLAMP SCREW |
2 | superseded |
| 18 | 81756M |
ВИНТ ПРИЖИМНОЙ ВИНТ ТРАНЦА SCREW TRANSOME CLAMP SCREW |
2 | discontinued |
| 19 | 80638M |
НАКЛАДКА ПРИЖИМНОЙ ВИНТ ТРАНЦА PAD TRANSOM CLAMP SCREW |
2 | discontinued |
| 2 | 91637M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 20 | 81888M |
ШТИФТ РОЛИК PIN ROLL |
2 | discontinued |
| 21 | 84835M |
ВАЛ ОГРАНИЧИТЕЛЬ НАКЛОНА SHAFT TILT SHOP |
1 | discontinued |
| 22 | 95650M |
РУЧКА ВАЛ ОГРАНИЧИТЕЛЯ НАКЛОНА KNOB TILT STOP SHAFT |
1 | discontinued |
| 23 | 82148M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 24 | 18974M |
БОЛТ РУЛЕВОЙ МЕХАНИЗМ [M-030662, ML-329959, E-108559, EL-418520] & Up BOLT STEERING [M-030662, ML-329959, E-108559, EL-418520] & Up |
1 | discontinued |
| 24 | 91639M |
БОЛТ РУЛЕВОЙ МЕХАНИЗМ [M-030661, ML-329958, E-108558, EL-418519] & Below BOLT STEERING [M-030661, ML-329958, E-108558, EL-418519] & Below |
1 | discontinued |
| 25 | 81836M |
ШАЙБА WASHER |
2 | discontinued |
| 26 | 81787M |
ГАЙКА NUT |
2 | superseded |
| 27 | 81388M |
ПРОБКА CAP |
2 | superseded |
| 28 | 82924M |
БОЛТ BOLT |
1 | discontinued |
| 29 | 19108M |
ПРОСТАВКА КРОНШТЕЙН ФИКСАТОРА [M-030662, ML-329959, E-108559, EL-418520] & Up SPACER CLAMP BRACKET [M-030662, ML-329959, E-108559, EL-418520] & Up |
1 | discontinued |
| 29 | 81979M |
ПРОСТАВКА КРОНШТЕЙН ФИКСАТОРА [M-030661, ML-329958, E-108558, EL-418519] & Below SPACER CLAMP BRACKET [M-030661, ML-329958, E-108558, EL-418519] & Below |
1 | superseded |
| 3 | 82369M |
ФИТИНГ СМАЗКА FITTING GREASE |
4 | |
| 30 | 82692M |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
1 | discontinued |
| 31 | 91640M |
РЫЧАГ БЛОКИРОВКА/РАЗБЛОКИРОВКА LEVER LOCK/RELEASE |
1 | discontinued |
| 32 | 91641M |
КРЫШКА РЫЧАГ COVER LEVER |
1 | discontinued |
| 33 | 91642M |
ПРУЖИНА НАТЯЖЕНИЕ SPRING TENSION |
1 | discontinued |
| 34 | 91643M |
СОЕДИНИТЕЛЬ РУКОЯТКА ФИКСАТОРА РЕВЕРСА LINK REVERSE LOCK LEVER |
1 | discontinued |
| 35 | 80648M |
КУЛАЧОК НАКЛОН CAM TILT |
1 | discontinued |
| 36 | 19109M |
ШТИФТ PIN |
1 | discontinued |
| 37 | 80645M |
ШТОК РУКОЯТКА ФИКСАТОРА РЕВЕРСА ROD REVERSE LOCK LEVER |
1 | discontinued |
| 38 | 84837M |
КРЮК ФИКСАТОР РЕВЕРСА (ЗАДНИЙ) HOOK REVERSE LOCK (REAR) |
1 | discontinued |
| 39 | 80643M |
КРЮК ФИКСАТОР РЕВЕРСА (ПЕРЕДНИЙ) HOOK REVERSE LOCK (FRONT) |
1 | discontinued |
| 4 | 81439M |
ПРОБКА МАСЛЕНКА CAP GREASE FITTING |
4 | discontinued |
| 40 | 81882M |
ШТИФТ PIN |
1 | discontinued |
| 41 | 82125M |
ШПЛИНТ COTTER PIN |
1 | discontinued |
| 42 | 82105M |
ПРУЖИНА ФИКСАТОР РЕВЕРСА SPRING REVERSE LOCK |
1 | superseded |
| 42 | 19110M |
ПРУЖИНА ФИКСАТОР РЕВЕРСА SPRING REVERSE LOCK |
1 | discontinued |
| 43 | 94569M |
ПАЛЕЦ В СБОРЕ Штифт запирания наклона PIN ASSEMBLY Tilt Lock |
1 | |
| 44 | 82857M |
ПЛАСТИНА Стопор ПЛАСТИНА PLATE Stopper PLATE |
1 | discontinued |
| 45 | 82144M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 46 | 82330M |
КОЛЬЦО Защелка RING Snap |
1 | discontinued |
| 47 | 82070M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 48 | 19113M |
КРОНШТЕЙН РУЛЕВОЙ МЕХАНИЗМ BRACKET STEERING |
1 | discontinued |
| 48 | 81138M |
КРОНШТЕЙН РУЛЕВОЙ МЕХАНИЗМ BRACKET STEERING |
1 | superseded |
| 49 | 84830M |
БОЛТ BOLT |
4 | discontinued |
| 5 | 80633M |
ПЛАСТИНА ТРЕНИЕ PLATE FRICITON |
1 | discontinued |
| 50 | 19111M |
ПЛАСТИНА КРОНШТЕЙН ФИКСАТОРА [M-030662, ML-329959, E-108559, EL-418520] & Up PLATE CLAMP BRACKET [M-030662, ML-329959, E-108559, EL-418520] & Up |
1 | discontinued |
| 51 | 19112M |
ВТУЛКА BUSHING |
2 | discontinued |
| 52 | 815007M |
ПРУЖИНА КОНИЧЕСК. ВРУЧНУЮ SPRING CONICAL MANUAL |
1 | discontinued |
| 53 | 95552M |
ШТИФТ ВРУЧНУЮ PIN MANUAL |
2 | discontinued |
| 54 | 95553M |
ПРУЖИНА ВРУЧНУЮ SPRING MANUAL |
2 | discontinued |
| 55 | 95554M |
БОЛТ ВРУЧНУЮ BOLT MANUAL |
2 | discontinued |
| 56 | 11932M |
КРЫШКА ВРУЧНУЮ COVER MANUAL |
1 | discontinued |
| 57 | 95551M |
РЫЧАГ ПРИВОД ДЛЯ ПЛАВАНИЯ НА МЕЛКОВОДЬЕ ВРУЧНУЮ LEVER SHALLOW WATER DRIVE MANUAL |
1 | discontinued |
| 6 | 96382M |
ВИНТ SCREW |
1 | discontinued |
| 7 | 82217M |
ШАЙБА WASHER |
1 | discontinued |
| 8 | 84833M |
ВАЛ ШАРНИР РУЛЕВОГО МЕХАНИЗМА SHAFT STEERING PIVOT |
1 | discontinued |
| 9 | 82368M |
ШТИФТ ШТИФТ PIN DOWEL |
2 | discontinued |
