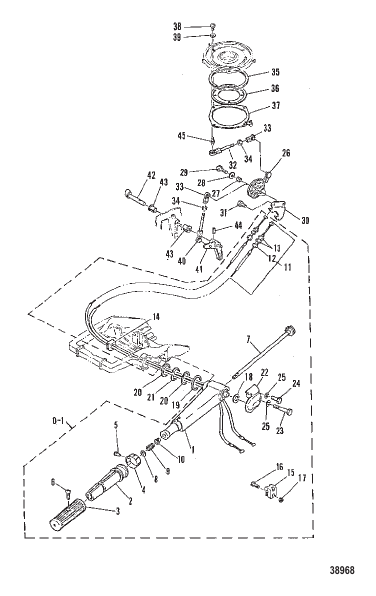

STEERING HANDLE AND THROTTLE CONTROL
Parts (51)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 95420M |
РУКОЯТКА В СБОРЕ Рулевой механизм HANDLE ASSEMBLY Steering |
1 | discontinued |
| 1 | 96664M |
РУКОЯТКА HANDLE |
1 | discontinued |
| 10 | 81945M |
ВТУЛКА BUSHING |
1 | discontinued |
| 11 | 41892M |
КАБЕЛЬ В СБОРЕ Дроссельная заслонка CABLE ASSEMBLY Throttle |
2 | discontinued |
| 12 | 815139M |
БОЛТ [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up BOLT [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up |
1 | discontinued |
| 12 | 81747M |
БОЛТ [M-033627, ML-332851, MUL-700270, E-109304, EL-420574] & Below BOLT [M-033627, ML-332851, MUL-700270, E-109304, EL-420574] & Below |
1 | superseded |
| 13 | 84765M |
ГАЙКА NUT |
2 | superseded |
| 14 | 82064M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 15 | 82895M |
ФРИКЦИОННАЯ КОЛОДКА FRICTION PIECE |
1 | discontinued |
| 16 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
1 | |
| 17 | 83056M |
ГАЙКА NUT |
1 | discontinued |
| 18 | 82119M |
ПРОСТАВКА SPACER |
1 | discontinued |
| 19 | 81861M |
ПРОСТАВКА SPACER |
1 | discontinued |
| 2 | 81585M |
РУКОЯТКА РОТАЦИЯ GRIP TWIST |
1 | discontinued |
| 20 | 84850M |
ШАЙБА WASHER |
2 | discontinued |
| 21 | 84851M |
ШАЙБА ВОЛНА WASHER WAVE |
1 | discontinued |
| 22 | 84852M |
ФИКСАТОР РУКОЯТКА РУЛЕВОГО МЕХАНИЗМА RETAINER STEERING HANDLE |
1 | discontinued |
| 23 | 84931M |
БОЛТ BOLT |
1 | discontinued |
| 24 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
1 | |
| 25 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 26 | 84858M |
РЫЧАГ УПРАВЛЕНИЕ МАГНЕТО LEVER MAGNETO CONTROL |
1 | discontinued |
| 27 | 83310M |
ВТУЛКА COLLAR |
1 | discontinued |
| 28 | 81969M |
ШАЙБА WASHER |
1 | discontinued |
| 29 | 82405M |
БОЛТ BOLT |
1 | discontinued |
| 3 | 95497M |
РУКОЯТКА РЕЗИНА ПОВОРОТНАЯ РУКОЯТКА HANDLE RUBBER TWIST GRIP |
1 | superseded |
| 30 | 84859M |
ФИКСАТОР ТРОС ГАЗА RETAINER THROTTLE CABLE |
1 | discontinued |
| 31 | 84303M |
БОЛТ BOLT |
1 | superseded |
| 32 | 84860M |
ШТОК УПРАВЛЕНИЕ МАГНЕТО ROD MAGNETO CONTROL |
1 | superseded |
| 33 | 16715M |
СОЕДИНЕНИЕ КОНЦЕВАЯ ЧАСТЬ ТЯГИ JOINT ROD END |
2 | |
| 34 | 82378M |
ГАЙКА NUT |
2 | superseded |
| 35 | 83566M |
ФИКСАТОР ОСНОВАНИЕ МАГНЕТО RETAINER MAGNETO BASE |
1 | discontinued |
| 36 | 19139M |
ФИКСАТОР ОСНОВАНИЕ МАГНЕТО [M-030662, ML-329959, E-108559, EL-418520] & Up RETAINER MAGNETO BASE [M-030662, ML-329959, E-108559, EL-418520] & Up |
1 | discontinued |
| 36 | 84861M |
ФИКСАТОР ОСНОВАНИЕ МАГНЕТО [M-030661, ML-329958, E-108558, EL-418519] & Below RETAINER MAGNETO BASE [M-030661, ML-329958, E-108558, EL-418519] & Below |
1 | superseded |
| 37 | 83569M |
ПЛАСТИНА БАЗА PLATE BASE |
1 | discontinued |
| 38 | 14232M |
ВИНТ SCREW |
4 | discontinued |
| 39 | 82211M |
ШАЙБА WASHER |
4 | discontinued |
| 4 | 97137M |
ИНДИКАТОР ДРОССЕЛЬНАЯ ЗАСЛОНКА INDICATOR THROTTLE |
1 | discontinued |
| 40 | 14238M |
СОЕДИНЕНИЕ JOINT |
1 | discontinued |
| 40 | 84862M |
СОЕДИНЕНИЕ JOINT |
1 | superseded |
| 41 | 94646M |
РЫЧАГ УПРАВЛЕНИЕ ГАЗОМ (ЭЛЕКТРИЧ.) LEVER THROTTLE CONTROL (ELECTRIC) |
1 | discontinued |
| 41 | 97138M |
РЫЧАГ УПРАВЛЕНИЕ ГАЗОМ (РУЧНОЙ) LEVER THROTTLE CONTROL (MANUAL) |
1 | discontinued |
| 42 | 81134M |
ВАЛ УПРАВЛЕНИЕ ГАЗОМ SHAFT THROTTLE CONTROL |
1 | discontinued |
| 43 | 81946M |
ВТУЛКА BUSHING |
2 | discontinued |
| 44 | 82156M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 45 | 84305M |
СОЕДИНЕНИЕ ШАРИК [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up JOINT BALL [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up |
1 | discontinued |
| 5 | 81907M |
ЗАКЛЕПКА RIVET |
1 | discontinued |
| 6 | 18847M |
ВИНТ [M-030662, ML-329959, E-108559, EL-418520] & Up SCREW [M-030662, ML-329959, E-108559, EL-418520] & Up |
1 | superseded |
| 6 | 84300M |
ВИНТ [M-030661, ML-329958, E-108558, EL-418519] & Below SCREW [M-030661, ML-329958, E-108558, EL-418519] & Below |
1 | superseded |
| 7 | 84856M |
РЫЧАГ ДРОССЕЛЬНАЯ ЗАСЛОНКА LEVER THROTTLE |
1 | |
| 8 | 82220M |
ШАЙБА WASHER |
1 | discontinued |
| 9 | 82095M |
ПРУЖИНА СЖАТИЕ SPRING COMPRESSION |
1 | discontinued |
