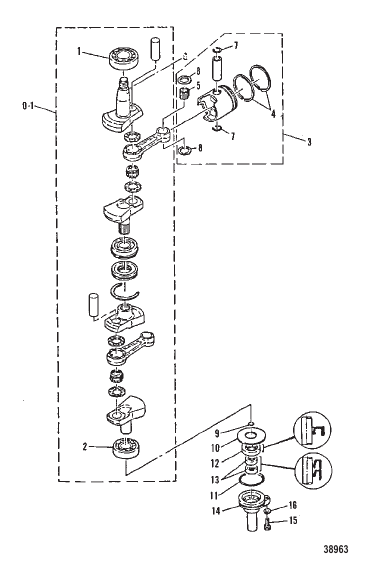

CRANKSHAFT AND PISTON
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 9068M |
КОЛЕНЧАТЫЙ ВАЛ В СБОРЕ CRANKSHAFT ASSEMBLY |
1 | discontinued |
| - | 96658M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 96659M |
ПОДШИПНИК ВЕРХНЯЯ ЧАСТЬ BEARING UPPER |
1 | superseded |
| 10 | 81842M |
ПРОСТАВКА SPACER |
1 | discontinued |
| 11 | 84089M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 12 | 19133M |
УПЛОТНЕНИЕ Масло НИЖНЯЯ ЧАСТЬ [M-030662, ML-329959, E-108559, EL-418520] & Up SEAL Oil LOWER [M-030662, ML-329959, E-108559, EL-418520] & Up |
1 | discontinued |
| 12 | 16714M |
УПЛОТНЕНИЕ Масло НИЖНЯЯ ЧАСТЬ [M-030661, ML-329958, E-108558, EL-418519] & Below SEAL Oil LOWER [M-030661, ML-329958, E-108558, EL-418519] & Below |
1 | superseded |
| 13 | 18972M |
УПЛОТНЕНИЕ Масло НИЖНЯЯ ЧАСТЬ [M-030662, ML-329959, E-108559, EL-418520] & Up SEAL Oil LOWER [M-030662, ML-329959, E-108559, EL-418520] & Up |
1 | superseded |
| 13 | 83347M |
УПЛОТНЕНИЕ Масло НИЖНЯЯ ЧАСТЬ [M-030661, ML-329958, E-108558, EL-418519] & Below SEAL Oil LOWER [M-030661, ML-329958, E-108558, EL-418519] & Below |
2 | discontinued |
| 14 | 18973M |
КОРПУС НИЖНИЙ МАСЛЯНЫЙ УПЛОТНИТЕЛЬ [M-030662, ML-329959, E-108559, EL-418520] & Up HOUSING LOWER OIL SEAL [M-030662, ML-329959, E-108559, EL-418520] & Up |
1 | superseded |
| 14 | 84753M |
КОРПУС НИЖНИЙ МАСЛЯНЫЙ УПЛОТНИТЕЛЬ [M-030661, ML-329958, E-108558, EL-418519] & Below HOUSING LOWER OIL SEAL [M-030661, ML-329958, E-108558, EL-418519] & Below |
1 | superseded |
| 15 | 94526M |
БОЛТ BOLT |
1 | discontinued |
| 16 | 82214M |
ШАЙБА WASHER |
1 | discontinued |
| 2 | 18971M |
ПОДШИПНИК НИЖНЯЯ ЧАСТЬ [M-030662, ML-329959, E-108559, EL-418520] & Up BEARING LOWER [M-030662, ML-329959, E-108559, EL-418520] & Up |
1 | superseded |
| 2 | 82307M |
ПОДШИПНИК НИЖНЯЯ ЧАСТЬ [M-030661, ML-329958, E-108558, EL-418519] & Below BEARING LOWER [M-030661, ML-329958, E-108558, EL-418519] & Below |
1 | superseded |
| 3 | 8484M |
ПОРШЕНЬ В СБОРЕ (СТАНДАРТ) PISTON ASSEMBLY (STANDARD) |
2 | discontinued |
| 3 | 8485M |
ПОРШЕНЬ В СБОРЕ (1-Й БОЛЬШОЙ РАЗМЕР 72.25 ММ) PISTON ASSEMBLY (1ST OVERSIZE 72.25MM) |
AR | superseded |
| 3 | 8486M |
ПОРШЕНЬ В СБОРЕ (2-Й БОЛЬШОЙ РАЗМЕР 72.50 ММ) PISTON ASSEMBLY (2ND OVERSIZE 72.50MM) |
AR | superseded |
| 4 | 14235M |
НАБОР КОЛЕЦ Поршень (СТАНДАРТ) RING SET Piston (STANDARD) |
2 | superseded |
| 4 | 84747M |
НАБОР КОЛЕЦ Поршень (1-Й БОЛЬШОЙ РАЗМЕР 72.25 ММ) RING SET Piston (1ST OVERSIZE 72.25MM) |
AR | superseded |
| 4 | 14236M |
НАБОР КОЛЕЦ Поршень (2-Й БОЛЬШОЙ РАЗМЕР 72.50 ММ) RING SET Piston (2ND OVERSIZE 72.50MM) |
AR | superseded |
| 5 | 84452M |
ПОДШИПНИК ИГЛА BEARING NEDDLE |
68 | discontinued |
| 7 | 81264M |
ЗАЖИМ ПОРШНЕВОЙ ПАЛЕЦ CLIP PISTON PIN |
4 | discontinued |
| 8 | 84750M |
ШАЙБА WASHER |
4 | discontinued |
| 9 | 82268M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
