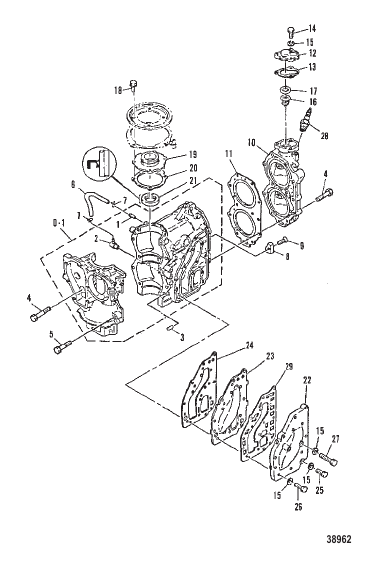

CRANKCASE AND CYLINDER HEAD
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 9371M |
КАРТЕР В СБОРЕ CRANKCASE ASSEMBLY |
1 | discontinued |
| - | 95678M |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | discontinued |
| - | 96658M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 80122M |
ФИТИНГ СЛИВ FITTING DRAIN |
1 | discontinued |
| 10 | 7194M |
ГОЛОВКА ЦИЛИНДРА CYLINDER HEAD |
1 | discontinued |
| 11 | 19138M |
ПРОКЛАДКА ГОЛОВКА ЦИЛИНДРА [M-030662, ML-329959, E-108559, EL-418520] & Up GASKET CYLINDER HEAD [M-030662, ML-329959, E-108559, EL-418520] & Up |
1 | superseded |
| 11 | 84733M |
ПРОКЛАДКА ГОЛОВКА ЦИЛИНДРА [M-030661, ML-329958, E-108558, EL-418519] & Below GASKET CYLINDER HEAD [M-030661, ML-329958, E-108558, EL-418519] & Below |
1 | superseded |
| 12 | 81030M |
КРЫШКА ТЕРМОСТАТ COVER THERMOSTAT |
1 | discontinued |
| 13 | 81031M |
ПРОКЛАДКА КРЫШКА GASKET COVER |
1 | superseded |
| 14 | 83539M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
3 | superseded |
| 15 | 82214M |
ШАЙБА WASHER |
18 | discontinued |
| 16 | 95679M |
ТЕРМОСТАТ THERMOSTAT |
1 | |
| 17 | 81835M |
ШАЙБА WASHER |
1 | |
| 18 | 84735M |
БОЛТ С ШАЙБОЙ BOLT WITH WASHER |
4 | discontinued |
| 19 | 84736M |
КОРПУС ВЕРХНИЙ МАСЛЯНЫЙ УПЛОТНИТЕЛЬ HOUSING UPPER OIL SEAL |
1 | discontinued |
| 2 | 80727M |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
1 | discontinued |
| 20 | 84737M |
ПРОКЛАДКА КОРПУС МАСЛЯНОГО УПЛОТНЕНИЯ GASKET OIL SEAL HOUSING |
1 | discontinued |
| 21 | 96655M |
УПЛОТНЕНИЕ Масло ВЕРХНЯЯ ЧАСТЬ SEAL Oil UPPER |
1 | superseded |
| 22 | 95680M |
КРЫШКА Наружное выхлопное отверстие COVER Outer Exhaust |
1 | discontinued |
| 23 | 95681M |
КРЫШКА Внутренняя выхлопная труба COVER Inner Exhaust |
1 | discontinued |
| 24 | 84741M |
ПРОКЛАДКА КРЫШКА ВЫХЛОПНОГО ОТВЕРСТИЯ GASKET EXHAUST COVER |
1 | discontinued |
| 25 | 82405M |
БОЛТ BOLT |
1 | discontinued |
| 26 | 84237M |
БОЛТ BOLT |
12 | superseded |
| 27 | 84931M |
БОЛТ BOLT |
2 | discontinued |
| 28 | 53098 |
СВЕЧА ЗАЖИГАНИЯ SPARK PLUG |
2 | superseded |
| 29 | 96656M |
ПРОКЛАДКА КРЫШКА ВЫХЛОПНОГО ОТВЕРСТИЯ GASKET EXHAUST COVER |
1 | discontinued |
| 3 | 82364M |
ШТИФТ Штифт PIN Dowel |
2 | discontinued |
| 4 | 41885M |
БОЛТ С ШАЙБОЙ BOLT WITH WASHER |
13 | discontinued |
| 5 | 41884M |
БОЛТ (M8 x 55) С ШАЙБОЙ BOLT (M8 x 55) WITH WASHER |
8 | superseded |
| 6 | 84731M |
РУКАВ HOSE |
1 | superseded |
| 7 | 82046M |
ЗАЖИМ ШЛАНГ CLAMP HOSE |
2 | discontinued |
| 8 | 84732M |
АНОД ANODE |
1 | discontinued |
| 9 | 95209M |
ВИНТ SCREW |
1 | discontinued |
