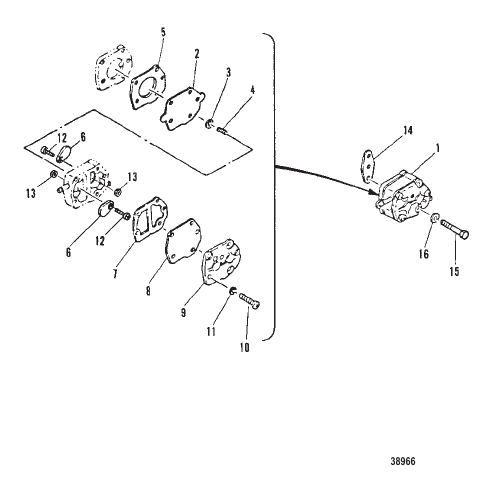

FUEL PUMP
Parts (18)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 96658M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 43113M |
НАСОС В СБОРЕ Топливо PUMP ASSEMBLY Fuel |
1 | superseded |
| 10 | 82522M |
ВИНТ SCREW |
3 | discontinued |
| 11 | 82208M |
ШАЙБА WASHER |
3 | superseded |
| 12 | 41889M |
ВИНТ (M3 x 5) SCREW (M3 x 5) |
2 | discontinued |
| 13 | 82537M |
ГАЙКА NUT |
2 | discontinued |
| 14 | 80757M |
ПРОКЛАДКА ТОПЛИВНЫЙ НАСОС GASKET FUEL PUMP |
1 | superseded |
| 15 | 82428M |
БОЛТ BOLT |
2 | superseded |
| 16 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 2 | 80606M |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 3 | 80611M |
ПЛАСТИНА ПРУЖИНА PLATE SPRING |
1 | discontinued |
| 4 | 80610M |
ПРУЖИНА SPRING |
1 | discontinued |
| 5 | 80613M |
ПРОКЛАДКА КОРПУС К ОСНОВАНИЮ GASKET BODY TO BASE |
1 | superseded |
| 6 | 41888M |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
2 | |
| 7 | 80614M |
ПРОКЛАДКА КРЫШКА К КОРПУСУ [M-030662, ML-329959, E-108559, EL-418520] & Up GASKET COVER TO BODY [M-030662, ML-329959, E-108559, EL-418520] & Up |
1 | superseded |
| 7 | 43095M |
ПРОКЛАДКА КРЫШКА К КОРПУСУ [M-030661, ML-329958, E-108558, EL-418519] & Below GASKET COVER TO BODY [M-030661, ML-329958, E-108558, EL-418519] & Below |
1 | discontinued |
| 8 | 84141M |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 9 | 43096M |
КРЫШКА COVER |
1 | superseded |
