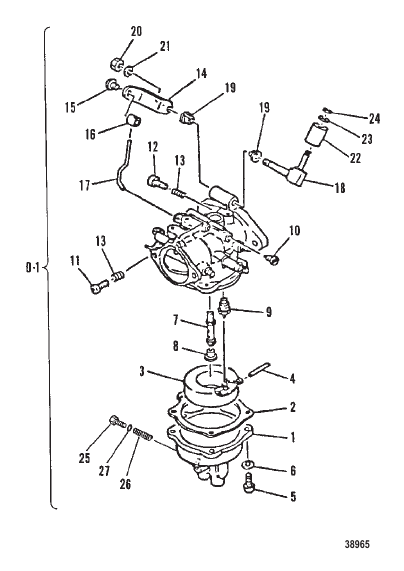

CARBURETOR
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 9516M |
КАРБЮРАТОР В СБОРЕ [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up CARBURETOR ASSEMBLY [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up |
1 | superseded |
| - | 7841M |
КАРБЮРАТОР В СБОРЕ [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235] & Below CARBURETOR ASSEMBLY [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235] & Below |
1 | discontinued |
| - | 84773M |
РЕМОНТНЫЙ КОМПЛЕКТ Карбюратор REPAIR KIT Carburetor |
1 | superseded |
| - | 96658M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 14237M |
ПОПЛАВКОВАЯ КАМЕРА [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up FLOAT BOWL [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up |
1 | discontinued |
| 1 | 84764M |
ПОПЛАВКОВАЯ КАМЕРА [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235] & Below FLOAT BOWL [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235] & Below |
1 | discontinued |
| 10 | 95550M |
ВОДОМЕТНЫЙ ПИЛОТНЫЙ КЛАПАН (№54) [M-028478, ML-327903, MUL601456, E-107929, EL-417075, EUL-620256] & Up JET PILOT ( #54) [M-028478, ML-327903, MUL601456, E-107929, EL-417075, EUL-620256] & Up |
1 | discontinued |
| 10 | 80577M |
ВОДОМЕТНЫЙ ПИЛОТНЫЙ КЛАПАН (№54) [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below JET PILOT (#54) [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below |
1 | superseded |
| 10 | 80578M |
ВОДОМЕТНЫЙ ПИЛОТНЫЙ КЛАПАН (№60) [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235] & Below JET PILOT (#60) [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235] & Below |
1 | discontinued |
| 11 | 82623M |
ВИНТ СКОРОСТЬ ХОЛОСТОГО ХОДА SCREW IDLE SPEED |
1 | superseded |
| 12 | 80573M |
ВИНТ СМЕСЬ ДЛЯ ХОЛОСТОГО ХОДА SCREW IDLE MIXTURE |
1 | discontinued |
| 13 | 80329M |
ПРУЖИНА SPRING |
2 | superseded |
| 14 | 84768M |
РЫЧАГ Тяга дроссельной заслонки LEVER Throttle Rod |
1 | discontinued |
| 15 | 80091M |
ВИНТ SCREW |
1 | discontinued |
| 16 | 84770M |
ФИКСАТОР ТЯГА ДРОССЕЛЬНОЙ ЗАСЛОНКИ RETAINER THROTTLE ROD |
1 | discontinued |
| 17 | 84771M |
ШТОК ДРОССЕЛЬНАЯ ЗАСЛОНКА ROD THROTTLE |
1 | discontinued |
| 18 | 84772M |
ARM Дроссельная заслонка ARM Throttle |
1 | superseded |
| 19 | 81941M |
ВТУЛКА BUSHING |
2 | discontinued |
| 2 | 80590M |
ПРОКЛАДКА ПОПЛАВКОВАЯ КАМЕРА GASKET FLOAT BOWL |
1 | |
| 20 | 82379M |
ГАЙКА NUT |
1 | superseded |
| 21 | 82208M |
ШАЙБА WASHER |
1 | superseded |
| 22 | 84454M |
ВТУЛКА РЫЧАГ ГАЗА BUSHING THROTTLE ARM |
1 | discontinued |
| 23 | 82209M |
ШАЙБА WASHER |
1 | discontinued |
| 24 | 82328M |
КОЛЬЦО Защелка RING Snap |
1 | discontinued |
| 25 | 80349M |
ВИНТ СЛИВ [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up SCREW DRAIN [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up |
1 | discontinued |
| 26 | 80331M |
ПРУЖИНА СЛИВНОЙ КЛАПАН [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up SPRING DRAIN VALVE [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up |
1 | discontinued |
| 27 | 80350M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up O-RING [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up |
1 | discontinued |
| 3 | 80591M |
ПОПЛАВОК FLOAT |
1 | discontinued |
| 4 | 11794M |
ШТИФТ PIN |
1 | discontinued |
| 5 | 82515M |
ВИНТ SCREW |
4 | discontinued |
| 6 | 82206M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
4 | discontinued |
| 7 | 84766M |
ШТУЦЕР ГЛАВНЫЙ NOZZLE MAIN |
1 | discontinued |
| 8 | 84767M |
ВОДОМЕТНЫЙ ГЛАВН. (№135) JET MAIN ( # 135) |
1 | discontinued |
| 9 | 80593M |
КОМПЛЕКТ КЛАПАНОВ / СЕДЕЛ Впуск VALVE/SEAT KIT Inlet |
1 |
