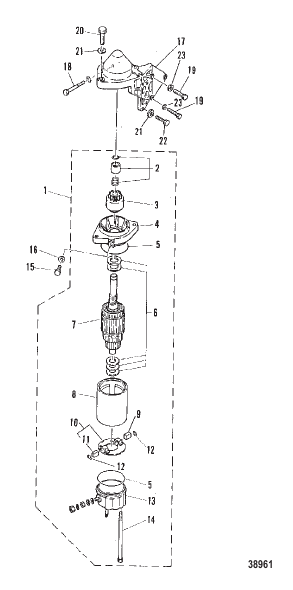

ELECTRIC START MOTOR
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 97693M |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | discontinued |
| 10 | 96367M |
ДЕРЖАТЕЛЬ Щетка HOLDER Brush |
1 | discontinued |
| 11 | 96369M |
ЩЕТКА ОТРИЦАТЕЛЬНЫЙ (-) BRUSH NEGATIVE (-) |
1 | discontinued |
| 12 | 84927M |
ПРУЖИНА ЩЕТКА SPRING BRUSH |
2 | discontinued |
| 13 | 96370M |
КРЫШКА ЗАДНИЙ COVER REAR |
1 | discontinued |
| 14 | 84929M |
БОЛТ BOLT |
2 | discontinued |
| 15 | 82436M |
БОЛТ BOLT |
1 | discontinued |
| 16 | 82217M |
ШАЙБА WASHER |
1 | discontinued |
| 17 | 84930M |
КРОНШТЕЙН КРЕПЛЕНИЕ СТАРТЕРА BRACKET MOTOR MOUNTING |
1 | discontinued |
| 18 | 84931M |
БОЛТ [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up BOLT [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up |
1 | discontinued |
| 18 | 84657M |
БОЛТ [M-033627, ML-332851, MUL-700270, E-109304, EL-420574] & Below BOLT [M-033627, ML-332851, MUL-700270, E-109304, EL-420574] & Below |
1 | discontinued |
| 19 | 84237M |
БОЛТ BOLT |
2 | superseded |
| 2 | 96360M |
КОМПЛЕКТ СТОПОРА Шестерня STOPPER KIT Pinion |
1 | discontinued |
| 20 | 82441M |
БОЛТ BOLT |
2 | discontinued |
| 21 | 82217M |
ШАЙБА WASHER |
3 | discontinued |
| 22 | 82439M |
БОЛТ BOLT |
1 | discontinued |
| 23 | 82214M |
ШАЙБА WASHER |
3 | discontinued |
| 3 | 97694M |
ШЕСТЕРНЯ PINION |
1 | superseded |
| 4 | 96362M |
КРЫШКА ПЕРЕДНИЙ COVER FRONT |
1 | discontinued |
| 5 | 96363M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | discontinued |
| 6 | 96364M |
КОМПЛЕКТ ШАЙБ WASHER KIT |
1 | discontinued |
| 7 | 96365M |
ЯКОРЬ ARMATURE |
1 | discontinued |
| 8 | 96366M |
СТАТОР STATOR |
1 | discontinued |
| 9 | 96368M |
ЩЕТКА ПОЛОЖИТЕЛЬНЫЙ (+) BRUSH POSITIVE (+) |
1 | discontinued |
