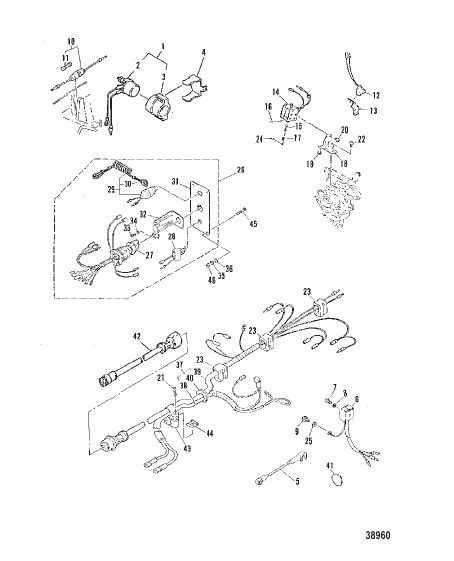

ELECTRIC START COMPONENTS
Parts (53)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 96356M |
ЭЛЕКТРОМАГНИТНЫЙ КЛАПАН В СБОРЕ Стартер SOLENOID ASSEMBLY Starter |
1 | superseded |
| 10 | 84937M |
ПРЕДОХРАНИТЕЛЬ В СБОРЕ FUSE ASSEMBLY |
1 | discontinued |
| 11 | 81522M |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ (12В – 20А) FUSE (12V-20A) |
1 | discontinued |
| 12 | 97684M |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Запуск двигателя на нейтрали SWITCH ASSEMBLY Neutral Start |
1 | discontinued |
| 13 | 84939M |
ПЛАСТИНА ПЕРЕКЛЮЧАТЕЛЬ И УСТАНОВКА БЛОКИРОВКИ PLATE SWITCH AND LOCKOUT MOUNTING |
1 | discontinued |
| 14 | 84940M |
ЭЛЕКТРОМАГНИТ Обогатитель SOLENOID Choke |
1 | discontinued |
| 15 | 84411M |
КРЮК ПРОВОД HOOK WIRE |
1 | discontinued |
| 16 | 82145M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 17 | 81667M |
ПРОВОД НАТЯЖЕНИЕ WIRE PULL |
1 | discontinued |
| 18 | 84941M |
ПЛАСТИНА КРЕПЛЕНИЕ ЭЛЕКТРОМАГНИТА PLATE SOLENOID MOUNTING |
1 | discontinued |
| 19 | 82060M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 2 | 95642M |
ЭЛЕКТРОМАГНИТ SOLENOID |
1 | superseded |
| 20 | 82512M |
ВИНТ SCREW |
4 | discontinued |
| 21 | 84709M |
ВИНТ SCREW |
1 | discontinued |
| 22 | 14232M |
ВИНТ SCREW |
2 | discontinued |
| 23 | 84876M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
3 | discontinued |
| 24 | 82258M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 25 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 26 | 18975A1 |
ПАНЕЛЬ ПЕРЕКЛЮЧАТЕЛЯ В СБОРЕ SWITH PANEL ASSEMBLY |
1 | discontinued |
| 27 | 95645M |
ЗАМОК ЗАЖИГАНИЯ KEY SWITCH |
1 | discontinued |
| 28 | 84944M |
ПЕРЕКЛЮЧАТЕЛЬ Обогатитель SWITCH Choke |
1 | discontinued |
| 29 | 16710M |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Стоп [M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256] & Up SWITCH ASSEMBLY Stop [M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256] & Up |
1 | discontinued |
| 29 | 97682M |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Стоп [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below SWITCH ASSEMBLY Stop [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below |
1 | discontinued |
| 3 | 95643M |
КРОНШТЕЙН BRACKET |
1 | superseded |
| 30 | 97756M |
СТОПОР STOPPER |
1 | |
| 31 | 16711M |
ПАНЕЛЬ [M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256] & Up PANEL [M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256] & Up |
1 | discontinued |
| 31 | 42435M |
ПАНЕЛЬ [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below PANEL [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below |
1 | discontinued |
| 32 | 16712M |
КРОНШТЕЙН [M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256] & Up BRACKET [M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256] & Up |
1 | discontinued |
| 32 | 81537M |
КРОНШТЕЙН [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below BRACKET [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below |
1 | discontinued |
| 33 | 82487M |
ВИНТ [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up SCREW [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up |
1 | superseded |
| 34 | 82184M |
СТОПОРНАЯ ШАЙБА ПРУЖИНА [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up LOCKWASHER SPRING [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up |
1 | superseded |
| 35 | 82208M |
ШАЙБА WASHER |
4 | superseded |
| 36 | 82211M |
ШАЙБА WASHER |
4 | discontinued |
| 37 | 95677M |
ЖГУТ ПРОВОДОВ В СБОРЕ Проводка со стороны двигателя HARNESS ASSEMBLY Engine Wiring |
1 | discontinued |
| 38 | 97781M |
ПРОВОД В СБОРЕ АККУМУЛЯТОР WIRE ASSEMBLY BATTERY |
1 | superseded |
| 39 | 95647M |
ПРОВОД В СБОРЕ ЗАЖИГАНИЕ WIRE ASSEMBLY IGNITION |
1 | discontinued |
| 4 | 84935M |
ПЛАСТИНА КРЕПЛЕНИЕ ЭЛЕКТРОМАГНИТА PLATE SOLENOID MOUNTING |
1 | discontinued |
| 40 | 84950M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 41 | 82066M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 42 | 18968M |
УДЛИНИТЕЛЬ ЖГУТ ПРОВОДОВ (5 М) [M-030662, ML-329959, E-108559, EL-418520] & Up EXTENSION WIRE HARNESS (5M) [M-030662, ML-329959, E-108559, EL-418520] & Up |
1 | discontinued |
| 42 | 84711M |
УДЛИНИТЕЛЬ ЖГУТ ПРОВОДОВ (5 М) [M-030661, ML-329958, E-108558, EL-418519] & Below EXTENSION WIRE HARNESS (5M) [M-030661, ML-329958, E-108558, EL-418519] & Below |
1 | discontinued |
| 43 | 97772M |
ЗАЖИМ CLAMP |
1 | discontinued |
| 44 | 84708M |
ПЛАСТИНА PLATE |
1 | discontinued |
| 45 | 16713M |
ВИНТ [M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256] & Up SCREW [M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256] & Up |
4 | superseded |
| 45 | 80164M |
ВИНТ [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below SCREW [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below |
4 | discontinued |
| 46 | 82388M |
ГАЙКА (M5) [M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256] & Up NUT (M5) [M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256] & Up |
4 | |
| 46 | 82377M |
ГАЙКА [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below NUT [M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255] & Below |
4 | discontinued |
| 5 | 84936M |
ПРОВОД ЭЛЕКТРОМАГНИТ [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up WIRE SOLENOID [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up |
1 | discontinued |
| 5 | 97133M |
ПРОВОД ЭЛЕКТРОМАГНИТ [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235] & Below WIRE SOLENOID [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235] & Below |
1 | discontinued |
| 6 | 81652M |
ВЫПРЯМИТЕЛЬ RECTIFIER |
1 | superseded |
| 7 | 82521M |
ВИНТ SCREW |
1 | superseded |
| 8 | 82211M |
ШАЙБА WASHER |
1 | discontinued |
| 9 | 84303M |
БОЛТ BOLT |
1 | superseded |
