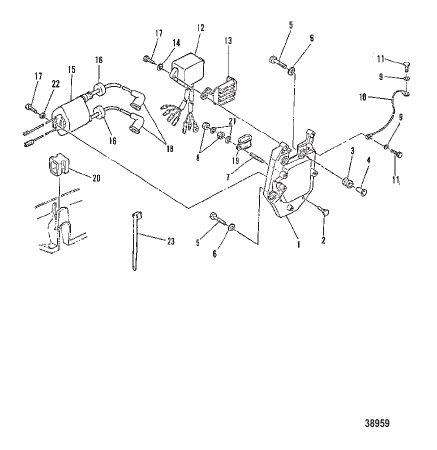

C.D.I. IGNITION COMPONENTS
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 84868M |
КРОНШТЕЙН C.D.I. КРЕПЛЕНИЕ БЛОКА BRACKET C.D.I. UNIT MOUNTING |
1 | discontinued |
| 10 | 84871M |
ПРОВОД ЗАЗЕМЛЕНИЕ WIRE GROUND |
1 | discontinued |
| 11 | 84303M |
БОЛТ BOLT |
2 | superseded |
| 12 | 84872M |
БЛОК CDI В СБОРЕ CDI UNIT ASSEMBLY |
1 | superseded |
| 13 | 84873M |
КРОНШТЕЙН C.D.I. БЛОК BRACKET C.D.I. UNIT |
1 | discontinued |
| 14 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 15 | 84874M |
КАТУШКА Зажигание COIL Ignition |
1 | superseded |
| 16 | 82069M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
2 | discontinued |
| 17 | 82405M |
БОЛТ BOLT |
2 | discontinued |
| 18 | 815119M |
ПРОБКА Свеча зажигания ШУМОПОГЛОТИТЕЛЬ [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up CAP Spark Plug NOISE SUPPRESSOR [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up |
2 | discontinued |
| 18 | 80935M |
ЗАЩИТНОЕ ПРИСПОСОБЛЕНИЕ ШУМОПОГЛОТИТЕЛЬ [M-033627, ML-332851, MUL-700270, E-109304, EL-420574] & Below PROTECTER NOISE SUPPRESSOR [M-033627, ML-332851, MUL-700270, E-109304, EL-420574] & Below |
2 | superseded |
| 18 | 82788M |
КОЛПАЧОК В СБОРЕ Свеча зажигания CAP ASSEMBLY Spark Plug |
2 | superseded |
| 19 | 96653M |
ЗАЖИМ ПРОВОД CLAMP WIRE |
1 | discontinued |
| 2 | 84869M |
ДЕМПФЕР DAMPER |
1 | discontinued |
| 20 | 84876M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 21 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 22 | 82214M |
ШАЙБА [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up WASHER [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up |
1 | discontinued |
| 23 | 81541M |
БАНДАЖ ШНУР ПЕРЕКЛЮЧАТЕЛЯ [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up BAND SWITCH CORD [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up |
1 | discontinued |
| 3 | 93114M |
ДЕМПФЕР [M-030662, ML-329959, E-108559, EL-418520] & Up DAMPER [M-030662, ML-329959, E-108559, EL-418520] & Up |
3 | superseded |
| 3 | 81523M |
ДЕМПФЕР [M-030661, ML-329958, E-108558, EL-418519] & Below DAMPER [M-030661, ML-329958, E-108558, EL-418519] & Below |
3 | discontinued |
| 4 | 82851M |
ВТУЛКА BUSHING |
3 | superseded |
| 5 | 82405M |
БОЛТ BOLT |
5 | discontinued |
| 6 | 82979M |
ШАЙБА WASHER |
3 | superseded |
| 7 | 84870M |
ШПИЛЬКА STUD |
1 | discontinued |
| 8 | 82380M |
ГАЙКА NUT |
2 | superseded |
| 9 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
