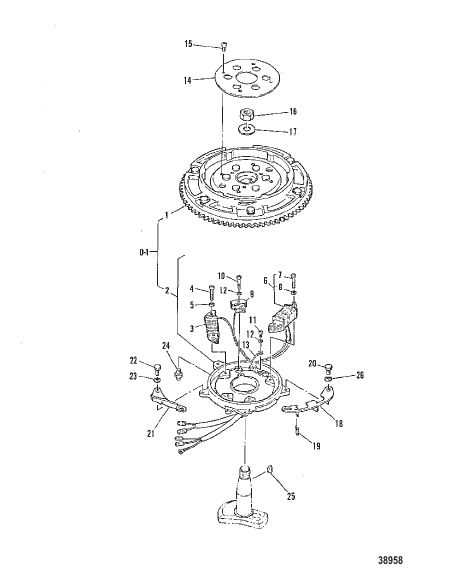

C.D.I. MAGNETO ASSEMBLY
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8926M |
CDI MAGNETO В СБОРЕ (РУЧНАЯ МОДЕЛЬ) CDI MAGNETO ASSEMBLY (MANUAL MODEL) |
1 | superseded |
| - | 8483M |
CDI MAGNETO В СБОРЕ (МОДЕЛЬ С ЭЛЕКТРИЧЕСКИМ СТАРТОМ) CDI MAGNETO ASSEMBLY (ELECTRIC MODEL) |
1 | discontinued |
| 1 | 8482M |
МАХОВИК (МОДЕЛЬ С ЭЛЕКТРИЧЕСКИМ СТАРТОМ) FLYWHEEL (ELECTRIC MODEL) |
1 | discontinued |
| 1 | 8927M |
МАХОВИК (РУЧНАЯ МОДЕЛЬ) FLYWHEEL (MANUAL MODEL) |
1 | superseded |
| 10 | 84882M |
ВИНТ SCREW |
2 | discontinued |
| 11 | 82499M |
ВИНТ SCREW |
1 | discontinued |
| 12 | 82184M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
3 | superseded |
| 13 | 84883M |
ПРОВОД ЗАЗЕМЛЕНИЕ WIRE GROUND |
1 | discontinued |
| 14 | 96649M |
КРЫШКА COVER |
1 | discontinued |
| 15 | 82436M |
БОЛТ BOLT |
3 | discontinued |
| 16 | 96650M |
ГАЙКА (M16) МАХОВИК NUT (M16) FLYWHEEL |
1 | discontinued |
| 17 | 96651M |
ШАЙБА WASHER |
1 | discontinued |
| 18 | 84885M |
СТОП ОСНОВАНИЕ МАГНЕТО STOP MAGNETO BASE |
1 | discontinued |
| 19 | 84886M |
ПРОБКА CAP |
1 | discontinued |
| 2 | 84878M |
БАЗА В СБОРЕ BASE ASSEMBLY |
1 | superseded |
| 20 | 84315M |
БОЛТ BOLT |
2 | superseded |
| 21 | 84887M |
КУЛАЧОК ПЕДАЛЬ УПРАВЛЕНИЯ ГАЗОМ CAM THROTTLE ACCELERATOR |
1 | discontinued |
| 22 | 84313M |
БОЛТ BOLT |
2 | discontinued |
| 23 | 82211M |
ШАЙБА WASHER |
2 | discontinued |
| 24 | 84305M |
СОЕДИНЕНИЕ JOINT |
1 | discontinued |
| 25 | 81915M |
КЛЮЧ МАХОВИК KEY FLYWHEEL |
1 | discontinued |
| 26 | 82214M |
ШАЙБА [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up WASHER [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up |
2 | discontinued |
| 3 | 84879M |
КАТУШКА ЗАЖИГАНИЕ COIL IGNITION |
1 | superseded |
| 4 | 84880M |
ВИНТ SCREW |
2 | superseded |
| 5 | 82186M |
ШАЙБА WASHER |
2 | discontinued |
| 6 | 84881M |
КАТУШКА В СБОРЕ Зарядка (80 Вт) COIL ASSEMBLY Lighting (80W) |
1 | discontinued |
| 7 | 84880M |
ВИНТ SCREW |
2 | superseded |
| 8 | 82186M |
ШАЙБА WASHER |
2 | discontinued |
| 9 | 84877M |
ИМПУЛЬСНЫЙ ГЕНЕРАТОР PULSER |
1 | discontinued |
