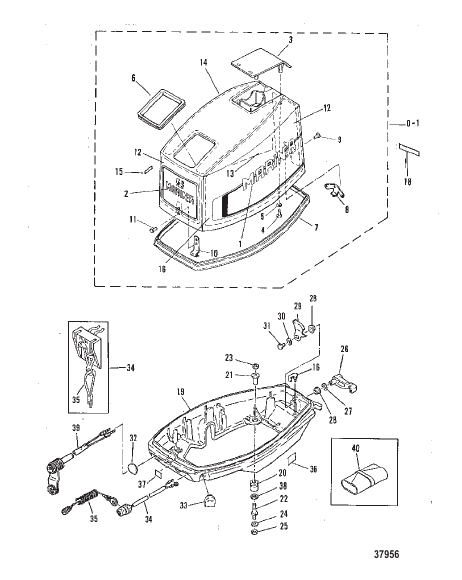

COWLING
Parts (47)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 813272M |
ВЕРХНИЙ КОЖУХ В СБОРЕ (ЭЛЕКТРИЧ.) TOP COWL ASSEMBLY (ELECTRIC) |
1 | discontinued |
| - | 9370M |
ВЕРХНИЙ КОЖУХ В СБОРЕ (РУЧНОЙ) TOP COWL ASSEMBLY (MANUAL) |
1 | superseded |
| 1 | 813273M |
НАБОР НАКЛЕЕК БОКОВОЙ И ЗАДНИЙ (ЭЛЕКТРИЧ.) DECAL SET SIDE AND REAR (ELECTRIC) |
1 | discontinued |
| 1 | 95674M |
НАБОР НАКЛЕЕК БОКОВОЙ И ЗАДНИЙ (РУЧНОЙ) DECAL SET SIDE AND REAR (MANUAL) |
1 | discontinued |
| 10 | 84904M |
КРЮК ПЕРЕДНИЙ HOOK FRONT |
1 | superseded |
| 11 | 83140M |
ЗАКЛЕПКА RIVET |
2 | discontinued |
| 12 | 84323M |
ШУМОПОГЛОТИТЕЛЬ ПЕРЕДНИЙ И ЗАДНИЙ SOUND BLANKET FRONT AND REAR |
2 | discontinued |
| 13 | 83125M |
ШУМОПОГЛОТИТЕЛЬ ПРАВЫЙ И ЛЕВЫЙ БОРТ SOUND BLANKET STARBOARD AND PORT |
1 | discontinued |
| 14 | 84232M |
ШУМОПОГЛОТИТЕЛЬ ВЕРХНЯЯ ЧАСТЬ SOUND BLANKET TOP |
1 | discontinued |
| 15 | 81202M |
НАКЛЕЙКА Индикатор переключения передач DECAL Shift Indicator |
1 | discontinued |
| 16 | 80510M |
ПРОСТАВКА ТРЕНИЕ [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up SPACER FRICTION [M-033628, ML-332852, MUL-700271, E-109305, EL-420575] & Up |
1 | discontinued |
| 17 | 81669M |
КОМПЛЕКТ ИНСТРУМЕНТОВ (ДОП.) TOOL KIT (OPT) |
1 | superseded |
| 18 | 95547M |
НАКЛЕЙКА МОДЕЛЬ 30E [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up DECAL 30E MODEL [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up |
1 | discontinued |
| 18 | 95549M |
НАКЛЕЙКА МОДЕЛЬ 30E [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235] & Below DECAL 30E MODEL [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235] & Below |
1 | superseded |
| 19 | 814530M |
НИЖНИЙ КОЖУХ [M-033628, ML-332852, MUL-700271, E-109305, EL-420757] & Up BOTTOM COWL [M-033628, ML-332852, MUL-700271, E-109305, EL-420757] & Up |
1 | superseded |
| 19 | 9349M |
НИЖНИЙ КОЖУХ [M-033627, ML-332851, MUL-700270, E-109304, EL-420574] & Below BOTTOM COWL [M-033627, ML-332851, MUL-700270, E-109304, EL-420574] & Below |
1 | discontinued |
| 2 | 95675M |
НАКЛЕЙКА ПЕРЕДНИЙ DECAL FRONT |
1 | discontinued |
| 20 | 84910M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | discontinued |
| 21 | 84911M |
ВТУЛКА COLLAR |
4 | discontinued |
| 22 | 95505M |
ШПИЛЬКА [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up STUD [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up |
4 | discontinued |
| 22 | 84912M |
ШПИЛЬКА [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235] & Below STUD [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235] & Below |
4 | superseded |
| 23 | 82383M |
ГАЙКА NUT |
4 | discontinued |
| 24 | 82217M |
ШАЙБА WASHER |
4 | discontinued |
| 25 | 82393M |
ГАЙКА NUT |
4 | superseded |
| 26 | 84913M |
РЫЧАГ ФИКСАТОР КОЖУХА LEVER COWL CLAMP |
1 | discontinued |
| 27 | 81869M |
ШАЙБА ВОЛНА WASHER WAVE |
1 | discontinued |
| 28 | 81949M |
ВТУЛКА BUSHING |
2 | |
| 29 | 84914M |
ЗАЖИМ CLAMP |
1 | discontinued |
| 3 | 95676M |
ЛИТЬЕ ВОЗДУХОВОД MOLDING AIR DUCT |
1 | discontinued |
| 30 | 81794M |
ШАЙБА WASHER |
1 | discontinued |
| 31 | 84315M |
БОЛТ BOLT |
1 | superseded |
| 32 | 83988M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (СМ. ПРИМЕЧАНИЕ) GROMMET (SEE NOTE) |
1 | discontinued |
| 33 | 84915M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | superseded |
| 34 | 14227M |
ВЫКЛЮЧАТЕЛЬ ЗАЖИГАНИЯ С ТРОСОВЫМ ТАЛРЕПОМ В СБОРЕ [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up LANYARD IGNITION SWITCH ASSEMBLY [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up |
1 | superseded |
| 34 | 84916M |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Стоп (СМ. ПРИМЕЧАНИЕ) [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235] & Below SWITCH ASSEMBLY Stop (SEE NOTE) [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235] & Below |
1 | superseded |
| 35 | 97756M |
СТОПОР [M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256] & Up STOPPER [M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256] & Up |
1 | |
| 36 | 42434M |
НАКЛЕЙКА (МОЩНОСТЬ) DECAL (HP) |
1 | discontinued |
| 37 | 95570M |
НАКЛЕЙКА [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235] & Below DECAL [M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235] & Below |
1 | discontinued |
| 38 | 95507M |
ШАЙБА [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up WASHER [M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236] & Up |
4 | discontinued |
| 39 | 99051M |
СОЕДИНИТЕЛЬ ВВОДНЫЙ ПРОВОД [M-030661, ML-329958, E-108558, EL-418519] & Below CONNECTOR LEAD WIRE [M-030661, ML-329958, E-108558, EL-418519] & Below |
1 | discontinued |
| 4 | 84303M |
БОЛТ BOLT |
4 | superseded |
| 40 | 81669M |
КОМПЛЕКТ ИНСТРУМЕНТОВ (ДОП.) TOOL KIT (OPT) |
1 | superseded |
| 5 | 82214M |
ШАЙБА WASHER |
4 | discontinued |
| 6 | 84900M |
УПЛОТНЕНИЕ РЕЗИНА SEAL RUBBER |
1 | discontinued |
| 7 | 84901M |
УПЛОТНЕНИЕ КОЖУХ SEAL COWL |
1 | discontinued |
| 8 | 42433M |
КРЮК ЗАДНИЙ HOOK REAR |
1 | discontinued |
| 9 | 84903M |
ЗАКЛЕПКА RIVET |
3 | discontinued |
